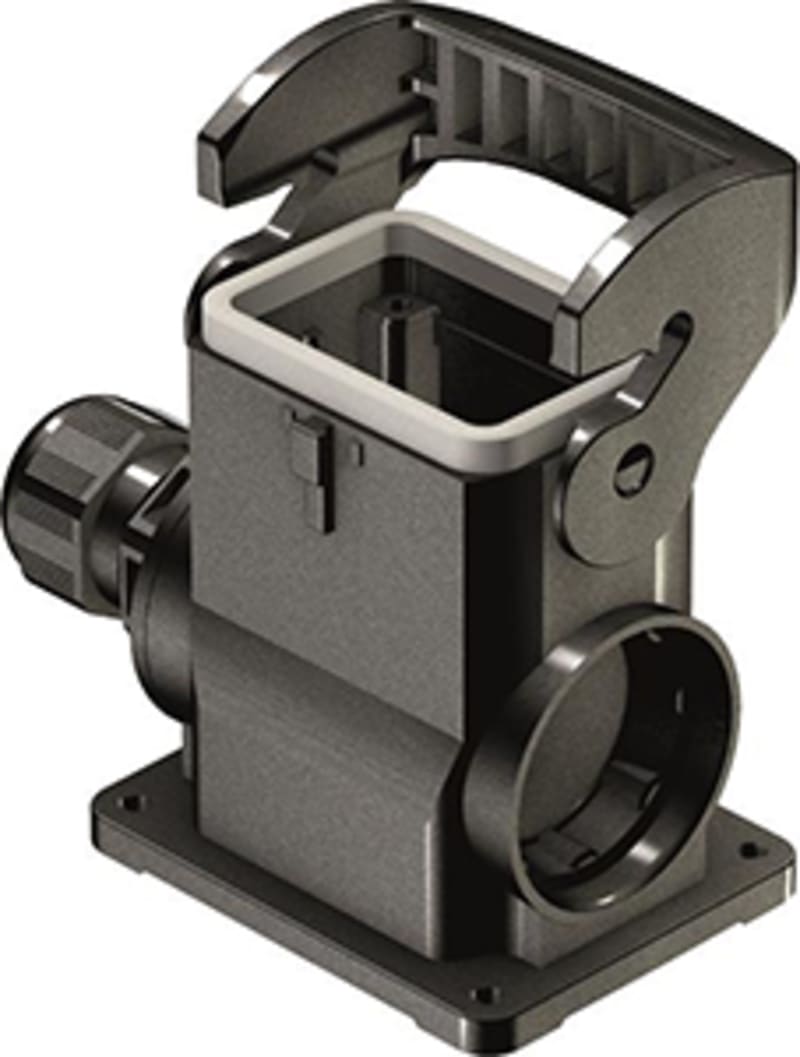

Han-Eco 6B OUTD-HSM1-WITH SL-M32-GLANDED
Pricing
Request a quote
We reply within 24 hours
Product Description
Harting 19433060252 Manufacturer description: Surface mounted housing; With integrated cable gland; Size: 6 B; Single locking lever; Polyamide (PA), Fibre-glass reinforced; Side entry; 1x M32; Material (hood/housing): Polyamide (PA), Fibre-glass reinforced; RAL 9005 (jet black); Material (seal): FPM. Han-Eco 6B Wall-mounted housing, 1xM32, outdoor.
Technical Specifications
- Manufacturer part number (MPN)
- 19433060252
- EAN / GTIN
- 5713140177109
- Sales unit
- pcs
- Category
- Hoods / Housings
- Series of hoods/housings
- Han-Eco® B
- Type of hood/housing
- Surface mounted housing
- Description of hood/housing
- With integrated cable gland
- Locking type
- Single locking lever
- Size
- 6 B
- Version
- Side entry
- Number of cable entries
- 1
- Cable entry
- 1x M32
- Field of application
- Hoods/housings for outdoor applications
- Limiting temperature
- -40 ... +125 °C
- Note on the limiting temperature
- For use as a connector according to IEC 61984.
- Number of relockings
- 500
- Degree of protection acc. to IEC 60529
- IP66
- Clamping range
- 13 ... 21 mm
- Fire protection on railway vehicles
- EN 45545-2 (2020-08) + A1 (2023-10)
- China RoHS
- 50
- RoHS
- compliant with exemption
- REACH SVHC substances
- Yes | Lead
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- Requirement set with Hazard Levels
- R22 (HL 1-2) | R23 (HL 1-3)
- ELV status
- compliant with exemption
- California Proposition 65 substances
- Yes | Lead
- RoHS exemptions
- 6(c): Copper alloy containing up to 4 % lead by weight
- Material (hood/housing)
- Polyamide (PA) | Fibre-glass reinforced
- Colour (hood/housing)
- RAL 9005 (jet black)
- Material (seal)
- FPM
- Colour (seal)
- RAL 7001 (silver-grey)
- Material (locking)
- Polyamide (PA) | Fibre-glass reinforced
- Colour (locking)
- RAL 9005 (jet black)
- Material flammability class acc. to UL 94
- V-0
- Material flammability class acc. to UL 94 (locking levers)
- V-0
- Approvals
- CE
- Specifications
- IEC 61984 | EN 45545-2 Fire protection on railway vehicles
- European customs tariff number
- 85389099
- Packaging size
- 1
- Net weight
- 137 g
- Country of origin
- Germany
- eCl@ss
- 27440202 Shell for industrial connectors
- ETIM
- EC000437
- UNSPSC 24.0
- 39121466
- Width
- 65 mm
- UV resistant
- Yes
- Height
- 88 mm
- Depth
- 124 mm
- With hinged lid
- No
- Housing colour
- Black
- Type of locking
- Single locking lever
- Number of conduit inlets
- 1
- With cable screw gland
- No
- EMC-version
- No
- Corrosion resistant
- No
- Housing material
- Plastic
- Operating temperature
- -40–125 °C
- With distance piece
- No
- With sealing
- Yes
- Type of housing
- Socket case
- Degree of protection (IP), mounted
- IP66
- Material adaptor plate
- Plastic
- Position cable feed
- Sideways
- Position of the shackle
- Base unit
- Mounting method of the cable gland
- Metric
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 5713140177109
- SAP 1200592386
- Code 82971907
Product Documentation
More from Harting
Harting
Han B Hood Top Entry HC 4 Pegs M32
19300100427
Harting
Han 16A-HSM-HC 1 Lever 2XM20
19200160290
Harting
Han 16 ES-M insert (09330162616)
Harting

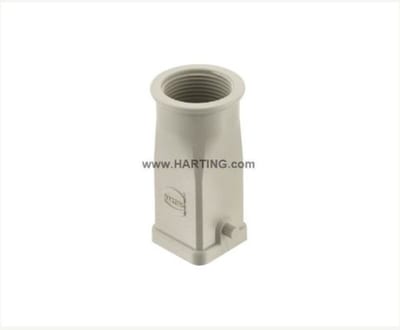

Han 3A-HTE-M25 PC grey
19200030430
Harting
Han DDD module, crimp male
09140173001
Harting

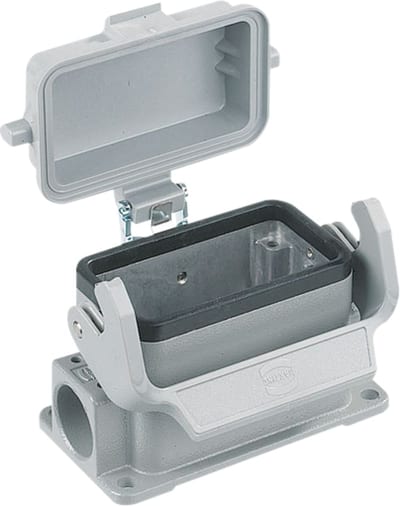

Han B Base Surface LC 1 Lever
19300061255
Harting

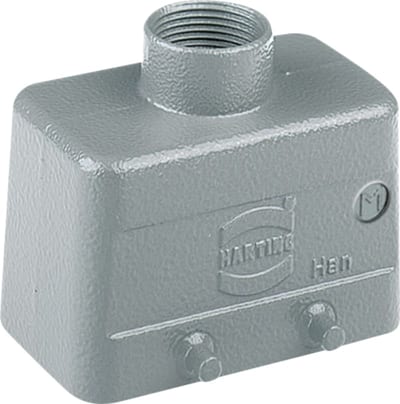

Han 10B-HTE-LC-4 PEGS-M25
19300101421
Harting

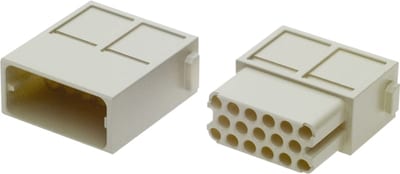

Han DDD module, crimp female
