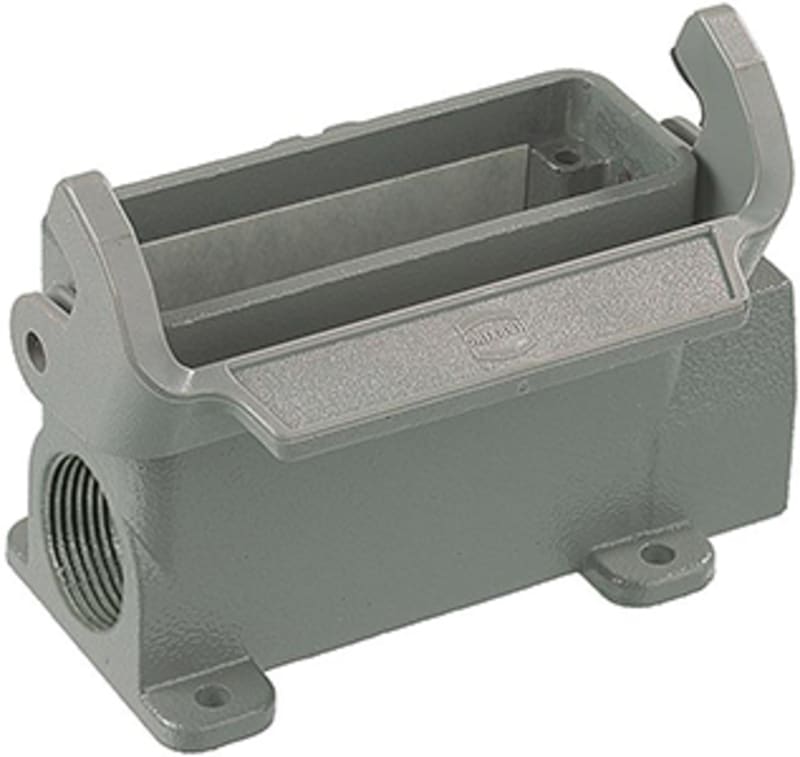

Han 16A-HSM-HC 1 Lever 2XM20
Pricing
Request a quote
We reply within 24 hours
Product Description
Harting 19200160290 Manufacturer description: Surface mounted housing; Size: 16 A; Low construction; Single locking lever; Polycarbonate (PC), Stainless steel; Side entry; 2x M20; Material (hood/housing): Aluminium die-cast; Powder-coated; RAL 7037 (dust grey). Han A® 16A Wall-mounted cover in metal, low construction, 2xM20, longitudinal clips.
Technical Specifications
- Manufacturer part number (MPN)
- 19200160290
- EAN / GTIN
- 5713140124752
- Sales unit
- pcs
- Category
- Hoods / Housings
- Series of hoods/housings
- Han A®
- Type of hood/housing
- Surface mounted housing
- Type
- Low construction
- Locking type
- Single locking lever
- Size
- 16 A
- Version
- Side entry
- Number of cable entries
- 2
- Cable entry
- 2x M20
- Field of application
- Standard Hoods/housings for industrial applications
- Han-Easy Lock®
- Yes
- Limiting temperature
- -40 ... +125 °C
- Note on the limiting temperature
- For use as a connector according to IEC 61984.
- Degree of protection acc. to IEC 60529
- IP65
- Type rating acc. to UL 50 / UL 50E
- 4 | 4X | 12
- Fire protection on railway vehicles
- EN 45545-2 (2020-08) + A1 (2023-10)
- China RoHS
- e
- RoHS
- compliant
- REACH SVHC substances
- Yes | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- Requirement set with Hazard Levels
- R22 (HL 1-3) | R23 (HL 1-3)
- ELV status
- compliant
- California Proposition 65 substances
- Yes | Nickel
- Material (hood/housing)
- Aluminium die-cast
- Surface (hood/housing)
- Powder-coated
- Colour (hood/housing)
- RAL 7037 (dust grey)
- Material (locking)
- Polycarbonate (PC) | Stainless steel
- Colour (locking)
- RAL 7037 (dust grey)
- Material flammability class acc. to UL 94 (locking levers)
- V-0
- UL / CSA
- UL 1977 ECBT2.E235076 | CSA-C22.2 No. 182.3 ECBT8.E235076
- Approvals
- CE | DNV GL
- European customs tariff number
- 85389099
- Packaging size
- 1
- Net weight
- 188.9 g
- Country of origin
- Germany
- eCl@ss
- 27440202 Shell for industrial connectors
- ETIM
- EC000437
- UNSPSC 24.0
- 39121466
- Width
- 50 mm
- UV resistant
- No
- Height
- 57 mm
- Depth
- 57 mm
- Shape
- Rectangular
- With hinged lid
- No
- Housing colour
- Grey
- Type of locking
- Single locking lever
- Number of conduit inlets
- 2
- With cable screw gland
- No
- EMC-version
- No
- Corrosion resistant
- No
- Length
- 80 mm
- Housing material
- Aluminium
- Coating housing
- Powder coating
- Operating temperature
- -40–125 °C
- With distance piece
- No
- With sealing
- No
- Type of housing
- Socket case
- With interlocking device
- Yes
- Degree of protection (IP), mounted
- IP65
- Material adaptor plate
- Aluminium
- Position cable feed
- Sideways
- Position of the shackle
- Base unit
- Mounting method of the cable gland
- Metric
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 5713140124752
- SAP 1000444653
- Code 81035705
Product Documentation
More from Harting
Harting
Han 16 ES-M insert (09330162616)
Harting
Han 3A-HTE-M25 PC grey
19200030430
Harting
Han DDD module, crimp male
09140173001
Harting
Han B Base Surface LC 1 Lever
19300061255
Harting
Han 10B-HTE-LC-4 PEGS-M25
19300101421
Harting
Han DDD module, crimp female
09140173101
Harting
Han-Eco 10B-HSM1-WITH DL-M25-GLANDED
19431100231
Harting

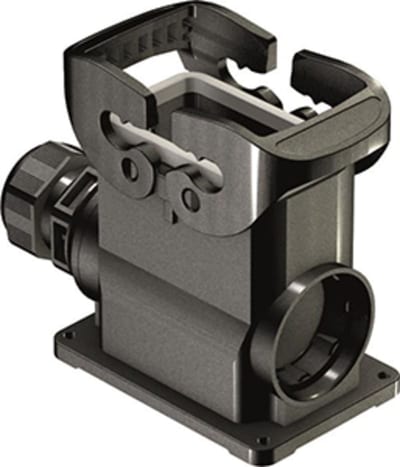

Han-Eco 10B OUTD-HSM1-W. DL-M32-GLANDED
