Harting

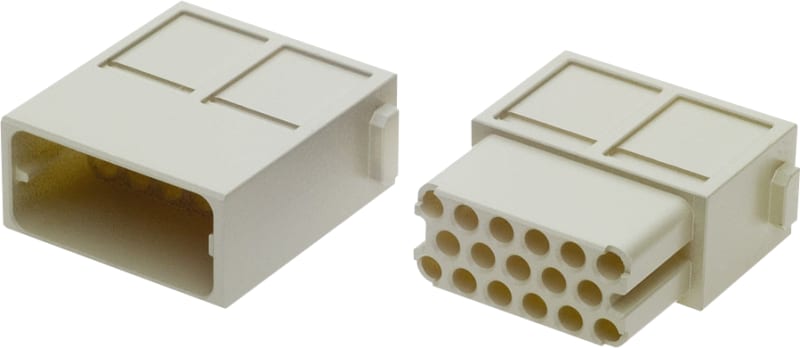

Han DDD module, crimp male
Part number09140173001EAN / GTIN5713140021167HS code8538.90
Electrical Components
Heavy-Duty Connectors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Harting 09140173001 Manufacturer description: Han® DDD module; Single module; Crimp termination; Male; Contacts: 17; Conductor cross-section: 0.14. 2.5 mm²; Rated current: 10 A; Polycarbonate (PC); RAL 7032 (pebble grey). HAN DDD MODULE, CRIMP MALE.
Technical Specifications
- Manufacturer part number (MPN)
- 09140173001
- EAN / GTIN
- 5713140021167
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Category
- Modules
- Type of module
- Han® DDD module
- Size of the module
- Single module
- Series
- Han-Modular®
- Termination method
- Crimp termination
- Gender
- Male
- Number of contacts
- 17
- Details
- Please order crimp contacts separately.
- Conductor cross-section (mm²)
- 0.14 ... 2.5 mm²
- Wire outer diameter
- ≤3.9 mm
- Rated current
- 10 A
- Rated voltage
- 160 V
- Rated impulse voltage
- 2.5 kV
- Pollution degree
- 3
- Rated voltage acc. to UL
- 250 V
- Insulation resistance
- >10¹⁰ Ω
- Limiting temperature
- -40 ... +125 °C
- Mating cycles
- 10000
- Note on the mating cycles
- Mating cycles with other HMC components
- Fire protection on railway vehicles
- EN 45545-2 (2020-08) + A1 (2023-10)
- China RoHS
- e
- RoHS
- compliant
- REACH SVHC substances
- Not contained
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- Requirement set with Hazard Levels
- R22 (HL 1-3) | R23 (HL 1-3)
- ELV status
- compliant
- California Proposition 65 substances
- Not contained
- Material (insert)
- Polycarbonate (PC)
- Colour (insert)
- RAL 7032 (pebble grey)
- Material flammability class acc. to UL 94
- V-0
- UL / CSA
- UL 1977 ECBT2.E235076 | UL 2237 PVVA2.E318390 | CSA-C22.2 No. 182.3 PVVA8.E318390
- Approvals
- DNV GL
- Specifications
- IEC 60664-1 | IEC 61984 | IEC 61373 Category 2
- European customs tariff number
- 85389099
- Packaging size
- 2
- Net weight
- 4.5 g
- Country of origin
- Germany
- eCl@ss
- 27440217 Module for industrial connectors (power/signals)
- ETIM
- EC000438
- UNSPSC 24.0
- 39121552
- Shape
- Rectangular
- With wire protection
- No
- With housing
- No
- Suitable for distribution board
- No
- Number of poles
- 17
- Contact type
- Pin
- Ambient temperature
- -40–125 °C
- Operating temperature
- -40–125 °C
- Rated surge voltage
- 2.5 kV
- Type of electric connection
- Crimp connection
- Overvoltage category
- III
- Diameter plug-in contact
- 1.6 mm
- Contact insert without contacts
- Yes
- Connectable conductor cross section multi-wired
- 0.14–2.5 mm²
- With protective conductor
- No
- Material connector insert
- Thermoplastic
- Rated current In
- 10 A
- Material of contact insert
- Thermoplastic
- Min. number of insertion cycles
- 10000
- Number of power contacts
- 17
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 5713140021167
- SAP 1000444679
- Code 8542377
Product Documentation
Document preview: HARTING 09140173001 — Data Sheet (OEM)
More from Harting
Harting
Han B Base Surface LC 1 Lever
19300061255
Harting
Han 10B-HTE-LC-4 PEGS-M25
19300101421
Harting
Han DDD module, crimp female
09140173101
Harting
Han-Eco 10B-HSM1-WITH DL-M25-GLANDED
19431100231
Harting
Han-Eco 10B OUTD-HSM1-W. DL-M32-GLANDED
19433100232
Harting

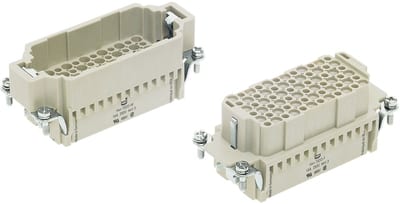

Han 72DD-SMC-FI-CRT (09160723101)
Harting

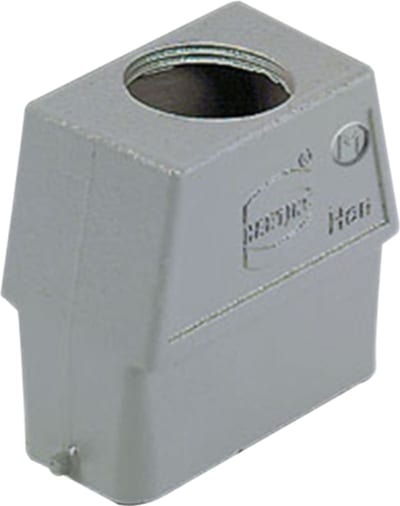

Han 10B-GG-R-M32 (19300100447)
Harting

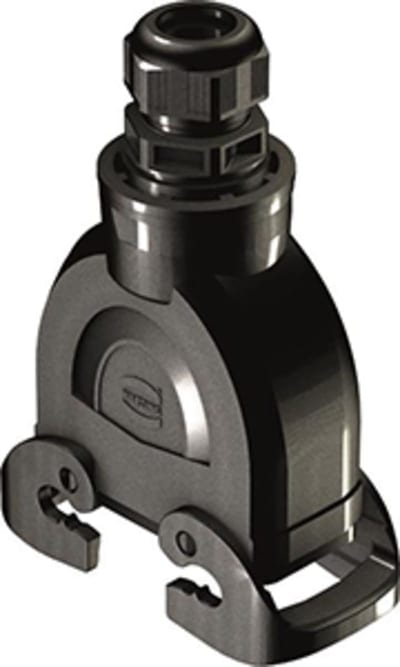

Han-Eco 16B-HCC-WITH DL-M25-GLANDED
