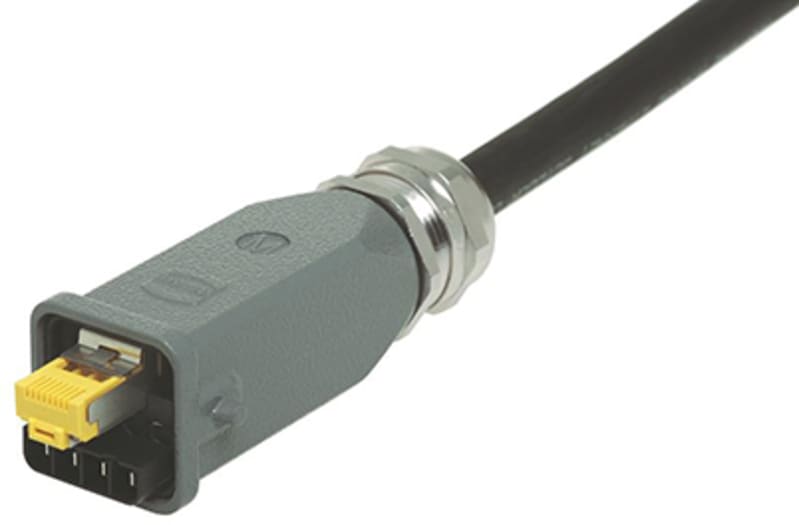

HAN3A RJ45 Hybrid 10G CAT6 plug 8+4P IDC (9451151760)
Pricing
Request a quote
We reply within 24 hours
Product Description
Harting 9451151760 Manufacturer description: Connectors; Cable connector; IDC insulation displacement termination; Contacts: 12; Hood; Straight; Size: 3 A; Material: Zinc die-cast; Powder-coated. Cable connector, IDC termination, Size: Han® 3 A, Contacts: 8, 4x 48 V.
Technical Specifications
- Manufacturer part number (MPN)
- 9451151760
- EAN / GTIN
- 5713140058859
- HS code
- 8544.42
- Sales unit
- pcs
- Category
- Connectors
- Identification
- Hybrid
- Series of hoods/housings
- Han A®
- Element
- Cable connector
- Series
- RJ45
- Type of hood/housing
- Hood
- Description of hood/housing
- Straight
- Features
- Suitable for all PoE versions
- Termination method
- IDC insulation displacement termination
- Size
- 3 A
- Shielding
- Fully shielded, 360° shielding contact
- Number of contacts
- 12
- Number of power contacts
- 4
- Number of data contacts
- 8
- Conductor cross-section (mm²)
- 0.1 ... 0.32 mm² Data | 1.5 mm² Power
- Conductor cross-section (AWG)
- AWG 27/7 ... AWG 22/7 Stranded (Data) | AWG 27/1 ... AWG 22/1 Solid (Data) | AWG 16 Power
- Wire outer diameter
- ≤1.6 mm (Data) | ≤2.75 mm (Power)
- Rated voltage (data)
- 50 V AC | 60 V DC
- Rated voltage (power)
- 48 V DC
- Rated current (power)
- 16 A
- Rated current (data)
- 1.76 A
- Limiting temperature
- -40 ... +70 °C
- Storage temperature
- +5 ... +50 °C
- Mating cycles
- 500
- Cable diameter
- 6 ... 12 mm
- Transmission characteristics
- Cat. 6 Class EA up to 500 MHz
- Data rate
- 10 Mbit/s | 100 Mbit/s | 1 Gbit/s | 2.5 Gbit/s | 5 Gbit/s | 10 Gbit/s
- Vibration resistance
- 10-500 Hz, 5 g, 0.35 mm, 2h/axis | 7.9 m/s² acc. to IEC 61373 Category 1 Class B
- Shock resistance
- 5 g / 30 ms, 5 shocks / axis and direction acc. to IEC 61373 Category 1 Class B
- ECHA SCIP number
- d361ed36-dee0-4df8-9f2e-b62dd7563c1a
- China RoHS
- 50
- RoHS
- compliant with exemption
- REACH SVHC substances
- Yes | 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- ELV status
- compliant with exemption
- California Proposition 65 substances
- Yes | Lead | Nickel
- RoHS exemptions
- 6(c): Copper alloy containing up to 4 % lead by weight
- Material (hood/housing)
- Zinc die-cast
- Surface (hood/housing)
- Powder-coated
- Colour (hood/housing)
- Grey
- UL / CSA
- UL 1977 ECBT2.E102079 | CSA-C22.2 No. 182.3 ECBT8.E102079
- PROFINET
- Yes
- Approvals
- DNV GL
- European customs tariff number
- 85366990
- Packaging size
- 1
- Net weight
- 110 g
- Country of origin
- Romania
- eCl@ss
- 27440113 Rectangular connectors (set)
- ETIM
- EC002636
- UNSPSC 24.0
- 39121408
