Harting

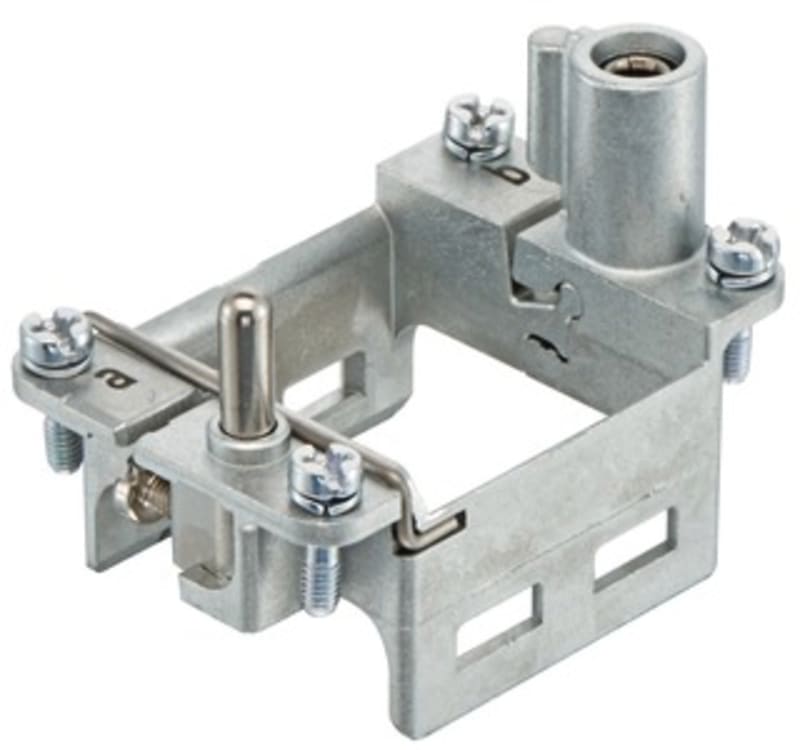

Han hinged frame plus, for 2 modules a-b (09140060371)
Part number09140060371EAN / GTIN5713140161832HS code8536.90
Electrical Components
Heavy-Duty Connectors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Harting 09140060371 Manufacturer description: Hinged frame plus; for 2 modules, a. b; Size: 6 B. Hinged frame for 2 modules, a. b, Size: 6 B.
Technical Specifications
- Manufacturer part number (MPN)
- 09140060371
- EAN / GTIN
- 5713140161832
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Category
- Accessories
- Series
- Han-Modular®
- Type of accessory
- Hinged frame plus
- Description of the accessory
- for 2 modules | a ... b
- Size
- 6 B
- Conductor cross-section (mm²)
- 1 ... 10 mm² PE (power side) | 0.5 ... 2.5 mm² PE (signal side) | The use of ferrules is recommended, conductor cross-section 10 mm² only with ferrule crimping tool 09 99 000 0374.
- Limiting temperature
- [-40] ... [+125 °C]
- Stripping length
- 8 ... 10 mm
- Tightening torque
- 0.8 Nm PE screw M3 | 1.2 Nm PE screw M4
- Recommended screw driver
- Slotted 0.6 x 3.5 | PH2
- Mating cycles
- 500
- China RoHS
- e
- RoHS
- compliant
- REACH SVHC substances
- Not contained
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- ELV status
- compliant
- California Proposition 65 substances
- Yes | Lead
- Material
- Zinc die-cast | Stainless steel
- UL / CSA
- UL 1977 ECBT2.E235076
- Approvals
- DNV GL
- Specifications
- IEC 60664-1 | IEC 61984 | IEC 61373 Category 2
- European customs tariff number
- 85389099
- Packaging size
- 1
- Net weight
- 5.6 g
- Country of origin
- Germany
- eCl@ss
- 27440206 Module carrier frame for industrial connectors
- ETIM
- EC002312
- UNSPSC 24.0
- 39121421
- Direct mounting possible
- Yes
- Rail mounting
- No
- Number of module positions
- 2
- With protective conductor
- Yes
- Min. number of insertion cycles
- 500
- Length
- 51.2 mm
- Width
- 34.4 mm
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 5713140161832
- SAP 1200111660
- Code 81963621
Product Documentation
Document preview: HARTING 09140060371 — Data Sheet (OEM)
