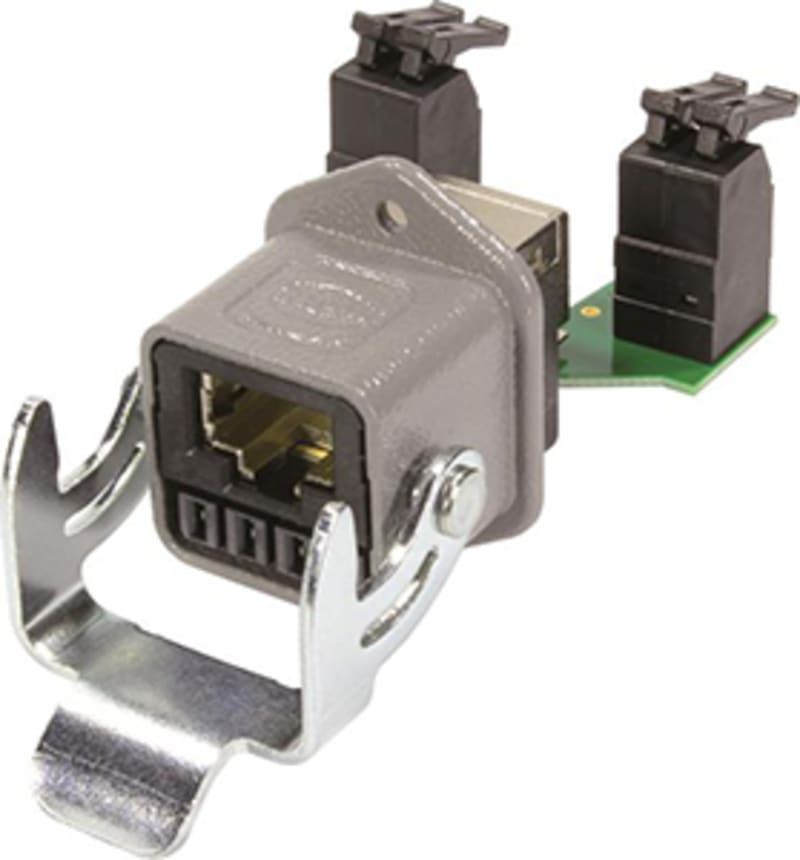

Han 3A RJ45 Hybrid CAT.6A PFT 8+4P
Pricing
Request a quote
We reply within 24 hours
Product Description
Harting 9452151760 Manufacturer description: Connectors; Panel feed through Straight; Contacts: 12; Size: 3 A; Material: Zinc die-cast; Powder-coated. Han3A Chassiplugg hybrid Metal.
Technical Specifications
- Manufacturer part number (MPN)
- 9452151760
- EAN / GTIN
- 5713140059733
- Sales unit
- pcs
- Category
- Connectors
- Identification
- Hybrid
- Series of hoods/housings
- Han A®
- Element
- Panel feed through
- Specification
- Straight
- Series
- RJ45
- Features
- Suitable for all PoE versions
- Size
- 3 A
- Shielding
- Fully shielded, 360° shielding contact
- Number of contacts
- 12
- Number of power contacts
- 4
- Number of data contacts
- 8
- Conductor cross-section (mm²)
- 1.5 mm² Power
- Conductor cross-section (AWG)
- AWG 12 Power
- Rated voltage (data)
- 50 V AC | 60 V DC
- Rated voltage (power)
- 48 V DC
- Rated current (power)
- 16 A
- Rated current (data)
- 1.76 A
- Limiting temperature
- -40 ... +70 °C
- Mating cycles
- 500
- Transmission characteristics
- Cat. 6A Class EA up to 500 MHz
- Data rate
- 10 Mbit/s | 100 Mbit/s | 1 Gbit/s | 2.5 Gbit/s | 5 Gbit/s | 10 Gbit/s
- China RoHS
- e
- RoHS
- compliant
- REACH SVHC substances
- Not contained
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- ELV status
- compliant
- California Proposition 65 substances
- Yes | Nickel
- Material (hood/housing)
- Zinc die-cast
- Surface (hood/housing)
- Powder-coated
- Colour (hood/housing)
- Grey
- UL / CSA
- UL 1977 ECBT2.E102079 | CSA-C22.2 No. 182.3 ECBT8.E102079
- PROFINET
- Yes
- Approvals
- DNV GL
- European customs tariff number
- 85366990
- Packaging size
- 1
- Net weight
- 77.54 g
- Country of origin
- Germany
- eCl@ss
- 27440113 Rectangular connectors (set)
- ETIM
- EC002636
- UNSPSC 24.0
- 39121408
- Contact type
- Ethernet
- Width
- 42 mm
- Height
- 40 mm
- Depth
- 60 mm
- Number of poles
- 8
- Rated current In
- 16 A
- Pollution degree
- 2
- Type of electric connection
- Screw connection
- Material of contact surface
- Gold
- Material contact
- Copper
- Material insulation body
- Polycarbonate (PC)
- Housing material
- Aluminium
- Coating housing
- Powder coating
- Type of locking
- Single locking lever
- With protective conductor
- No
- Degree of protection (IP), mounted
- IP65/IP67
- EMC-version
- Yes
- Number of conduit inlets
- 1
- Position cable feed
- Two-sided
Standards & Compliance
- HS Code
- 8536.70
