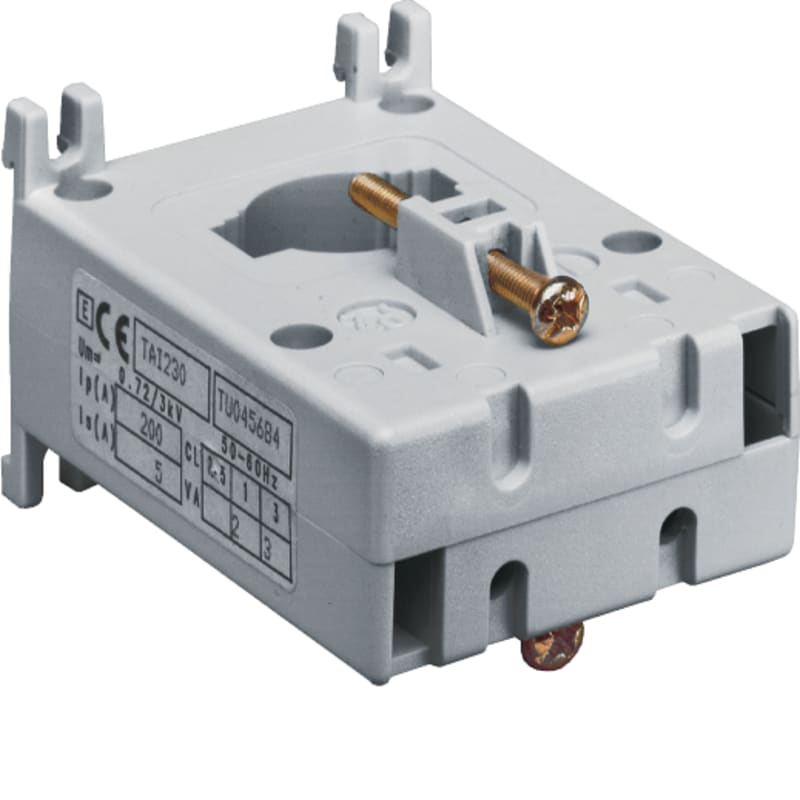

Hager SR200 Attachable Current Transformer 200/5 A, Class 1
Pricing
Request a quote
We reply within 24 hours
Product Description
Hager SR200 is an attachable current transformer with a 200 A primary and 5 A secondary rating, accuracy class 1, and 2.5 VA rated apparent power. It accepts cables up to Ø23 mm or a 30 x 10 mm busbar, and provides contact protection at the terminals. The transformer is used for metering and protection signalling in low-voltage distribution boards.
Technical Specifications
- Manufacturer part number (MPN)
- SR200
- EAN / GTIN
- 3250615682000
- Sales unit
- pcs
- Package quantity
- 36 pcs
- Model
- Attachable current transformer
- Rated primary current
- 200 A
- Rated secondary current
- 5 A
- Rated secondary apparent power
- 2.5 VA
- Accuracy class
- 1
- Overcurrent limiting factor
- FS 5
- With contact protection
- Yes
- Snap mounting
- No
- With copper rail
- No
- Number of primary inputs
- 1
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 3250615682000
- SAP 1000035152
- Code 8727373
Product Documentation
