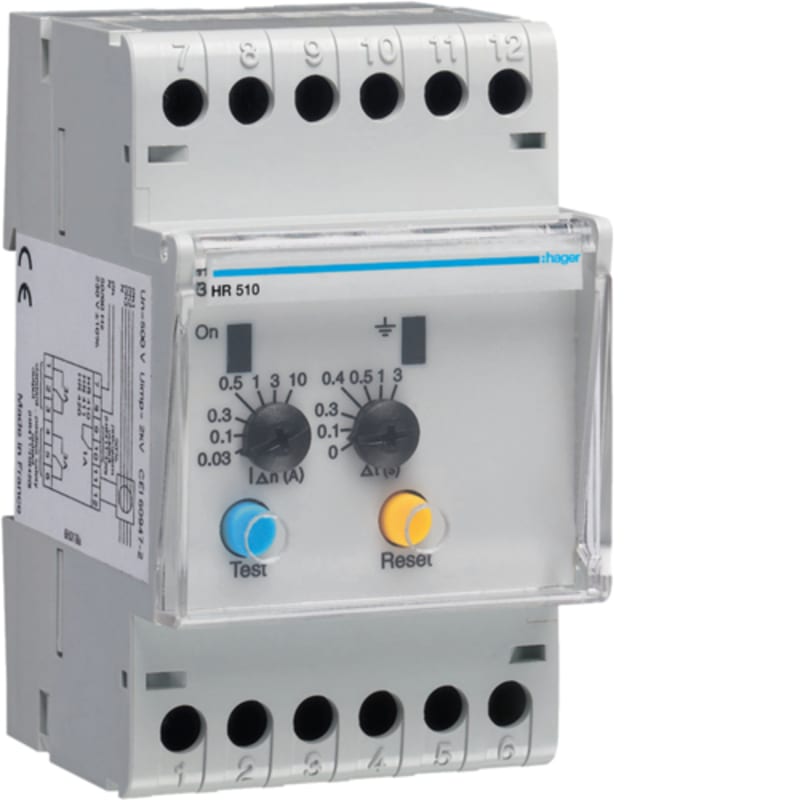

Hager 1660560 Earth Leakage Relay — 1-Channel, Adjustable 30 mA–10 A, 0–3 s Time Delay

A single-channel adjustable earth leakage relay. It measures the residual current — the difference between the current flowing out to a load and the current returning from it, which is only non-zero when some of it is escaping to earth — and signals a separate switching device to open, rather than breaking the circuit itself. That split is what lets it protect circuits far larger than a self-contained RCD could switch. Sensitivity is adjustable from 30 mA to 10 A and the tripping delay from 0 to 3 seconds, which together allow it to be set for genuine selectivity against devices downstream of it. It provides a 6 A change-over output contact and runs from a 230 V AC supply. Supplied by cBallast on quote-to-invoice terms; lead time and freight are quoted per RFQ against the destination Incoterm.

Manufacturer part number (MPN)

1660560

Sales unit

pcs

Package quantity

48 pcs

Delay adjustable

Yes

Rated fault current

0.03–10 A

Rated control supply voltage AC 50 Hz

230 V

Rated control supply voltage AC 60 Hz

230 V

Max. rated operation voltage Ue

230 V

Max. power on-delay time

3000 ms

Country of origin

Spain

Device type

Earth leakage relay

Number of channels

1

Sensitivity range (IΔn)

30 mA – 10 A, adjustable

Tripping delay

0 – 3 s, adjustable

Output contact

Change-over, 6 A

HS Code

8536.49

• 3250613281311
