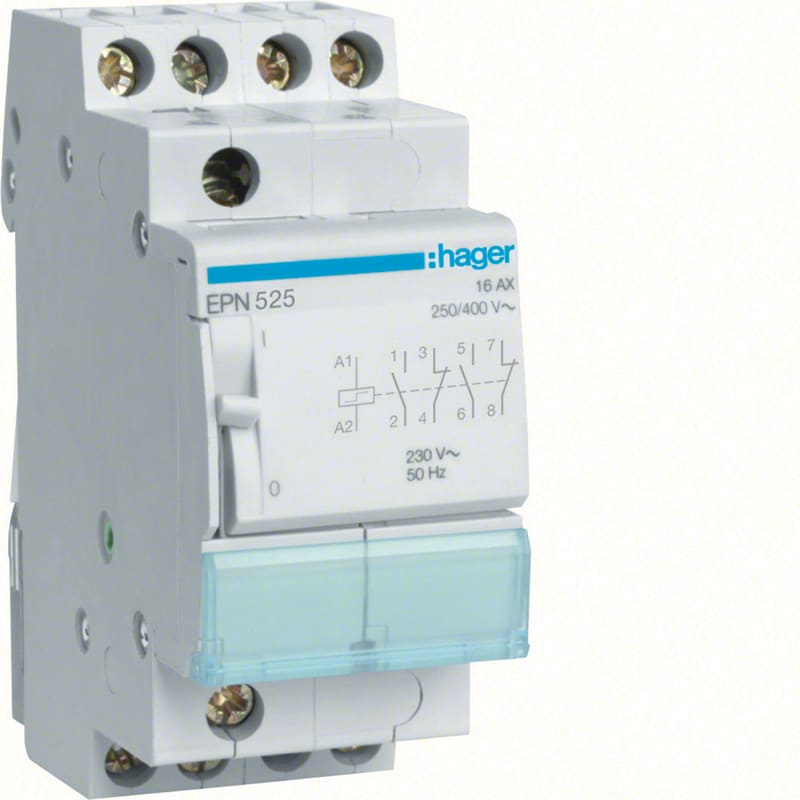

Hager Systemer Impulse Relay 220 V 16 A 2 NO + 2 NC Contacts

Hager Systemer EPN525 impulse relay rated 220 V and 16 A, with two NO plus two NC contacts and 35-module DIN-rail mounting for lighting-control circuits switched from multiple locations. Control voltage 230 V AC or 110 V DC at 50-60 Hz, incandescent-lamp load up to 1800 W and fluorescent-lamp load up to 800 VA, suitable for manual operation. Country of origin France.

Manufacturer part number (MPN)

EPN525

EAN / GTIN

3250612369485

Sales unit

pcs

Package quantity

6 pcs

Voltage

220 V

Rated current

16 A

Mounting method

DIN rail

Function

Mechanical switch

Built-in depth

63 mm

Width in number of modular spacings

35

Control voltage 1

230 V

Control voltage 2

110 V

Type of control voltage 1

AC

Type of control voltage 2

DC

Frequency control voltage 1

50–60 Hz

Frequency control voltage 2

50–60 Hz

Suitable for manual operation

Yes

Voltage type (supply voltage)

AC

Supply voltage

250 V

Max. switching current (cos phi = 0.6)

16 A

Max. incandescent lamp load

1800 W

Max. load fluorescent lamp

800 VA

Rated switch current

16 A

Number of contacts as normally closed contact

2

Number of contacts as normally open contact

2

Country of origin

France

HS Code

8536.49

• EAN 3250612369485
• SAP 1000038151
• Code 8779980
