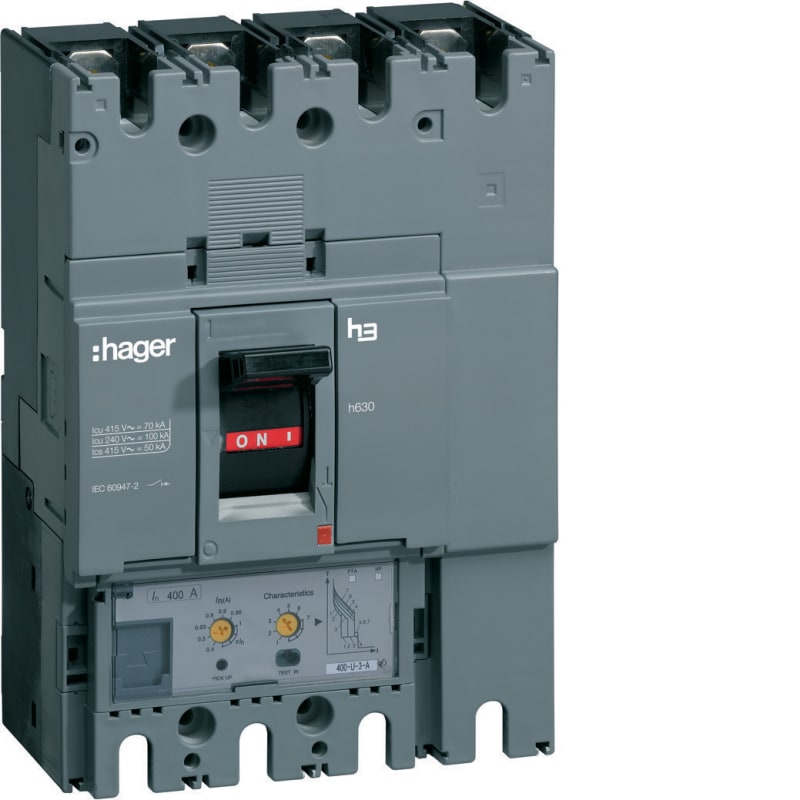

Eff.switch LSI 3X160-400A 50KA
Pricing
Request a quote
We reply within 24 hours
Product Description
Hager Systemer HND630H Circuit breaker, electronic protection lsi, adjustable 3x160 for 400A (Ir 0,4 - 1xIn) Ik 50kA.
Technical Specifications
- Manufacturer part number (MPN)
- HND630H
- EAN / GTIN
- 3250613349547
- HS code
- 8536.90
- Sales unit
- pcs
- Breaking capacity
- 50 kA
- Rated permanent current Iu
- 400 A
- Number of poles
- 3
- Overload release current setting
- 160–400 A
- Rated voltage
- 220–690 V
- Degree of protection (IP)
- IP40
- Position of connection for main current circuit
- Front side
- Motor drive integrated
- No
- Type of electrical connection of main circuit
- Screw connection
- Type of control element
- Wing knob
- With switched-off indicator
- No
- Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
- 50 kA
- Adjustment range undelayed short-circuit release
- 2240–5200 A
- Suitable for DIN rail (top hat rail) mounting
- No
- Integrated earth fault protection
- No
- Motor drive optional
- Yes
- Device construction
- Built-in device fixed built-in technique
- DIN rail (top hat rail) mounting optional
- No
- Complete device with protection unit
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3250613349547
- SAP 1000573418
- Code 8695605
Product Documentation
More from Hager Systemer
Hager Systemer
Hager Systemer Internal corner for LF 18x45 mm trunking, moulded ABS, white RAL 9016 LF1804549016
Hager Systemer

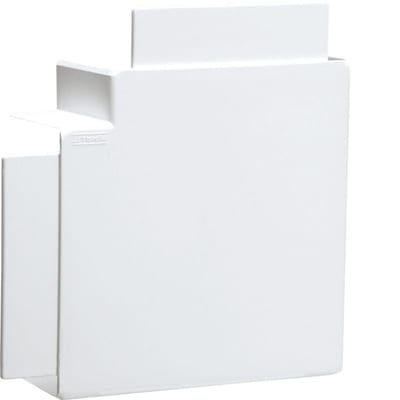

Flat angle FOR LF60091 White
LF6009059016
Hager Systemer
Hager Systemer Insulated busbar 1P 80A fork 16mm² 57M KDN180B
Hager Systemer

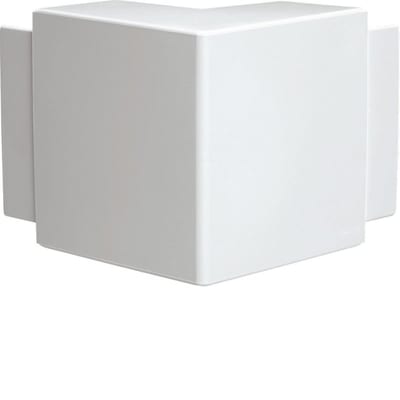

Hager Systemer External corner for LF 60x90 mm trunking, moulded ABS, white RAL 9016 LF6009039016
Hager Systemer

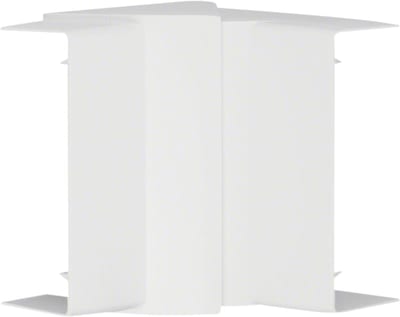

Hager Systemer Internal corner for LFF 40x110 mm trunking, moulded ABS, traffic white RAL 9016, adjustable 83...97 deg LFF4011049016
