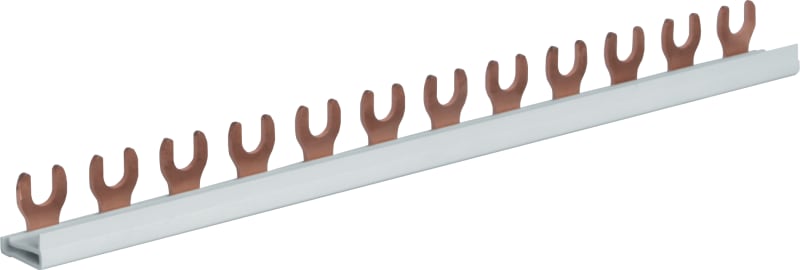

Hager Systemer Insulated busbar 1P 80A fork 16mm² 57M KDN180B
Pricing
Request a quote
We reply within 24 hours
Product Description
Phase busbar 1P: Length 57 modules; 1 pole L1; Cross-section 16mm² Cu; Rated operating current 80A.
Technical Specifications
- Manufacturer part number (MPN)
- KDN180B
- EAN / GTIN
- 3250613741020
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Rated current
- 80 A
- Number of poles
- 1P
- Type of pole
- 1P
- Length
- 1000 mm
- Rated impulse withstand voltage Uimp
- 4500 V
- Rated operational voltage Ue
- 415 - 415 V
- Cross-section rigid conductor
- 16 mm²
- Connector/plug type
- Phase busbar with fork
- Number of modules
- 57
- Colour
- Grey
- Insulated
- Yes
- Number of phases
- 1
- Cross section
- 16 mm²
- Rated permanent current Iu
- 80 A
- Width in number of modular spacings
- 57
- Rated surge voltage
- 4.5 kV
- Type of electric connection
- Fork
- Suitable for devices with auxiliary switch
- No
- Suitable for devices with N-conductor
- No
- Suitable for number of devices
- 57
- Max. rated operation voltage Ue
- 400 V
- Module width
- 17.5 mm
- Can be cut to size
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3250613741020
- SAP 1000049261
- Code 8722994
Product Documentation
