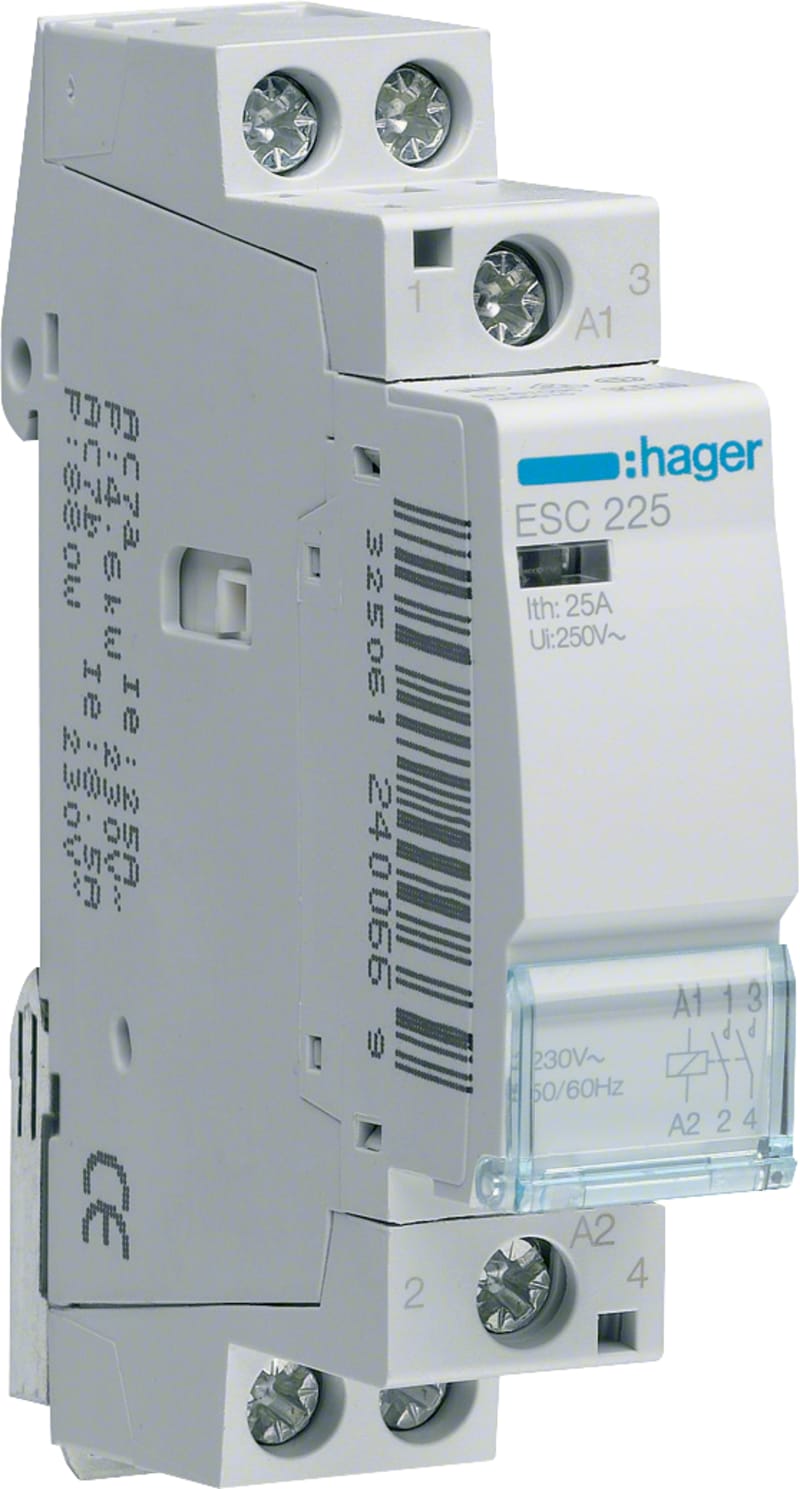

Hager ESC225 Modular Installation Contactor 25 A, 230 V, 2 NO
Pricing
Request a quote
We reply within 24 hours
Product Description
Hager ESC225 is a modular DIN-rail installation contactor rated 25 A with a 230-400 V rated operating voltage and a 220-240 V AC coil, arranged with two normally-open contacts. Utilisation category AC-7a/AC-7b covers domestic and light-commercial loads including up to 1900 W incandescent or 950 VA fluorescent lamps. One-module width, IP2X, for switching lighting and heating circuits from a distribution board.
Technical Specifications
- Manufacturer part number (MPN)
- ESC225
- EAN / GTIN
- 3250612400669
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 108 pcs
- Utilization category according to EN IEC 60947-4-1
- AC-7a/AC-7b
- Rated operating voltage
- 230–400 V
- Rated operation current
- 25 A
- Utility category
- 7
- Rated excitation voltage
- 220–240 V
- Voltage type (operating voltage)
- AC
- Number of contacts as normally open contact
- 2
- Max. incandescent lamp load
- 1900 W
- Max. load fluorescent lamp
- 950 VA
- Slider for hand switch
- No
- Width in number of modular spacings
- 1
- Built-in depth
- 60 mm
- Additional equipment possible
- Yes
- With day/night function
- No
- Hum-free
- No
- Degree of protection (IP)
- IP2X
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3250612400669
- SAP 1000221638
- Code 8935659
Product Documentation
