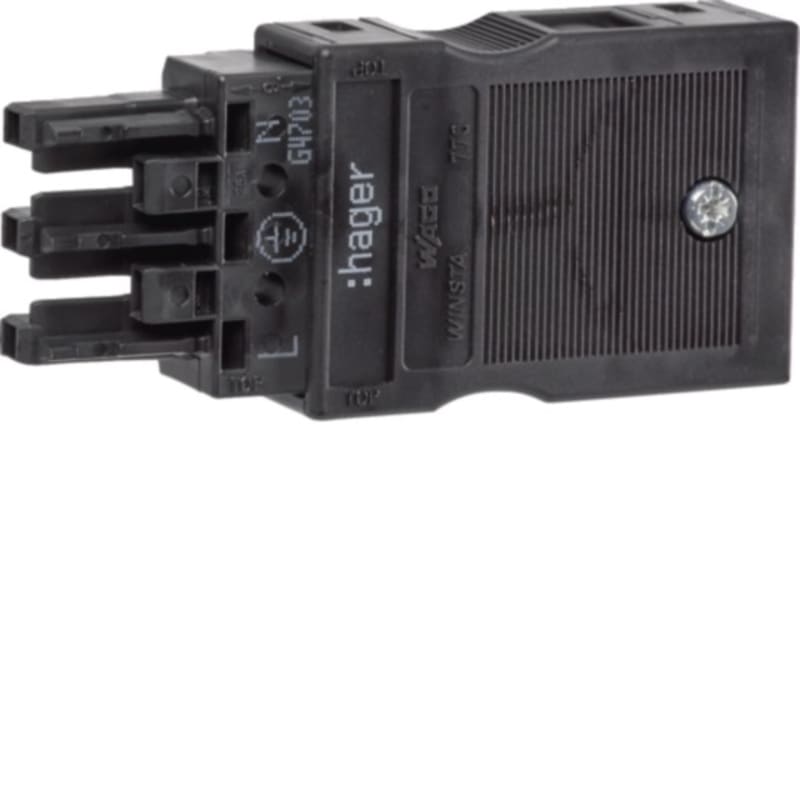

Input Plug 3-Pole (G4703)
Pricing
Request a quote
We reply within 24 hours
Product Description
Hager Systemer G4703 Plug for connection of wire for outlet, 3 pole.
Technical Specifications
- Manufacturer part number (MPN)
- G4703
- EAN / GTIN
- 4012740849562
- Sales unit
- pcs
- Package quantity
- 25 pcs
- Number of poles
- 3P
- Rated voltage
- 250 V
- Rated current
- 25 A
- Degree of protection (IP)
- IP20
- Connection type
- Spring clamp connection
- Model
- Bus
- Cable diameter
- 11.5 mm
- Connection cross section (fine-strand)
- 0.5–4 mm²
- Number of connections per pole
- 3
- Pole codification
- L, N, PE
- Mechanical coding
- Yes
- Colour coding/contact insert
- Black
- Type of locking
- Integrated in plug-in connector
- With strain relief
- Yes
- Max. continuous temperature resistance contact part
- 85 °C
- Max. continuous temperature resistance strain relief
- 105 °C
- Housing material
- Polyamide (PA)
- Halogen free
- Yes
- Fire load
- 0.117 kWh
- Contact material
- CuSn
- Surface treatment contacts
- Tinned
- Pollution degree
- 3
- Continuity resistance
- 1 mOhm
- Rated surge voltage
- 4 kV
- Length
- 76 mm
- Height
- 15 mm
- Width
- 34.6 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 4012740849562
- SAP 1000011601
- Code 890405
Product Documentation
