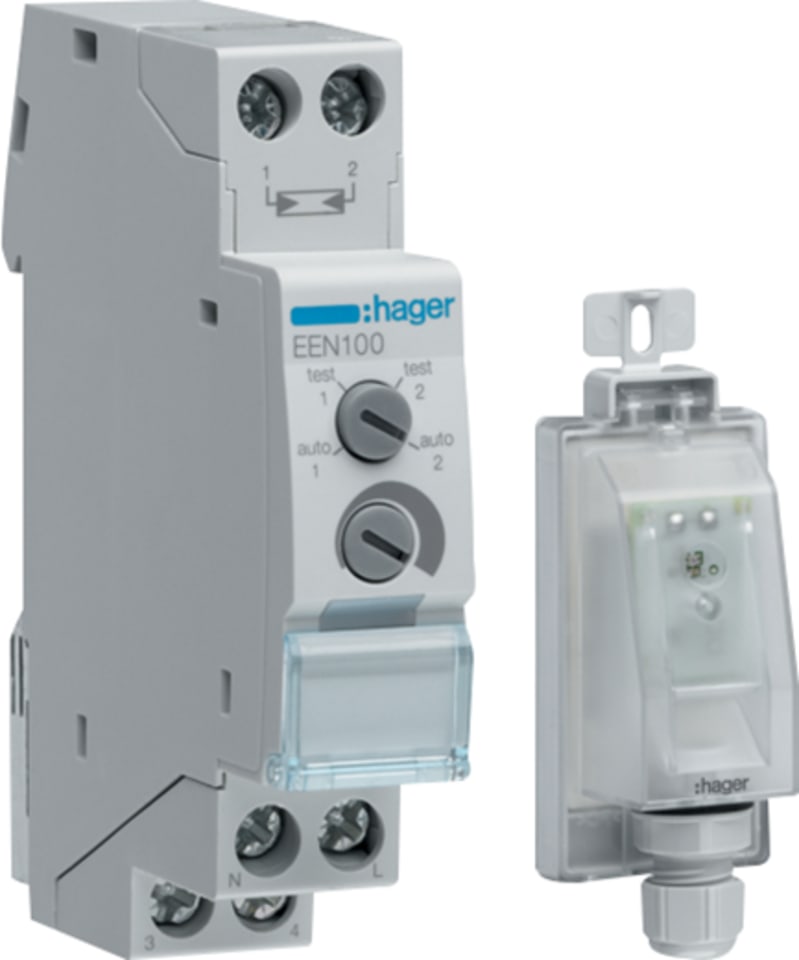

Hager Systemer EEN100 Photocell Switch 16 A with Surface-Mounted Sensor

Hager Systemer EEN100 is a DIN-rail mounted photocell switch with a separate surface-mounted light sensor, rated 16 A at 230 V, 50-60 Hz. Ambient brightness threshold is adjustable from 5 to 2000 lx and the output handles up to 2300 W incandescent or 1000 VA fluorescent load. Occupies one modular width, IP20 for the controller and IP55 for the sensor, typically used to switch outdoor and street lighting circuits automatically based on daylight.

Manufacturer part number (MPN)

EEN100

EAN / GTIN

3250617579308

Sales unit

pcs

Rated current

16 A

Rated voltage

230 V

Rated frequency

50–60 Hz

Max. incandescent lamp load

2300 W

Max. load fluorescent lamp

1000 VA

Max. switching current (cos phi = 0.6)

10 A

Rated switch current

10 A

Adjustment range brightness value

5–2000 lx

With programmable overnight shutoff

No

Push button input

No

Rated voltage light sensor

230 V

Max. conductor length light sensor

100 m

Protection class light sensor

II

Mounting method

DIN rail

Width in number of modular spacings

1

Built-in depth

17.8 mm

Degree of protection (IP)

IP20

Degree of protection (IP) light sensor

IP55

Country of origin

Poland

HS Code

8526.92
