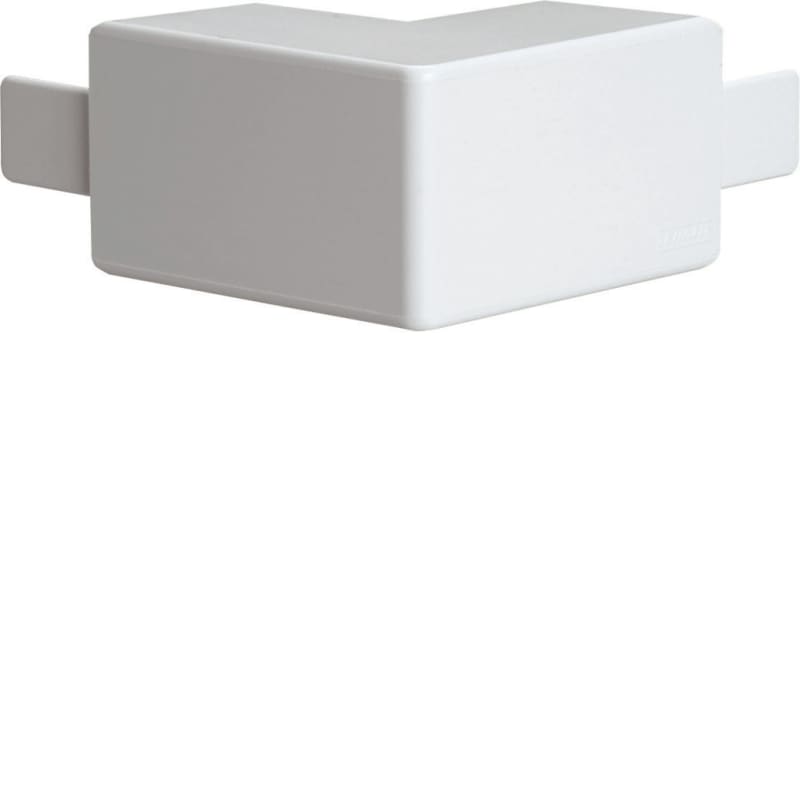

Hager Systemer External corner for LF 40x60 mm trunking, moulded ABS, traffic white RAL 9016 LF4006039016
Pricing
Request a quote
We reply within 24 hours
Product Description
Moulded external corner hood for Hager tehalit LF trunking in the 40x60 mm size. Part dimensions 40 mm x 60 mm. Fixed 90 deg angle. Acrylonitrile-Butadiene-Styrene (ABS). Traffic white, RAL 9016, untreated. Impact resistance IK07. Ingress protection IP30. Operating temperature -5 to 90 °C. Snap on. Not rated for circuit or functional integrity to DIN 4102-12. Supplied in packs of 5 pcs. Country of origin Germany. HS code 3925.90. Hager reference: SAP 1200636077, code 83054807.
Technical Specifications
- Manufacturer part number (MPN)
- LF4006039016
- EAN / GTIN
- 4012740012072
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Height
- 40 mm
- Width
- 60 mm
- Type of accessory
- Moulded
- Angle range
- 90 - 90
- Material
- Acrylonitrile-Butadiene-Styrene (ABS)
- Treatment
- Untreated
- Colour
- Traffic white
- RAL code
- 9016
- Impact resistance IK
- IK07
- Suitable for functional integrity according to DIN4102-12
- No
- Operating temperature
- -5 - 90 °C
- With protective film
- No
- Overlapping
- No
- Model
- Moulded hood
- Halogen free
- No
- RAL-number
- 9016
- Surface protection
- Untreated
- Material quality
- Polyvinyl chloride (PVC)
- Type of fastening
- Snap on
- With protective foil
- No
- Angle
- 90 °
- Degree of protection (IP)
- IP30
- Suitable for circuit integrity
- No
- Anti-bacterial treatment
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 3925.90
Cross References
- EAN 4012740012072
- SAP 1200636077
- Code 83054807
