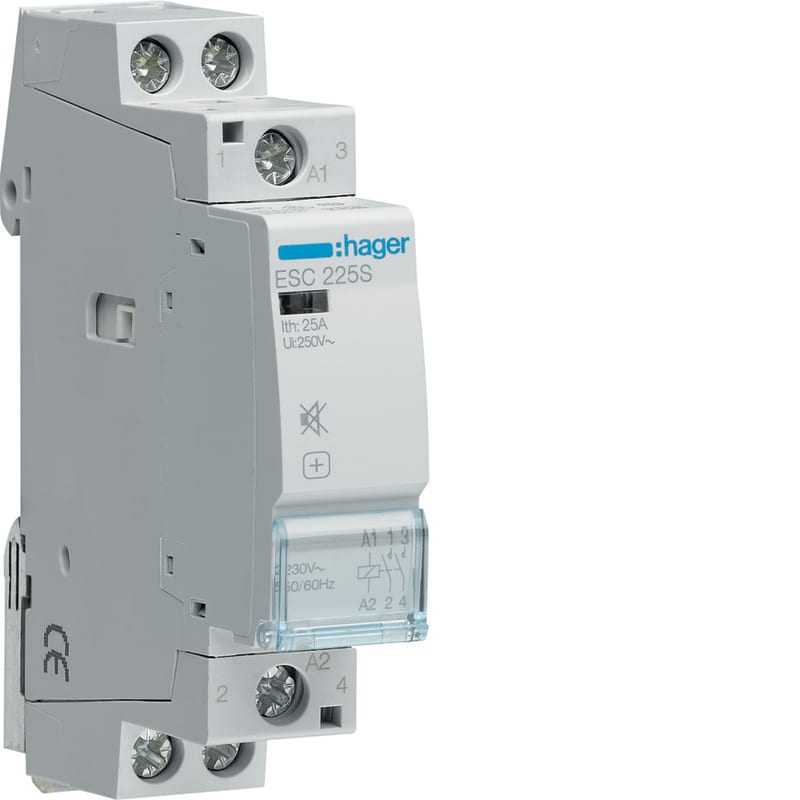

Hager ESC225S Hum-Free Modular Contactor 25 A 230 V 2 NO
Pricing
Request a quote
We reply within 24 hours
Product Description
The Hager ESC225S is a hum-free single-module modular contactor rated 25 A with two normally open contacts and a 220–240 V AC coil. Utilization categories AC-7a and AC-7b make it suitable for resistive and inductive residential loads including up to 1900 W of incandescent lamp load or 950 VA of fluorescent load. Typical applications include distribution-board control of lighting circuits, water heaters and similar switched loads.
Technical Specifications
- Manufacturer part number (MPN)
- ESC225S
- EAN / GTIN
- 3250612400034
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 108 pcs
- Utilization category according to EN IEC 60947-4-1
- AC-7a/AC-7b
- Rated operating voltage
- 230–400 V
- Rated operation current
- 25 A
- Utility category
- 7
- Rated excitation voltage
- 220–240 V
- Voltage type (operating voltage)
- AC
- Number of contacts as normally open contact
- 2
- Max. incandescent lamp load
- 1900 W
- Max. load fluorescent lamp
- 950 VA
- Slider for hand switch
- No
- Width in number of modular spacings
- 1
- Built-in depth
- 60 mm
- Additional equipment possible
- Yes
- With day/night function
- No
- Hum-free
- Yes
- Degree of protection (IP)
- IP2X
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3250612400034
- SAP 1000221654
- Code 8111914
Product Documentation
