Hager Systemer 2-Way Socket Outlet Black BRP
Pricing
Request a quote
We reply within 24 hours
Product Description
Hager Systemer GS20019011 is a 2-way protective-contact socket outlet (CEE 7/3 / CEE 7/4 type F) in black for BRP, BRA, BRS and BRHP wall ducts. Rated 16 A at 250 V AC 50-60 Hz, the 120 x 50 x 54 mm thermoplastic module snap-fits to the duct with push-in clamp terminals. Halogen-free with IK07 impact strength and IP20 protection, supplied in packs of 10.
Technical Specifications
- Manufacturer part number (MPN)
- GS20019011
- EAN / GTIN
- 4012740847889
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Nominal current
- 16 A
- Nominal voltage
- 250 V
- Mounting method
- Wall duct
- Colour
- Black
- Model
- Protective contact CEE 7/3 / CEE 7/4 (type F)
- Halogen free
- Yes
- Number of units
- 2
- Lockable
- No
- With hinged lid
- No
- Connection type
- Push-in clamp
- Surface protection
- Untreated
- With signal lamp
- No
- Number of phases
- 1
- With enhanced contact protection
- Yes
- Frequency
- 50–60 Hz
- With on/off switch
- No
- Protective contact
- Yes
- Label space/information surface
- Yes
- Eject-mechanism
- No
- Material quality
- Thermoplastic
- Rotated central insert
- No
- Overvoltage protection
- No
- Fault current protection
- No
- Special power supply
- No special power supply
- Insulated mounting
- Yes
- Material
- Plastic
- Type of fastening
- Snap mounting (engagement)
- Imprint/indication
- None
- RAL-number (similar)
- 9011
- Impact strength
- IK07
- Transparent
- No
- Surface finishing
- Matt
- With miniature fuse
- No
- With loop through function
- Yes
- Suitable for degree of protection (IP)
- IP20
- Phase pickup
- None
- Device width
- 120 mm
- Device height
- 50 mm
- Device depth
- 54 mm
- With function lighting
- No
- With orientation lighting
- No
- With built-in USB power supply
- No
- Number of modules (module system)
- 2
- IFTTT support available
- No
- Protective earth pin round
- No
- Min. depth of built-in installation box
- 40 mm
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Metallic colour
- No
- Anti-bacterial treatment
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4012740847889
- SAP 1000644351
- Code 8424797
Product Documentation
More from Hager Systemer
Hager Systemer
Flat angle for LF channel 40X60 WHITE
LFF4006059016
Hager Systemer
Floor Trunking 17X75MM GREY L=2
SL1807507030
Hager Systemer
Terminal 5mm RAIL 1,5-35MM2 CU
K96T
Hager Systemer
END Cover FOR LF30060 White
LF3006069016
Hager Systemer

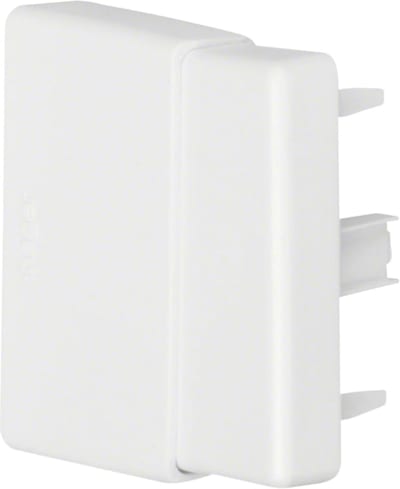

Hager Systemer End Piece for LF Trunking 30/40/60x60 White
