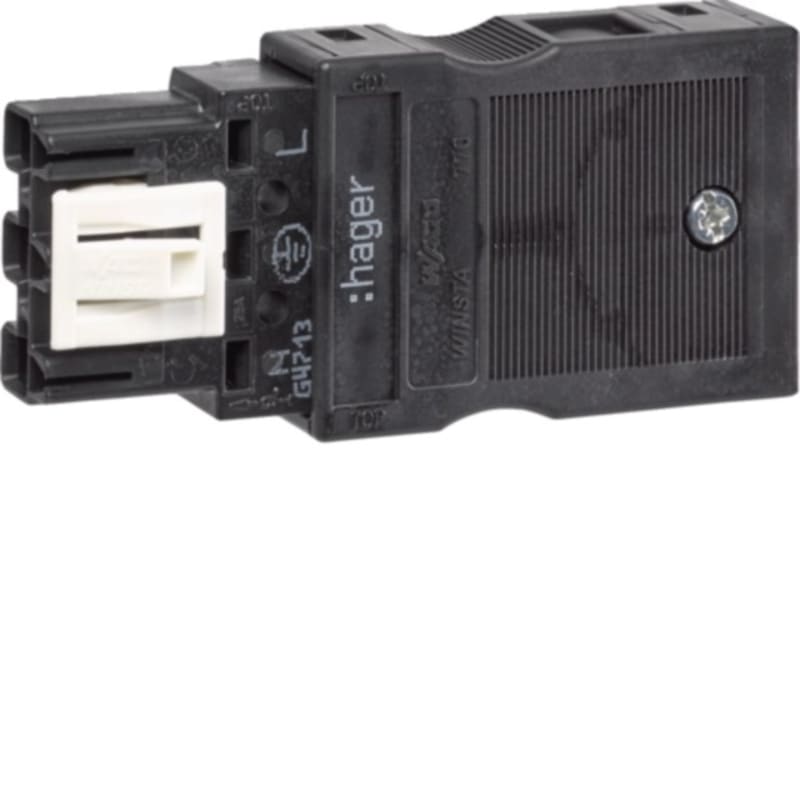

Output Plug 3-Pole (G4713)
Pricing
Request a quote
We reply within 24 hours
Product Description
Plug for to mate videre from outlet, 3-pole.
Technical Specifications
- Manufacturer part number (MPN)
- G4713
- EAN / GTIN
- 4012740849586
- Sales unit
- pcs
- Package quantity
- 25 pcs
- Number of poles
- 3P
- Rated voltage
- 250 V
- Rated current
- 25 A
- Degree of protection (IP)
- IP20
- Connection type
- Spring clamp connection
- Model
- Plug
- Cable diameter
- 11.5 mm
- Connection cross section (fine-strand)
- 0.5–4 mm²
- Number of connections per pole
- 3
- Pole codification
- L, N, PE
- Mechanical coding
- Yes
- Colour coding/contact insert
- Black
- Type of locking
- Integrated in plug-in connector
- With strain relief
- Yes
- Max. continuous temperature resistance contact part
- 85 °C
- Max. continuous temperature resistance strain relief
- 105 °C
- Housing material
- Polyamide (PA)
- Halogen free
- Yes
- Fire load
- 0.127 kWh
- Contact material
- CuSn
- Surface treatment contacts
- Tinned
- Pollution degree
- 3
- Continuity resistance
- 1 mOhm
- Rated surge voltage
- 4 kV
- Length
- 76 mm
- Height
- 15 mm
- Width
- 34.6 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 4012740849586
- SAP 1000007839
- Code 861544
Product Documentation
More from Hager Systemer
Hager Systemer
Rehab.Frame 2-ROW 48 MOD
1728812
Hager Systemer
terminal cover set straight, eff.br 3-Pole H630
HYD021H
Hager Systemer
Cover FOR HA7 120mm, Light grey L=2M
HA71202
Hager Systemer

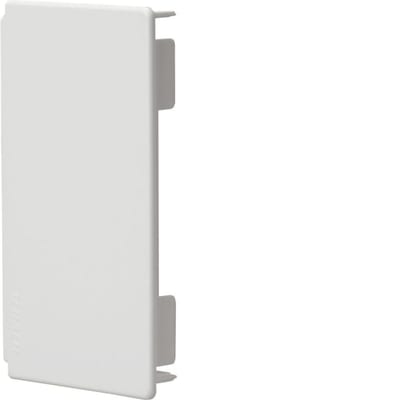

END Cover FOR LF60091 White
LF6009069016
Hager Systemer
Residual current circuit breaker with overcurrent 30MA B-Curve 2X10A 10KA A
ADA210N
Hager Systemer
Residual current circuit breaker with overcurrent 30MA C-Curve 2X20A 10KA A
ADA270N
Hager Systemer

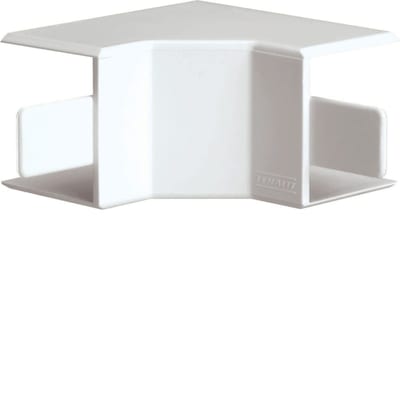

Internal Corner FOR LF30030 White
LF3003049016
Hager Systemer

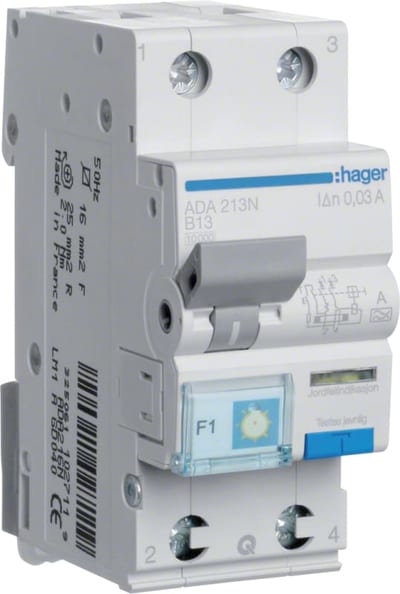

Residual current circuit breaker with overcurrent 30MA B-Curve 2X13A 10KA A
