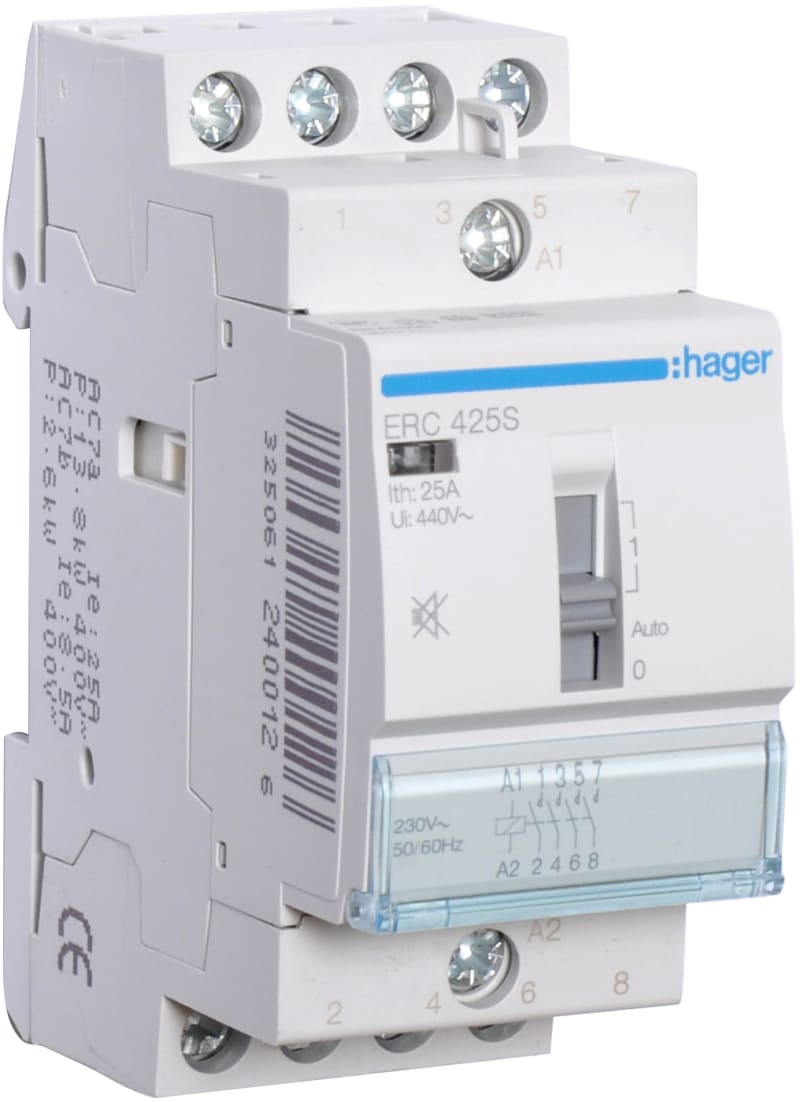

Hager Systemer Modular Contactor 25 A 4NO Hum-Free
Pricing
Request a quote
We reply within 24 hours
Product Description
Hager Systemer ERC425S is a hum-free modular installation contactor rated 25 A at 400 V with four normally open contacts and a 230 V AC coil. A front-mounted manual override slider permits hand switching independent of the coil. The 2-module DIN enclosure carries IP2X protection and supports up to 1900 W incandescent or 950 VA fluorescent lamp loads.
Technical Specifications
- Manufacturer part number (MPN)
- ERC425S
- EAN / GTIN
- 3250612400126
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Utilization category according to EN IEC 60947-4-1
- AC-7a/AC-7b
- Rated operating voltage
- 400 V
- Rated operation current
- 25 A
- Utility category
- 7
- Rated excitation voltage
- 230 V
- Voltage type (operating voltage)
- AC
- Number of contacts as normally open contact
- 4
- Max. incandescent lamp load
- 1900 W
- Max. load fluorescent lamp
- 950 VA
- Slider for hand switch
- Yes
- Width in number of modular spacings
- 2
- Built-in depth
- 60 mm
- Additional equipment possible
- Yes
- With day/night function
- No
- Hum-free
- Yes
- Degree of protection (IP)
- IP2X
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3250612400126
- SAP 1000221686
- Code 8111979
