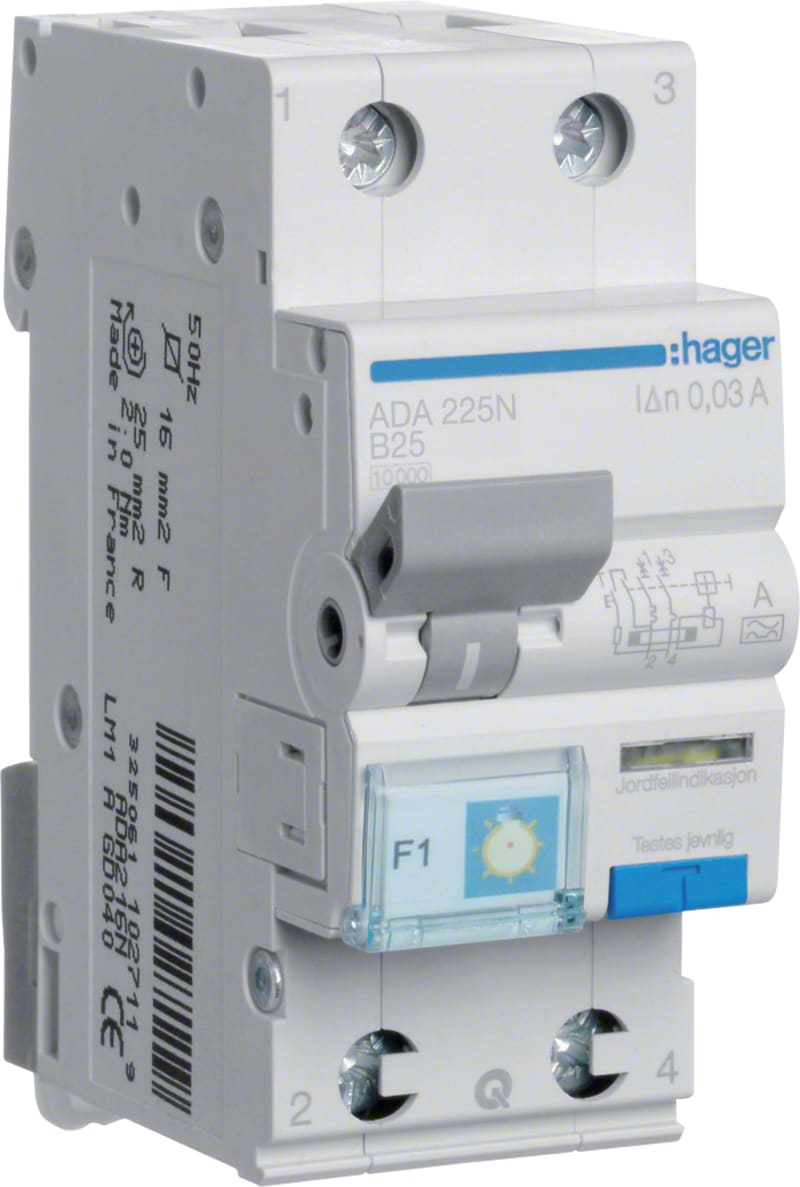

Residual current circuit breaker with overcurrent 30MA B-Curve 2X25A 6KA A
Pricing
Request a quote
We reply within 24 hours
Product Description
Hager Systemer ADA225N Residual current circuit breaker with overcurrent 2-POLE 25A, 30mA, 6kA 2 MODULES.
Technical Specifications
- Manufacturer part number (MPN)
- ADA225N
- EAN / GTIN
- 3250611027133
- HS code
- 8536.90
- Sales unit
- pcs
- Breaking capacity
- 6 kA
- Number of poles (total)
- 2
- Number of protected poles
- 2
- Rated voltage
- 240 V
- Rated insulation voltage Ui
- 500 V
- Rated impulse withstand voltage Uimp
- 4 kV
- Rated current
- 25 A
- Rated fault current
- 0.03 A
- Leakage current type
- A
- Rated short-circuit breaking capacity according to EN 60898
- 6 kA
- Current limiting class
- 3
- Rated short-circuit breaking capacity according to EN 61009
- 4.5 kA
- Disconnection characteristic
- Undelayed
- Surge current capacity
- 4.5 kA
- Voltage type
- AC
- Frequency
- 50 Hz
- Release characteristic
- B
- Concurrently switching neutral conductor
- Yes
- With interlocking device
- Yes
- Overvoltage category
- 3
- Pollution degree
- 2
- Ambient temperature during operating
- -25–40 °C
- Width in number of modular spacings
- 2
- Built-in depth
- 68 mm
- Anti-nuisance tripping version
- No
- Degree of protection (IP)
- IP20
- Connectable conductor cross section solid-core
- 1.5–25 mm²
- Connectable conductor cross section multi-wired
- 1.5–16 mm²
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3250611027133
- SAP 1000088526
- Code 8899433
Product Documentation
More from Hager Systemer
Hager Systemer
Hager Systemer Internal corner for LF 40x60 mm trunking, moulded ABS, traffic white RAL 9016 LF4006049016
Hager Systemer
Open SYS.MOD.DIN-Rails,1H,2F (UD12B1)
Hager Systemer
Residual current circuit breaker with overcurrent 30MA B-Curve 2X16A 10KA A
ADA216N
Hager Systemer
Residual current circuit breaker with overcurrent 30MA B-Curve 2X20A 10KA A
ADA220N
Hager Systemer
Heat Dissipation Spacer, 1/2 Module
LZ060
Hager Systemer
Internal corner BRP Black (BRP651304H9011)
Hager Systemer
Miniature circuit breaker 3X50A, scp-curve, 10KA
NAN350
Hager Systemer
Hager Systemer End Piece BRA65130 White
BR6513069016
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
