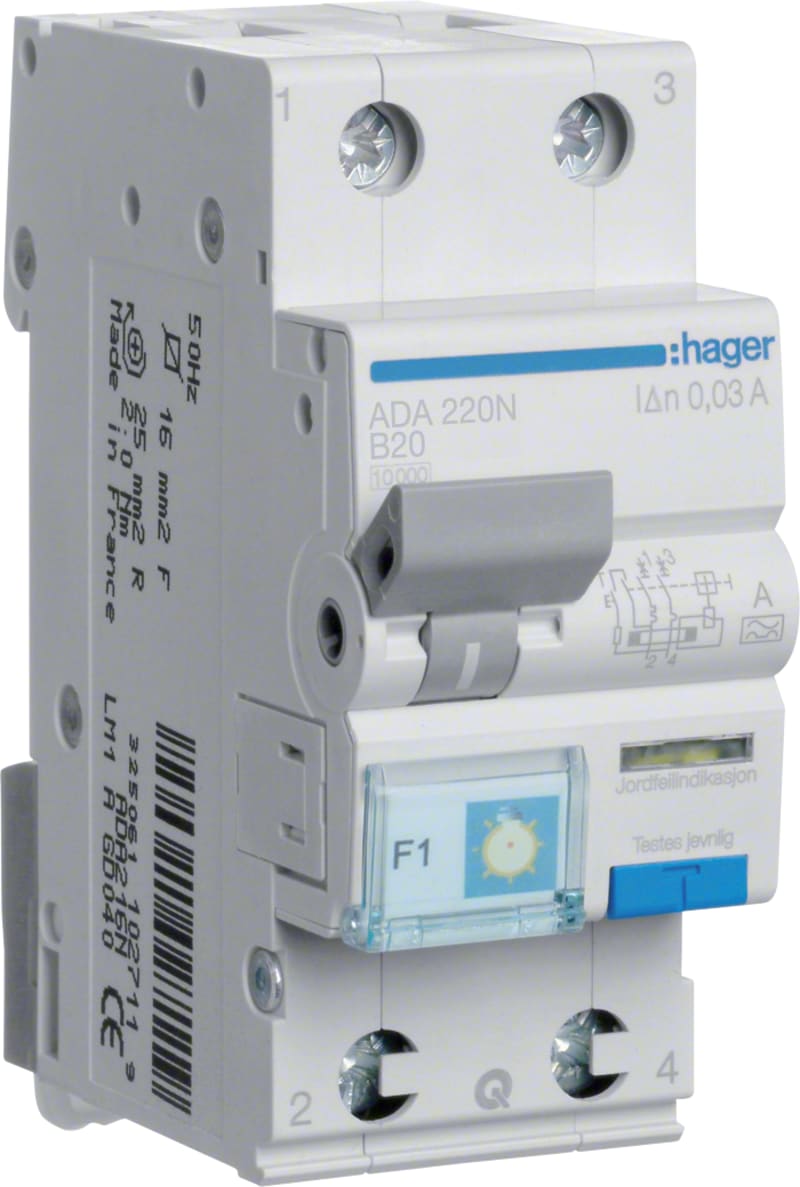

Residual current circuit breaker with overcurrent 30MA B-Curve 2X20A 10KA A
Pricing
Request a quote
We reply within 24 hours
Product Description
Hager Systemer ADA220N Residual current circuit breaker with overcurrent 2-POLE 20A, 30mA, 10kA 2 MODULES.
Technical Specifications
- Manufacturer part number (MPN)
- ADA220N
- EAN / GTIN
- 3250611027126
- HS code
- 8536.90
- Sales unit
- pcs
- Breaking capacity
- 10 kA
- Number of poles (total)
- 2
- Number of protected poles
- 2
- Rated voltage
- 240 V
- Rated insulation voltage Ui
- 500 V
- Rated impulse withstand voltage Uimp
- 4 kV
- Rated current
- 20 A
- Rated fault current
- 0.03 A
- Leakage current type
- A
- Rated short-circuit breaking capacity according to EN 60898
- 10 kA
- Current limiting class
- 3
- Rated short-circuit breaking capacity according to EN 61009
- 7.5 kA
- Disconnection characteristic
- Undelayed
- Surge current capacity
- 4.5 kA
- Voltage type
- AC
- Frequency
- 50 Hz
- Release characteristic
- B
- Concurrently switching neutral conductor
- Yes
- With interlocking device
- Yes
- Overvoltage category
- 3
- Pollution degree
- 2
- Ambient temperature during operating
- -25–40 °C
- Width in number of modular spacings
- 2
- Built-in depth
- 68 mm
- Anti-nuisance tripping version
- No
- Degree of protection (IP)
- IP20
- Connectable conductor cross section solid-core
- 1.5–25 mm²
- Connectable conductor cross section multi-wired
- 1.5–16 mm²
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3250611027126
- SAP 1000088525
- Code 8832707
Product Documentation
