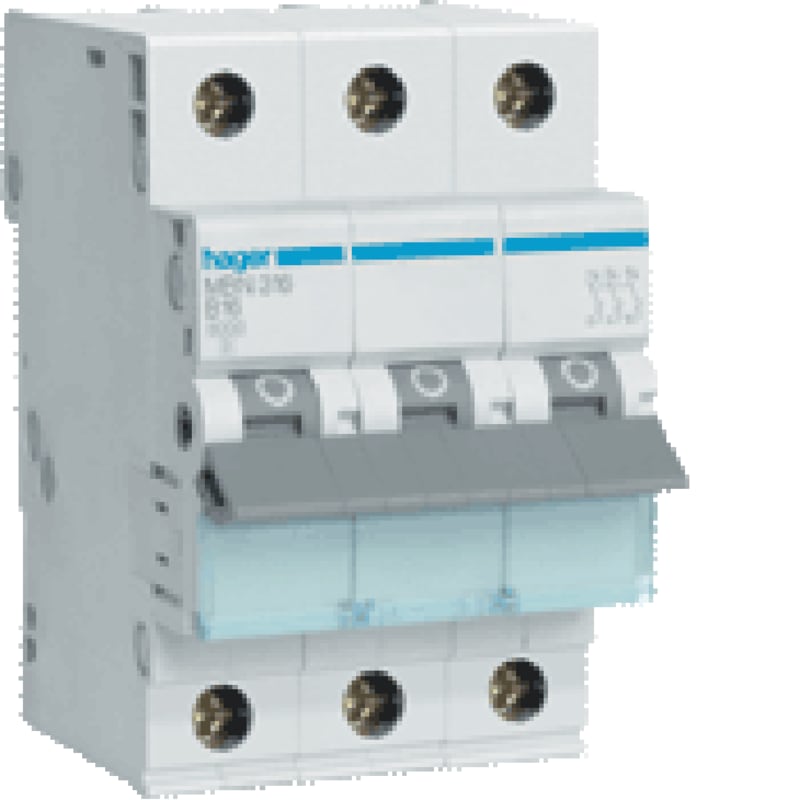

Miniature Circuit Breaker 3X63A B-Curve 10KA
Pricing
Request a quote
We reply within 24 hours
Product Description
Hager Systemer NBN363 Miniature circuit breaker 10kA 3-pole 63A B.
Technical Specifications
- Manufacturer part number (MPN)
- NBN363
- EAN / GTIN
- 3250614614088
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Breaking capacity
- 10 kA
- Power loss
- 19.9 W
- Built-in depth
- 70 mm
- Release characteristic
- B
- Number of poles (total)
- 3
- Number of protected poles
- 3
- Rated current
- 63 A
- Rated voltage
- 400 V
- Rated insulation voltage Ui
- 500 V
- Rated impulse withstand voltage Uimp
- 6 kV
- Frequency
- 50–60 Hz
- Current limiting class
- 3
- Concurrently switching neutral conductor
- No
- Overvoltage category
- 3
- Pollution degree
- 2
- Additional equipment possible
- Yes
- Width in number of modular spacings
- 3
- Degree of protection (IP)
- IP20
- Ambient temperature during operating
- -25–70 °C
- Connectable conductor cross section multi-wired
- 1–25 mm²
- Connectable conductor cross section solid-core
- 1–35 mm²
- Explosion-proof
- No
- Flush-mounted installation
- Yes
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3250614614088
- SAP 1000064618
- Code 8904022
Product Documentation
More from Hager Systemer
Hager Systemer
Residual Current Circuit Breaker 4X63A 30MA A
CDA463N
Hager Systemer
PE/N Railholder 2 pcs
UZ61S2
Hager Systemer
Miniature Circuit Breaker 2X16A C-Curve 10KA
NCN216
Hager Systemer
Flat angle FOR LF40060 White
LF4006059016
Hager Systemer
Hager Systemer Slotted panel trunking made of PVC BA7 80X25MM grey BA780025
Hager Systemer
Open SYS.MOD.DIN-Rails,2H,1F (UD21B1)
Hager Systemer
Hager Systemer External corner for LFF 40x60 mm trunking, moulded ABS, black RAL 9011 LFF4006039011
Hager Systemer
Dimmer Universal Comfort 300W
EVN012
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NBN363?
- NBN363 can be ordered from cballast.com as a Hager Systemer catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Hager Systemer product?
- The manufacturer part number is NBN363.
- What is the HS code for NBN363?
- The customs tariff (HS) code for NBN363 is 8536.90.
- Who manufactures NBN363?
- NBN363 is a Hager Systemer product in the Electrical Components range.
- Is a datasheet available for NBN363?
- Yes — the NBN363 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NBN363?
- The minimum order quantity is 1.
- Is NBN363 available?
- Yes — NBN363 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
