Residual Current Circuit Breaker 4X63A 30MA A
Pricing
Request a quote
We reply within 24 hours
Product Description

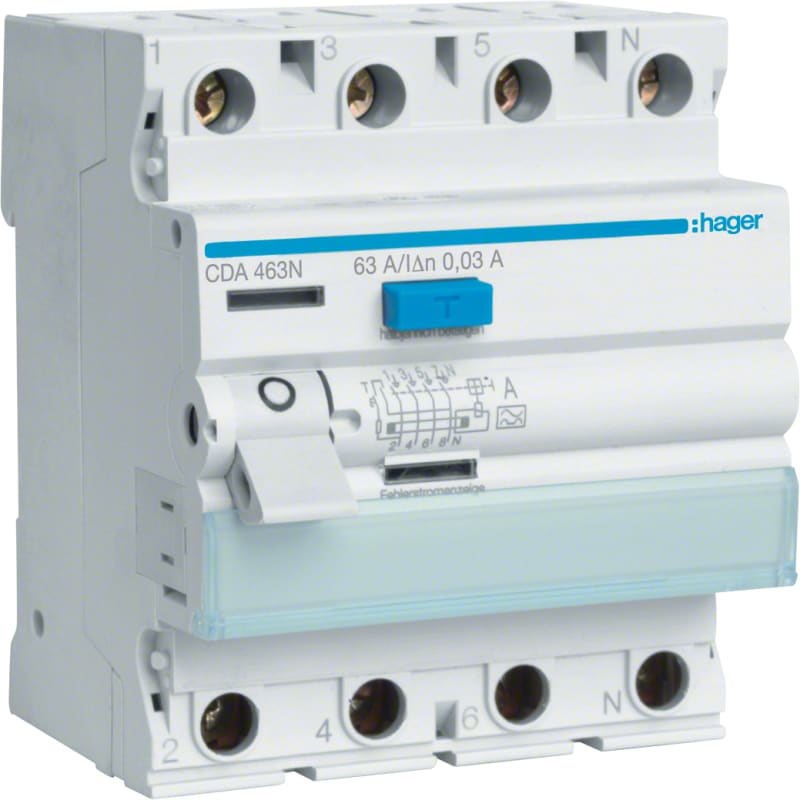

Hager Systemer CDA463N Residual current circuit breaker 4x63A 30mA.
Technical Specifications
- Manufacturer part number (MPN)
- CDA463N
- EAN / GTIN
- 3250611616818
- HS code
- 8536.90
- Sales unit
- pcs
- Nominal voltage
- 220–400 V
- Nominal current
- 63 A
- Rated fault current adjustable
- No
- Rated fault current
- 30 A
- Delay adjustable
- No
- Number of poles
- 4
- Leakage current type
- A
- Surge current capacity
- 4.5 kA
- Frequency
- 50 Hz
- Rated insulation voltage Ui
- 500 V
- Rated impulse withstand voltage Uimp
- 4 kV
- Connectable conductor cross section solid-core
- 1.5–25 mm²
- Connectable conductor cross section multi-wired
- 1.5–16 mm²
- Anti-nuisance tripping version
- No
- With interlocking device
- Yes
- Degree of protection (IP)
- IP20
- Ambient temperature during operating
- -25–40 °C
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3250611616818
- SAP 1000017194
- Code 8141796
Product Documentation
More from Hager Systemer
Hager Systemer
PE/N Railholder 2 pcs
UZ61S2
Hager Systemer
Miniature Circuit Breaker 2X16A C-Curve 10KA
NCN216
Hager Systemer
Flat angle FOR LF40060 White
LF4006059016
Hager Systemer
Hager Systemer Slotted panel trunking made of PVC BA7 80X25MM grey BA780025
Hager Systemer
Open SYS.MOD.DIN-Rails,2H,1F (UD21B1)
Hager Systemer

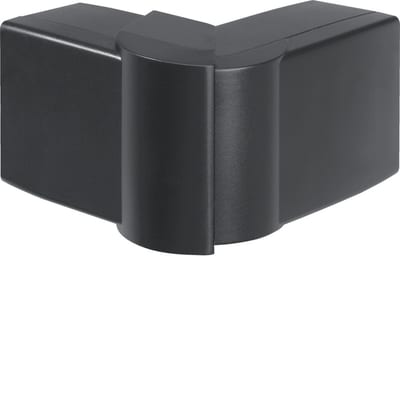

Hager Systemer External corner for LFF 40x60 mm trunking, moulded ABS, black RAL 9011 LFF4006039011
