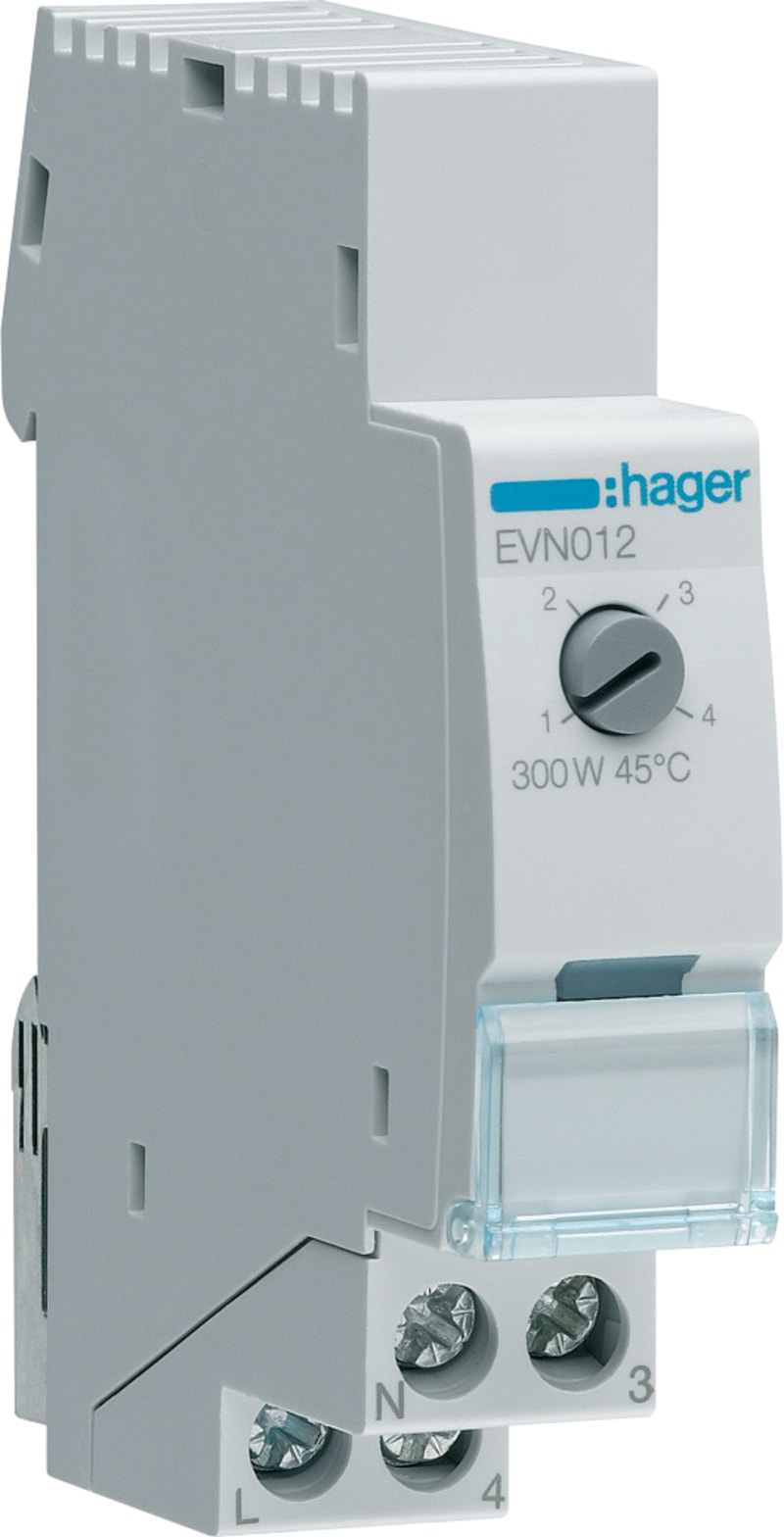

Dimmer Universal Comfort 300W
Pricing
Request a quote
We reply within 24 hours
Product Description
Hager Systemer EVN012 Dimmer Universal Comfort 300W Cabinet-mounted 1 Module.
Technical Specifications
- Manufacturer part number (MPN)
- EVN012
- EAN / GTIN
- 3250617573924
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Power
- 300 W
- Mounting method
- DRA (DIN-rail adaptor)
- Assembly arrangement
- Basic element
- Method of operation
- Turn/push button
- Colour
- Grey
- Halogen free
- No
- Number of units
- 1
- Connection type
- Screwed terminal
- Surface protection
- Untreated
- Power consumption
- 0.2 W
- Frequency
- 50–60 Hz
- Type of load
- Universal
- Material
- Plastic
- Type of fastening
- Mounting with screw
- Light value memory
- Yes
- Substation input
- No
- RAL-number (similar)
- 7035
- Serial dimmer
- Yes
- Applicable with movement sensor
- No
- Applicable with transmission button
- No
- Applicable with infrared button
- No
- Applicable with presence indicator
- No
- Applicable with button
- Yes
- Applicable with time switch/timer
- Yes
- Impact strength
- IK04
- Nominal power
- 300 VA
- Nominal voltage
- 230 V
- Control voltage
- 195.5–253 V
- Transparent
- No
- Surface finishing
- Matt
- Suitable for degree of protection (IP)
- IP20
- Core cross section
- 1.5–6 mm²
- Device width
- 17.5 mm
- Device height
- 90 mm
- Device depth
- 65 mm
- Constant light output (CLO)
- Yes
- Number of modules (module system)
- 1
- IFTTT support available
- No
- Dimming phase cut-off (trailing edge)
- Yes
- Dimming phase cut-on (leading edge)
- Yes
- Min. depth of built-in installation box
- 0 mm
- App control via Bluetooth
- No
- Nominal power resistive load
- 300 W
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Max. switching power LED
- 60 W
- Min. brightness controllable
- Yes
- Device emplacement
- Indoor positioning
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3250617573924
- SAP 1000481073
- Code 8862937
Product Documentation
