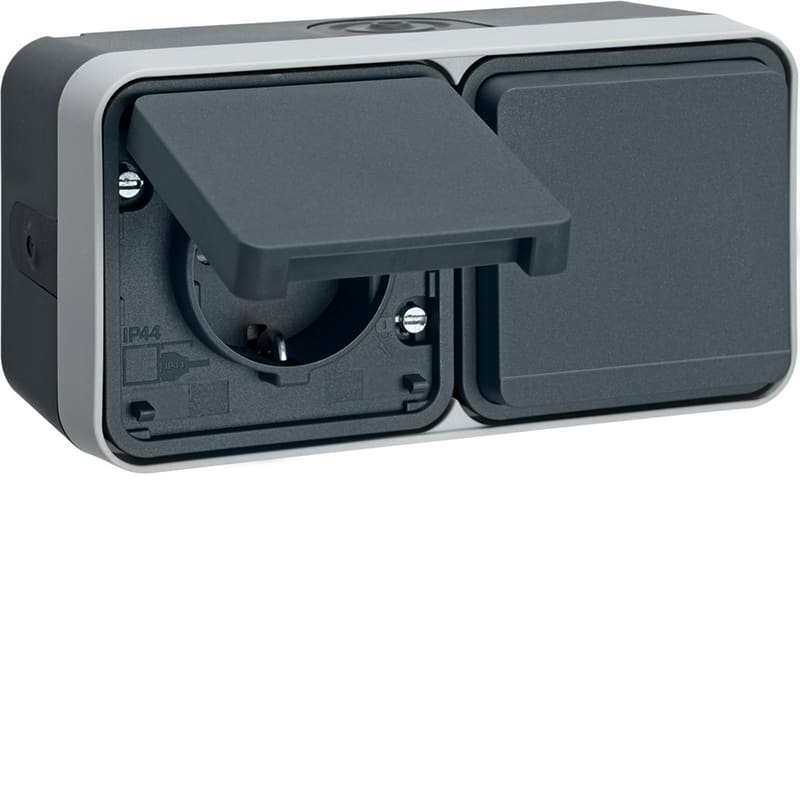

Double socket with cover IP55 grey
Pricing
Request a quote
We reply within 24 hours
Product Description
Hager Systemer 47753545 Double socket with klapplokk IP55 grey colour.
Technical Specifications
- Manufacturer part number (MPN)
- 47753545
- EAN / GTIN
- 4011334442202
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 5 pcs
- IP rating
- IP55
- Nominal current
- 16 A
- Nominal voltage
- 250 V
- Mounting method
- Surface mounted
- Colour
- Grey
- Model
- Protective contact CEE 7/3 / CEE 7/4 (type F)
- Halogen free
- Yes
- Cover
- Complete housing
- Number of units
- 2
- Lockable
- No
- With hinged lid
- Yes
- Connection type
- Screwed terminal
- Surface protection
- Untreated
- With signal lamp
- No
- Number of phases
- 1
- With enhanced contact protection
- No
- Frequency
- 50–60 Hz
- With on/off switch
- No
- Protective contact
- Yes
- Label space/information surface
- No
- Eject-mechanism
- No
- Material quality
- Thermoplastic
- Rotated central insert
- No
- Overvoltage protection
- No
- Fault current protection
- No
- Special power supply
- No special power supply
- Insulated mounting
- Yes
- Material
- Plastic
- Type of fastening
- Mounting with claw and screw
- Imprint/indication
- None
- RAL-number (similar)
- 7011
- Impact strength
- IK05
- Transparent
- No
- Surface finishing
- Matt
- With miniature fuse
- No
- With loop through function
- No
- Suitable for degree of protection (IP)
- IP55
- Device width
- 76 mm
- Device height
- 147 mm
- Device depth
- 65 mm
- With function lighting
- No
- With orientation lighting
- No
- With built-in USB power supply
- No
- IFTTT support available
- No
- Number of active contacts (round)
- 2
- Protective earth pin round
- No
- Min. depth of built-in installation box
- 0 mm
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Metallic colour
- No
- Anti-bacterial treatment
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011334442202
- SAP 1000696717
- Code 8410990
Product Documentation
