Hager Systemer
Hager Systemer Trunking made of PVC LF 15X15MM traffic white LF1501509016
Part numberLF1501509016EAN / GTIN4012740011501HS code3925.90
Control & Automation
Conduit & Trunking
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

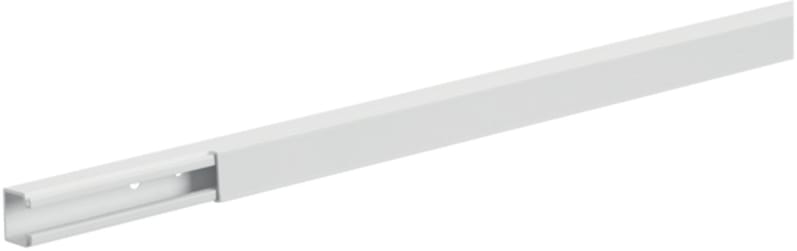

Hager Systemer LF1501509016 Mini Trunking 15x15mm white.
Technical Specifications
- Manufacturer part number (MPN)
- LF1501509016
- EAN / GTIN
- 4012740011501
- Sales unit
- m
- Package quantity
- 44 m
- Dimensions
- 15x15 mm
- Height
- 15 mm
- Width
- 15 mm
- Length
- 2000 mm
- Inner cross-section
- 150 - 150 mm²
- Type of lid
- Premounted
- Max. number of cables (Ø11mm, 50% filled, without devices)
- 1
- Material
- Polyvinylchloride (PVC)
- Treatment
- Untreated
- RAL code
- 9016
- Colour
- Traffic white
- Transparent
- No
- Impact resistance IK
- IK06
- Ingress Protection (IP) class
- IP30
- Suitable for functional integrity according to DIN4102-12
- No
- Operating temperature
- -5 - 60 °C
- Trunking coupling
- Without coupling
- Number of partitions
- 0
- Number of compartments
- 1 - 1
- Cable retaining clip included
- No
- Number of cable retainers per meter
- 0
- With protective film
- No
- With antibacterial treatment
- No
- Delivery on roll
- No
- Halogen free
- No
- RAL-number
- 9016
- Surface protection
- Untreated
- Pre-stamping
- No
- Material quality
- Polyvinyl chloride (PVC)
- Type of fastening
- Bottom perforation
- Impact strength
- IK06
- With cable fixing clip
- No
- With duct connector
- No
- Usable cross section
- 150 mm²
- With protective foil
- No
- Degree of protection (IP)
- IP30
- Suitable for circuit integrity
- No
- Cover model
- Loose
- Anti-bacterial treatment
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 3925.90
Cross References
- EAN 4012740011501
- SAP 1200495674
- Code 82617142
Product Documentation
Document preview: Hager Systemer Trunking made of PVC LF 15X15MM traffic white LF1501509016 — Specification sheet
