Hager Systemer

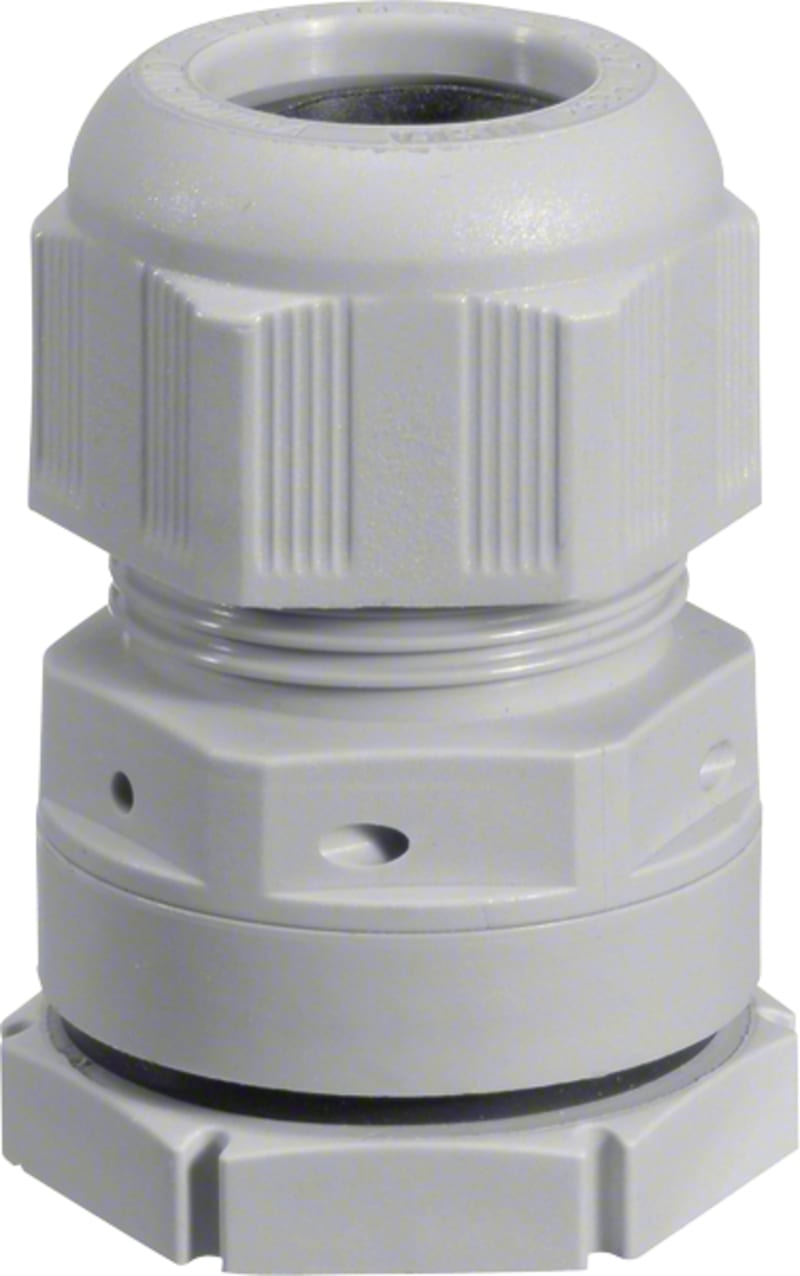

Ventilation Gland IP66 M20
Part numberVZ020DEAN / GTIN3250616669581HS code3925.90
Electrical Components
Cable Glands
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Hager Systemer VZ020D Ventilation Gland diameter 20 Ø, for utlufting of IP65 cabinet.
Technical Specifications
- Manufacturer part number (MPN)
- VZ020D
- EAN / GTIN
- 3250616669581
- Sales unit
- pcs
- IP rating
- IP66
- Thread type
- Metric
- Nominal thread size metric/PG
- 20
- Thread length
- 8 mm
- Wrench width
- 27 mm
- Hexagon angular dimension
- 27 mm
- Suitable for cable diameter
- 6–13 mm
- Material
- Plastic
- Material quality
- Polyamide (PA)
- Surface protection
- Untreated
- Halogen free
- Yes
- Glass-fibre reinforced
- No
- Degree of protection (IP)
- IP65
- Shock resistant
- Yes
- RAL-number
- 7035
- Bend radius protection/trumpet flare
- Yes
- With locknut
- Yes
- Snapping in opening
- No
- Multi seal area
- No
- Flat cable coupling
- No
- With strain relief
- Yes
- Separable screw gland
- No
- Operating temperature
- -25–40 °C
- Explosion-tested version
- No
- For Ex-zone dust
- None
- For armoured cable
- No
- Screened
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 3925.90
Cross References
- EAN 3250616669581
- SAP 1000731294
- Code 837886
Product Documentation
Document preview: Ventilation Gland IP66 M20 (VZ020D) — Specification sheet
More from Hager Systemer
Hager Systemer
Data single RJ45 CAT.6 UTP
WXF225
Hager Systemer
Internal corner BRP65100 white
BRP651004H9016
Hager Systemer
Mini Trunking ATA 16X30MM 2,1M PVC White
ATA163009016B
Hager Systemer
WALL-Mount Cabinet 800X550X205MM IP44
FP52SN2
Hager Systemer
Fuse D02 35A 400V GG M.Sign
LE1835
Hager Systemer

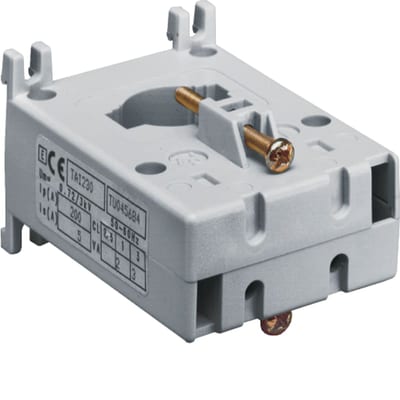

Hager SR200 Attachable Current Transformer 200/5 A, Class 1
