Floor Box VEQ06, stainless steel
Pricing
Request a quote
We reply within 24 hours
Product Description

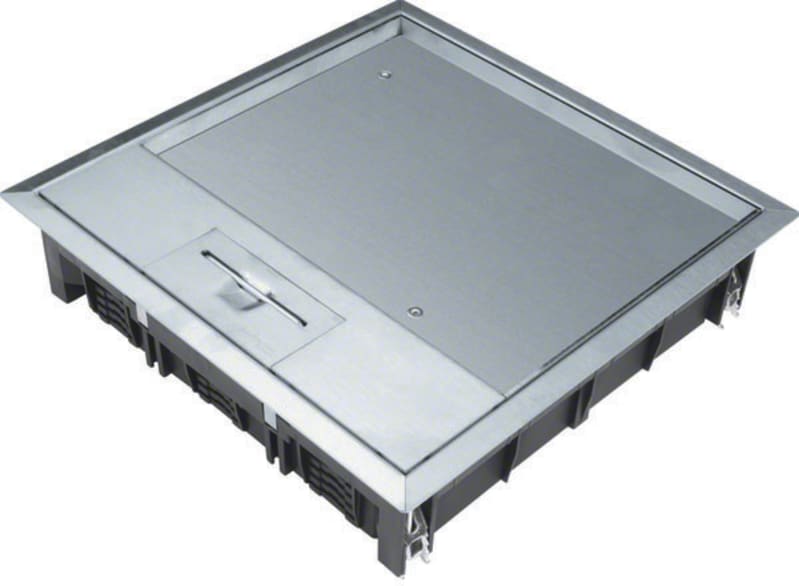

Hager Systemer VEQ0612E Floor Box VEQ06, stainless steel.
Technical Specifications
- Manufacturer part number (MPN)
- VEQ0612E
- EAN / GTIN
- 4012002247617
- Sales unit
- pcs
- Number of device cups
- 2
- Housing material
- Stainless steel
- Material
- Stainless steel
- Number of inlets
- 1
- Suitable for concrete installation
- Yes
- With opening carpeting
- Yes
- Protective frame carpeting
- Yes
- Width outside dimension
- 223 mm
- Width built-in dimension
- 200 mm
- Length external dimension
- 223 mm
- Length built-in dimension
- 200 mm
- Min. built-in depth
- 84 mm
- Suitable for wet cleaning
- No
- Depth of flooring recess
- 12 mm
- Material cover
- Plastic
- Degree of protection (IP)
- IP20
- Suitable for subfloor duct
- Yes
- Suitable for hollow floor
- Yes
- Suitable for double floor built-in
- Yes
- Cover model
- Square
- Suitable for indoor installation
- Yes
- Suitable for outdoor installation
- No
- Surface treatment cover
- Brushed
- With cable outlet in cover
- Yes
- Suitable for floors in computer rooms
- Yes
- Lockable cover
- Yes
- Cover load
- 1.5 kN
- Surface protection housing
- Galvanised
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 3925.90
Cross References
- EAN 4012002247617
- SAP 1000505475
- Code 8896626
Product Documentation
More from Hager Systemer
Hager Systemer

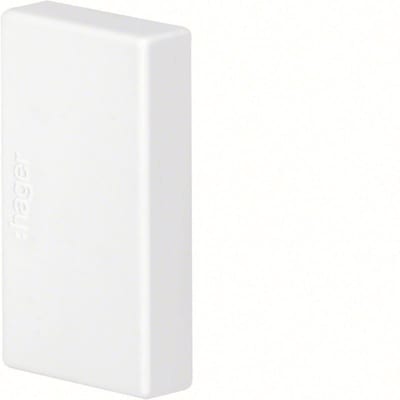

End cover 20X35 LFE WHITE
LFE2003569016
Hager Systemer

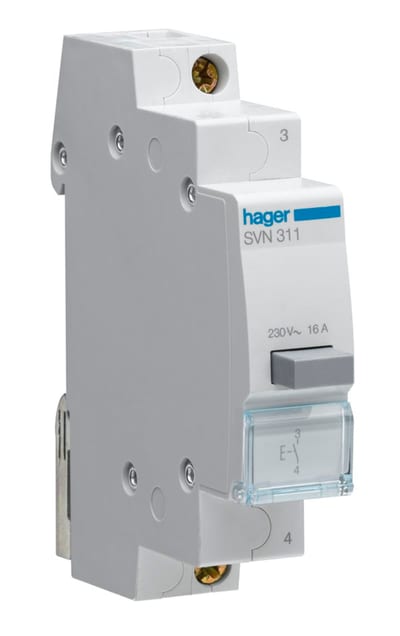

Impulse Switch, 1-Mod, 1X16A, 230VAC
SVN311
Hager Systemer

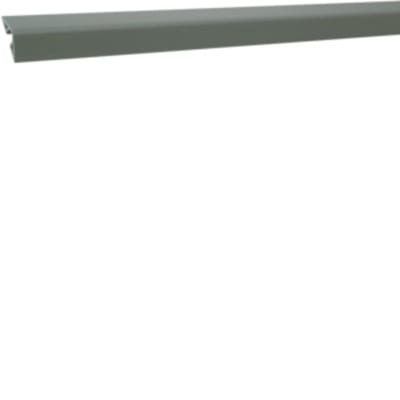

Floor Trunking 11X41MM GREY L=2
