Hager Systemer

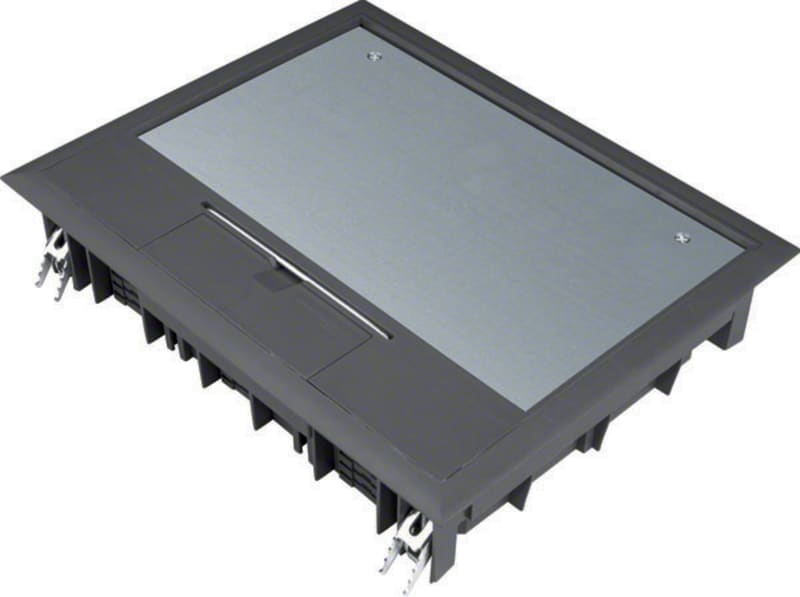

Floor Box VE09, 5mm cover, black
Part numberVE09059005EAN / GTIN4012002244418HS code3925.90
Enclosures
Distribution Boards
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Hager Systemer VE09059005 Floor Box VE09, 5mm cover, black.
Technical Specifications
- Manufacturer part number (MPN)
- VE09059005
- EAN / GTIN
- 4012002244418
- Sales unit
- pcs
- Package quantity
- 30 pcs
- Colour
- Black
- RAL-number
- 9005
- Number of device cups
- 3
- Housing material
- Plastic
- Material
- Polyamide (PA)
- Number of inlets
- 1
- Suitable for concrete installation
- Yes
- With opening carpeting
- Yes
- Protective frame carpeting
- Yes
- Width outside dimension
- 272 mm
- Width built-in dimension
- 253 mm
- Length external dimension
- 219 mm
- Length built-in dimension
- 200 mm
- Min. built-in depth
- 77 mm
- Suitable for wet cleaning
- No
- Depth of flooring recess
- 12 mm
- Material cover
- Plastic
- Degree of protection (IP)
- IP20
- Suitable for subfloor duct
- Yes
- Suitable for hollow floor
- Yes
- Suitable for double floor built-in
- Yes
- Outer width
- 272 mm
- Cover model
- Rectangular
- Suitable for indoor installation
- Yes
- Suitable for outdoor installation
- No
- With cable outlet in cover
- Yes
- Suitable for floors in computer rooms
- Yes
- Lockable cover
- Yes
- Degree of protection (IP) when in use (cable outlet open)
- IP20
- Outer length
- 219 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 3925.90
Cross References
- EAN 4012002244418
- SAP 1000505385
- Code 8751546
Product Documentation
Document preview: Floor Box VE09, 5mm cover, black (VE09059005) — Specification sheet
More from Hager Systemer
Hager Systemer
Floor Box VE09, 12mm cover black
VE09129005
Hager Systemer

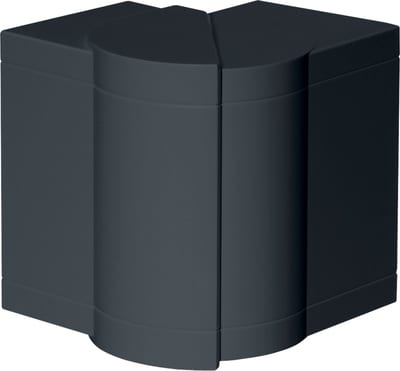

External corner BRP 100 black
BRP651003H9011
Hager Systemer
Floor Box VE09, 5mm cover, grey
VE09057011
Hager Systemer

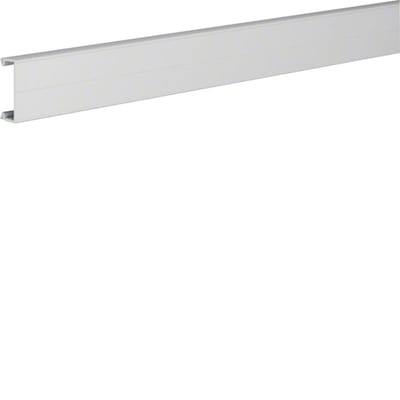

Cover FOR HA7 40/60/80X40 L.GREY L=2M
HA70402
Hager Systemer

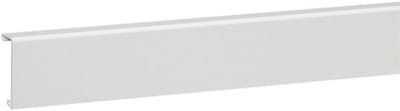

Hager Systemer Trunking lid SL20055 traffic white SL2005529016
Hager Systemer

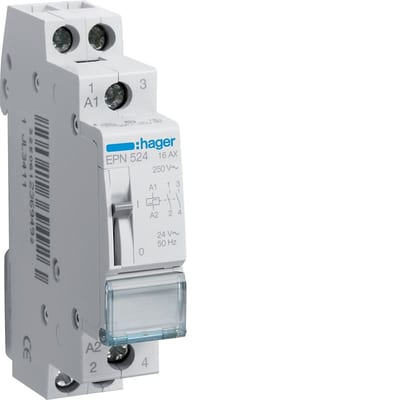

Hager Systemer Impulse Relay 24V 16A 2S
EPN524
Hager Systemer

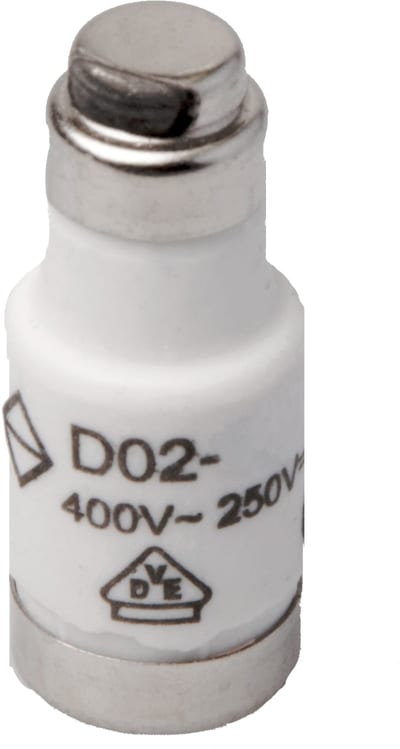

Fuse D02 32A 400V GG M.Sign
