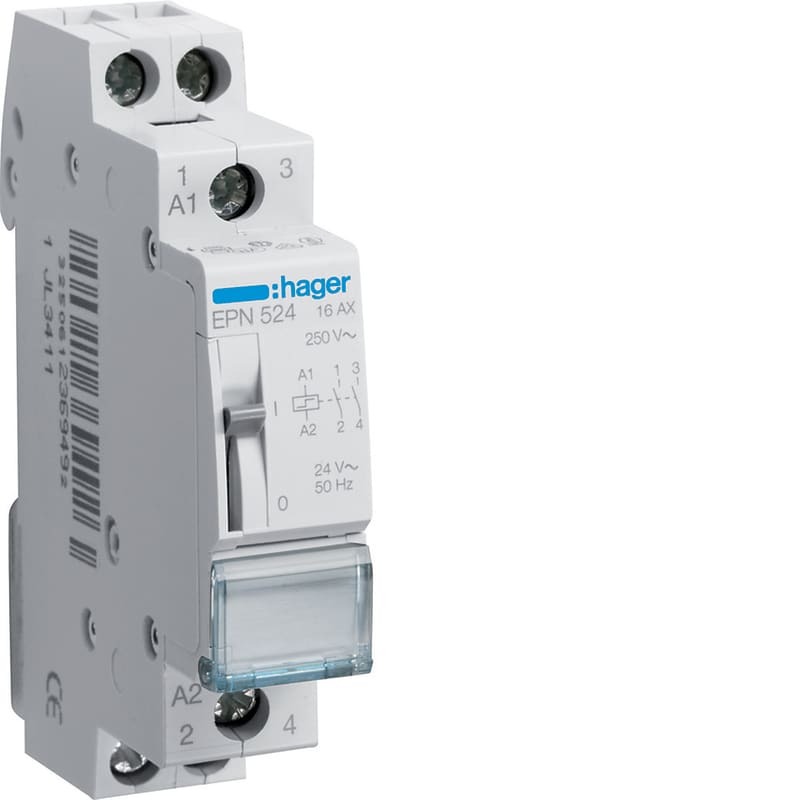

Hager Systemer Impulse Relay 24V 16A 2S

Hager Systemer EPN524 is a mechanical impulse relay rated 24 V, 16 A with 2 normally open contacts, for DIN rail mounting. Occupies 17.5 modular spacings and supports 24 V AC or 12 V DC control voltage at 50–60 Hz, with a 250 V AC supply. Suitable for staircase and corridor lighting control from multiple locations.

Manufacturer part number (MPN)

EPN524

EAN / GTIN

3250612369492

Sales unit

pcs

Package quantity

12 pcs

Voltage

24 V

Rated current

16 A

Mounting method

DIN rail

Function

Mechanical switch

Built-in depth

63 mm

Width in number of modular spacings

17.5

Control voltage 1

24 V

Control voltage 2

12 V

Type of control voltage 1

AC

Type of control voltage 2

DC

Frequency control voltage 1

50–60 Hz

Frequency control voltage 2

50–60 Hz

Suitable for manual operation

Yes

Voltage type (supply voltage)

AC

Supply voltage

250 V

Max. switching current (cos phi = 0.6)

16 A

Max. incandescent lamp load

1800 W

Max. load fluorescent lamp

800 VA

Rated switch current

16 A

Number of contacts as normally open contact

2

Country of origin

Poland

HS Code

8536.49
