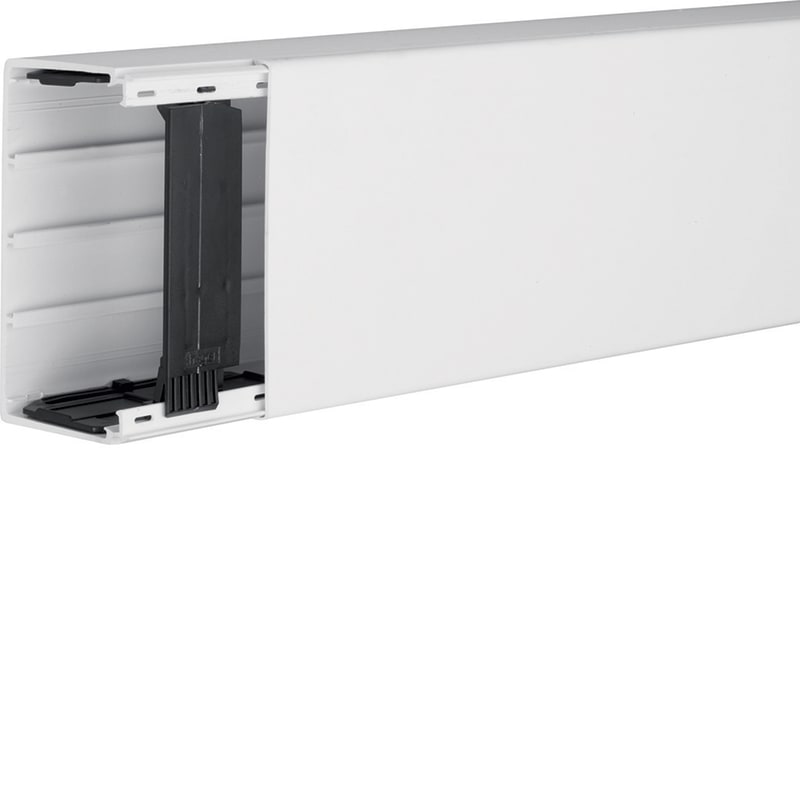

Hager Systemer LF-trunking halogenfr.LFH 60X110MM traffic white LFH6011009016
Pricing
Request a quote
We reply within 24 hours
Product Description
Hager Systemer LFH6011009016 Channel 60x110mm halogen-free white, LFH6011009016, 2 meter.
Technical Specifications
- Manufacturer part number (MPN)
- LFH6011009016
- EAN / GTIN
- 4012740008204
- Sales unit
- m
- Package quantity
- 16 m
- Dimensions
- 60x110 mm
- Height
- 60 mm
- Width
- 110 mm
- Length
- 2000 mm
- Inner cross-section
- 5460 - 5460 mm²
- Type of lid
- Loose
- Max. number of cables (Ø11mm, 50% filled, without devices)
- 23
- Material
- PC-ABS
- Treatment
- Untreated
- RAL code
- 9016
- Colour
- Traffic white
- Transparent
- No
- Impact resistance IK
- IK07
- Ingress Protection (IP) class
- IP30
- Suitable for functional integrity according to DIN4102-12
- No
- Operating temperature
- -5 - 90 °C
- Trunking coupling
- Pre-equipped with couplers
- Number of partitions
- 0
- Number of compartments
- 1 - 1
- Number of pluggable partitions
- 3
- Cable retaining clip included
- Yes
- Number of cable retainers per meter
- 2
- With protective film
- No
- With antibacterial treatment
- No
- Delivery on roll
- No
- Halogen free
- Yes
- RAL-number
- 9016
- Surface protection
- Untreated
- Pre-stamping
- No
- Type of fastening
- Bottom perforation
- Impact strength
- IK07
- Number of plug-in partitions
- 3
- With cable fixing clip
- No
- With duct connector
- Yes
- Usable cross section
- 5460 mm²
- With protective foil
- No
- Degree of protection (IP)
- IP30
- Suitable for circuit integrity
- No
- Cover model
- Loose
- Anti-bacterial treatment
- No
- Country of origin
- Germany
