Floor Box VE09, 5mm cover, grey
Pricing
Request a quote
We reply within 24 hours
Product Description

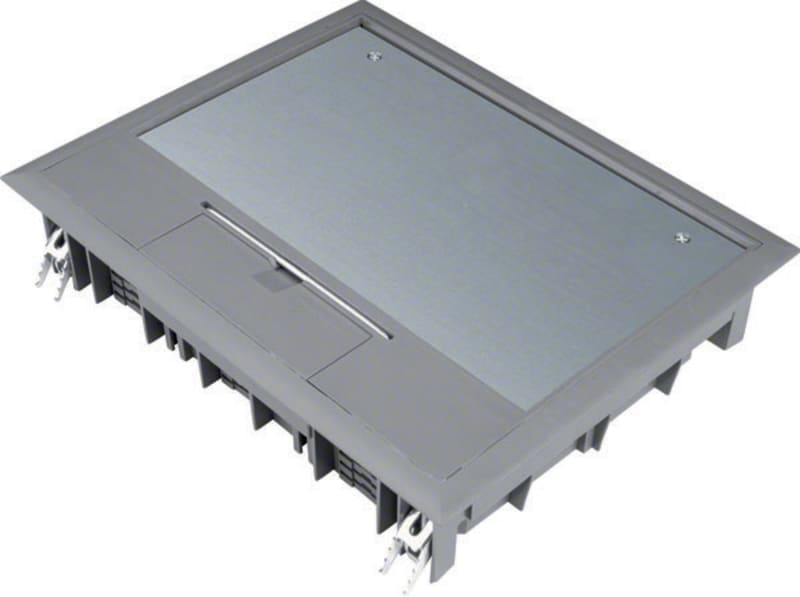

Hager Systemer VE09057011 Floor Box VE09, 5mm cover, grey.
Technical Specifications
- Manufacturer part number (MPN)
- VE09057011
- EAN / GTIN
- 4012002244401
- Sales unit
- pcs
- Package quantity
- 30 pcs
- Colour
- Grey
- RAL-number
- 7011
- Number of device cups
- 3
- Housing material
- Plastic
- Material
- Polyamide (PA)
- Number of inlets
- 1
- Suitable for concrete installation
- Yes
- With opening carpeting
- Yes
- Protective frame carpeting
- Yes
- Width outside dimension
- 272 mm
- Width built-in dimension
- 253 mm
- Length external dimension
- 219 mm
- Length built-in dimension
- 200 mm
- Min. built-in depth
- 77 mm
- Suitable for wet cleaning
- No
- Depth of flooring recess
- 5 mm
- Material cover
- Plastic
- Degree of protection (IP)
- IP20
- Suitable for subfloor duct
- Yes
- Suitable for hollow floor
- Yes
- Suitable for double floor built-in
- Yes
- Outer width
- 272 mm
- Cover model
- Rectangular
- Suitable for indoor installation
- Yes
- Suitable for outdoor installation
- No
- With cable outlet in cover
- Yes
- Suitable for floors in computer rooms
- Yes
- Lockable cover
- Yes
- Degree of protection (IP) when in use (cable outlet open)
- IP20
- Outer length
- 219 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 3925.90
Cross References
- EAN 4012002244401
- SAP 1000505384
- Code 8896391
Product Documentation
