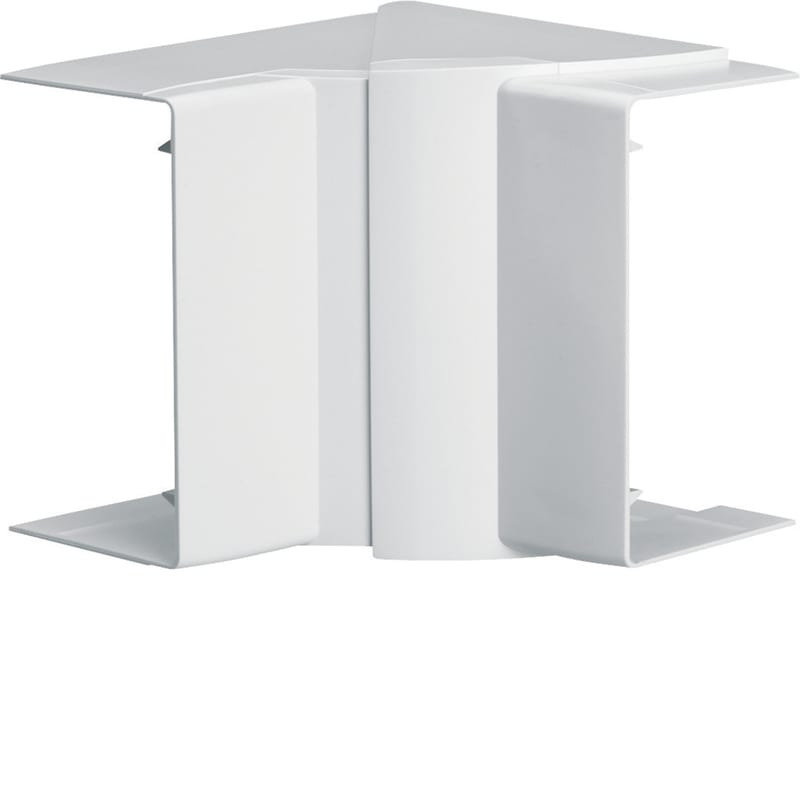

Hager Systemer Internal corner for LFF 60x90 mm trunking, moulded ABS, traffic white RAL 9016, adjustable 83...97 deg LFF6009049016
Pricing
Request a quote
We reply within 24 hours
Product Description
Moulded internal corner hood for Hager tehalit LFF trunking in the 60x90 mm size (fits LFF 60x90, LFH 60x90). Part dimensions 60 mm x 90 mm, measurement a 135 mm. Covers a wall angle of 83 to 97 deg, with an overlapping edge that hides the cut ends of the channel. PC-ABS. Traffic white, RAL 9016, untreated. Impact resistance IK07. Operating temperature -5 to 90 °C. Halogen free. Click mounting. Not rated for circuit or functional integrity to DIN 4102-12. Supplied in packs of 5 pcs. Country of origin Germany. HS code 3925.90. Hager reference: SAP 1200495766, code 82617262.
Technical Specifications
- Manufacturer part number (MPN)
- LFF6009049016
- EAN / GTIN
- 4012740013338
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Type of accessory
- Moulded
- Angle range
- 83 - 97
- Height
- 60 mm
- Width
- 90 mm
- Measurement a
- 135 mm
- Material
- PC-ABS
- Treatment
- Untreated
- Colour
- Traffic white
- RAL code
- 9016
- Impact resistance IK
- IK07
- Suitable for functional integrity according to DIN4102-12
- No
- Operating temperature
- -5 - 90 °C
- With protective film
- No
- Overlapping
- Yes
- Mounting type
- Click mounting
- Related Series
- LFF 60x90, LFH 60x90
- Model
- Moulded hood
- Halogen free
- Yes
- RAL-number
- 9016
- Surface protection
- Untreated
- Type of fastening
- Snap on
- Impact strength
- IK07
- With protective foil
- No
- Angle
- 83–97 °
- Suitable for circuit integrity
- No
- Anti-bacterial treatment
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 3925.90
Cross References
- EAN 4012740013338
- SAP 1200495766
- Code 82617262
Product Documentation
More from Hager Systemer
Hager Systemer
Circuit breaker TM 3X101-160A 40K (HNA160H)
Hager Systemer
Slisset CABLE TRUNKING,32X18MM 1 Pcs=2 M
BA63001507030B
Hager Systemer
Slotted WIRING DUCT,40X40MM BLUE 2M
BA740040BL
Hager Systemer
Miniature circuit breaker 4X100A, c-kar 15KA, 6-Mod
HMC490
Hager Systemer
univers N kit, montplate data, H600XB250
UD41M1
Hager Systemer
Flat angle FOR LF/FB60110 White
LF6011059016
Hager Systemer
Isopor, VR10 round 275mm H=200
SEVR10200
Hager Systemer

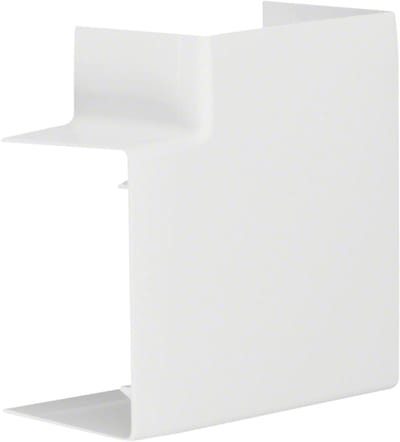

Flat angle / L angle for LF 60X90 WHITE
