Hager Systemer

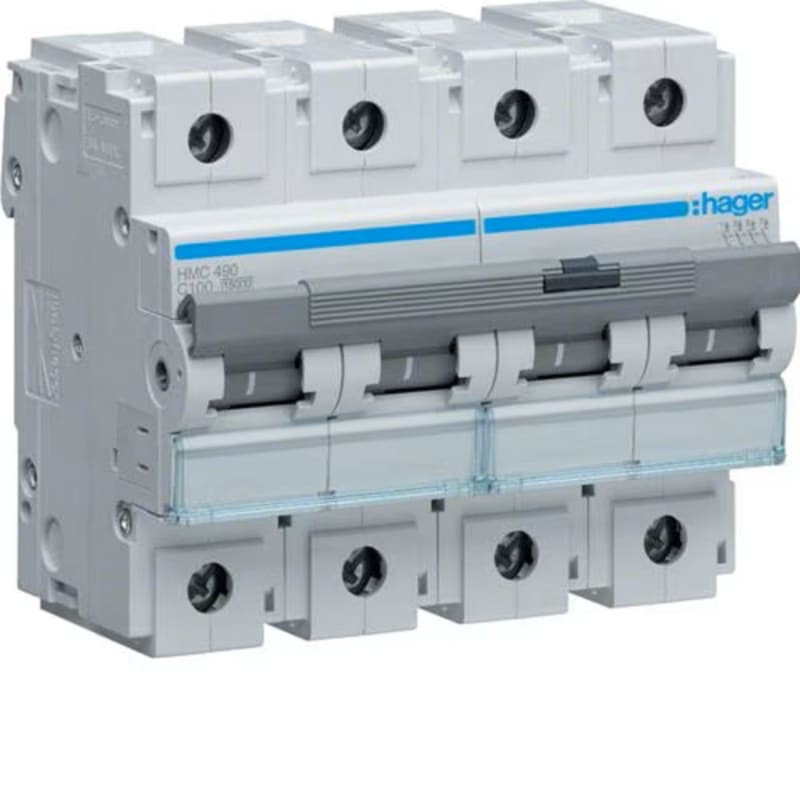

Miniature circuit breaker 4X100A, c-kar 15KA, 6-Mod
Part numberHMC490EAN / GTIN3250613230234HS code8536.90
Electrical Components
Miniature Circuit Breakers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Hager Systemer HMC490 Miniature circuit breaker 4x100A, c-kar 15kA, 6-mod.
Technical Specifications
- Manufacturer part number (MPN)
- HMC490
- EAN / GTIN
- 3250613230234
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Breaking capacity
- 15 kA
- Power loss
- 28.1 W
- Built-in depth
- 70 mm
- Release characteristic
- C
- Number of poles (total)
- 4
- Number of protected poles
- 4
- Rated current
- 100 A
- Rated voltage
- 415 V
- Rated insulation voltage Ui
- 500 V
- Rated impulse withstand voltage Uimp
- 6000 kV
- Frequency
- 50–60 Hz
- Current limiting class
- 3
- Concurrently switching neutral conductor
- No
- Overvoltage category
- 3
- Pollution degree
- 2
- Additional equipment possible
- Yes
- Width in number of modular spacings
- 6
- Degree of protection (IP)
- IP20
- Ambient temperature during operating
- -10–70 °C
- Connectable conductor cross section multi-wired
- -10–35 mm²
- Connectable conductor cross section solid-core
- -10–50 mm²
- Explosion-proof
- No
- Flush-mounted installation
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3250613230234
- SAP 1000286180
- Code 880450
Product Documentation
Document preview: Miniature circuit breaker 4X100A, c-kar 15KA, 6-Mod (HMC490) — Specification sheet
More from Hager Systemer
Hager Systemer
univers N kit, montplate data, H600XB250
UD41M1
Hager Systemer
Flat angle FOR LF/FB60110 White
LF6011059016
Hager Systemer
Isopor, VR10 round 275mm H=200
SEVR10200
Hager Systemer
Flat angle / L angle for LF 60X90 WHITE
LFF6009059016
Hager Systemer

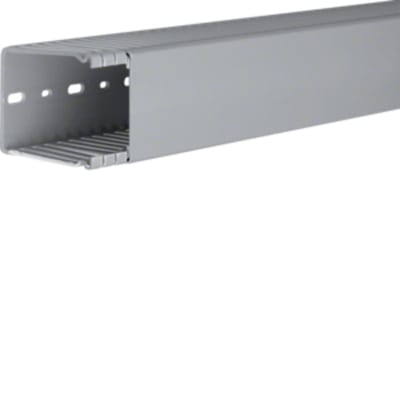

Slisset Cable Trunking 85X67MM L=2
BA68006007030B
Hager Systemer

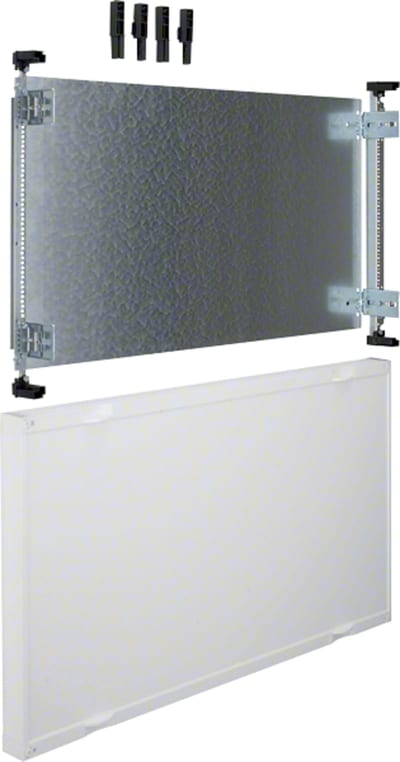

Sealed SYS.MOD.Mounting Plate.3H,3F
UD33C1
Hager Systemer

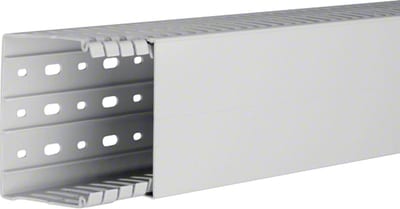

Slotted Trunking HALOGEN-FREE 40X100 L.GREY L=2M
HA740100
Hager Systemer

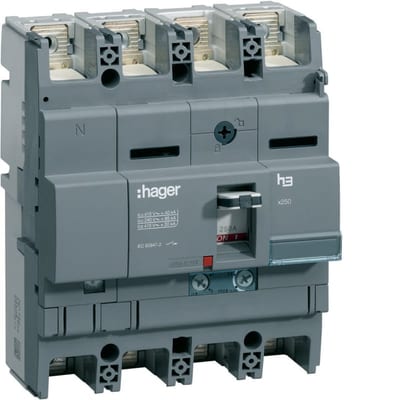

Circuit breaker TM 4X101-160A 40K
