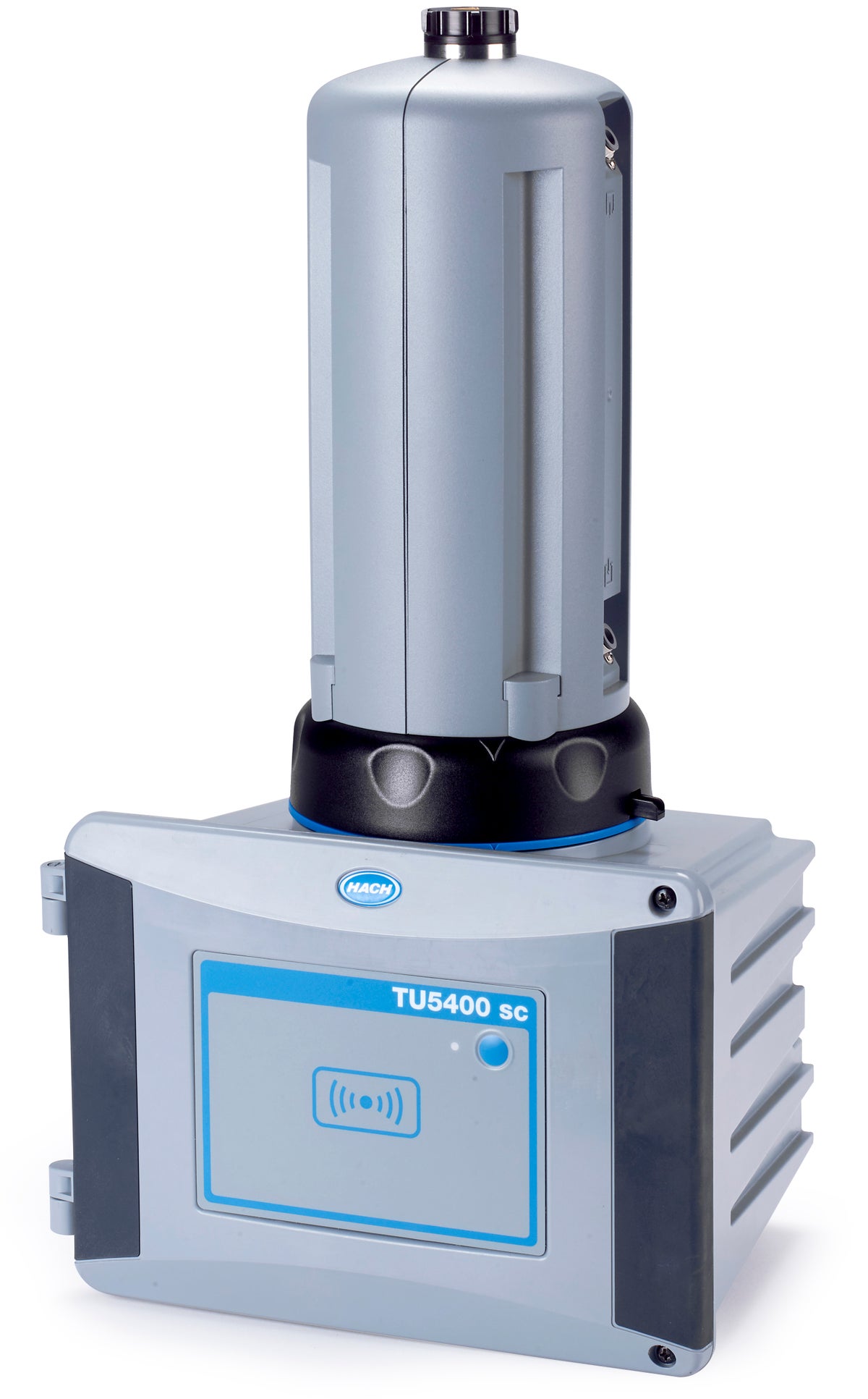

TU5400SC Turbibimeter with Flow Sensor, — ACM, System Check and RFID, ISO

Hach TU5400SC Turbibimeter with Flow Sensor, — ACM, System Check and RFID, ISO. Reference part number LXV445.99.53222.

Communication interface

RFID

Accuracy

±2% of reading plus 0.01 NTU from 0 - 40 NTU

Cable Length

1.6 m (5.25 ft), extendable up to 50 m (164 ft) for instrument without accessories

Calibration Method

For Formazin and Stablcal®; 20 NTU from 0 to 40 NTU; at 20 FNU and 600 NTU for full range; Custom calibration for up to 6-point calibrations

Certifications

CE compliant; US FDA accession number: 1420493-000 EPA version, 1420492-000 ISO version; Australian ACMA Marking

Communication

System Check & RFID

Controller

Sensor Only

Controller Compatibility

SC4500, SC1000, SC200

Dimensions (H x W x D)

249 mm x 268 mm x 190 mm

Enclosure Rating

Electronic compartment IP55; all other functional units IP65 with process head/ACM attached to the TU5300sc/TU5400sc instrument

Fitting Type

Sample quick connector: ¼-in. for ¼-in. tubing

Light Source

Class 2 laser product, with embedded 650 nm (EPA) or 850 nm (ISO), max. 1.0 mW Class 2 laser source (complies with IEC/EN 60825-1 and to 21 CFR 1040.10 in accordance with Laser Notice No. 50)

Lower Limit of Detection (LOD)

0.0001 FNU

Material

ASA S 777K / RAL7000, TPE RESIN Elastocon® STK40; Thermoplastic Elastomer TPS-SEBS

Model

TU5400sc

Mounting Configurations

Wall Mount

Operating Humidity

Relative humidity: 5 - 95% at different temperatures, non-condensing

Operating Temperature Range

0 - 50 °C

Options

Process Head with Flow Sensor and Automatic Cleaning Module

Range

ISO; 0 - 1000 NTU / FNU / TE/F / FTU; 0 - 250 EBC

Regulatory

ISO

Repeatability

Better than 1% of reading or ±0.0006 NTU on Formazin at 25 °C (77 °F), whichever is greater

Resolution

0.0001 NTU / FNU / TE/F / FTU / EBC

Response Time

T90 <30 seconds at 100 mL/min

Sample Flow Rate

100 - 1000 mL/min; optimal flow rate: 200 - 500 mL/min

Sample Pressure

6 bar (87 psi) maximum, compared to air at sample temperature range from 2 - 40 °C (35.6 - 104 °F)

Sample Temperature

2 - 60 °C (35 - 140 °F)

Signal Average Time

1 - 90 seconds

Storage Conditions

-40 - 60 °C (-40 - 140 °F)

Stray Light

<10 mNTU

System Check

Yes

Units

NTU, FNU, TE/F, FTU, EBC

Verification

Liquid: Stablcal®

Formazin (0.1 to 40 NTU); Dry

Glass Rod at<0.1 NTU

Warranty

12 months

Weight

5.95 lbs. (2.7 kg); 11 lbs. (5.0 kg) with all accessories

What's included

TU5400sc Turbidimeter, Automatic Cleaning Unit, User Manual, Wall Mount, Vial Replacement Tool, Screw Set, Drying Cartridge, Flow Regulator, Service Bracket, Flow Sensor

HS Code

9027.89
