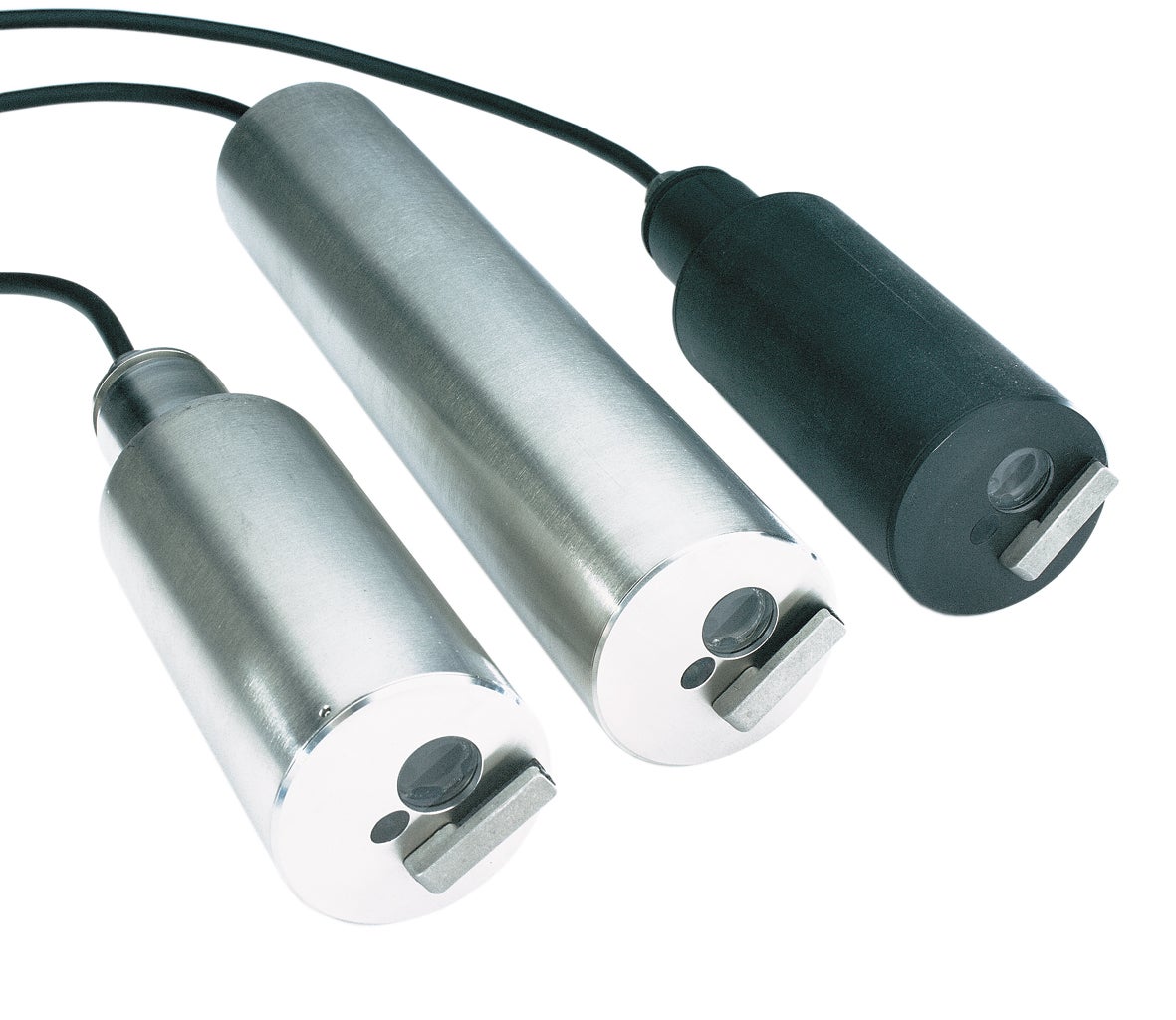

Solitax ts-line sc I PVC, with — automatic cleaning

Hach Solitax ts-line sc I PVC, with — automatic cleaning. Reference part number LXV423.99.10100.

Material

PVC

Accuracy

Turbidity up to 1000 NTU; without calibration < 5% of the measured value ±0.01 NTU; with calibration < 1% of the measured value ±0.01 NTU

Automatic Wiper

Yes

Body Material

PVC

Cable Length

10 m (33 ft) (optional extension cables available)

Calibration Method

Turbidity: Formazin or Stablcal Standard (at 800 NTU).; Suspended Solids: Sample specific, based on gravimetric TSS analysis with a correction factor procedure.

Certifications

CE

Controller

Sensor only

Controller Compatibility

SC4500, SC1000, SC200

Diameter Sensor

60 mm

Flow

Max. 3 m/s (the presence of air bubbles affects the measurement)

IP Rating

IP68

Length

200 mm

Maintenance Interval

1 h/month

Max. cable length Sensor-to-Controller

100

Measuring Principle

Infrared Duo scattered light technique for color-independent turbidity measurement. Turbidity in accordance with DIN EN ISO 7027 / TS equivalent DIN 38414

Model

Solitax ts-line sc

Mounting

Immersion

Operating Temperature Range

0 - 40 °C (32 - 104 °F)

Parameter

Suspended Solids, Turbidity

Pressure Range

PVC: <1 bar or <10 m

Range

TSS content: 0.001 mg/L - 50 g/L; Turbidity: 0.001 - 4000 NTU

Repeatability

TSS content: < 3%; Turbidity: < 1%

Response Time T90

1 - 300 s adjustable

Warranty

12 months

Weight

1.38 kg

What's included

Turbidity/Suspended Solids probe, user manual

HS Code

9027.89
