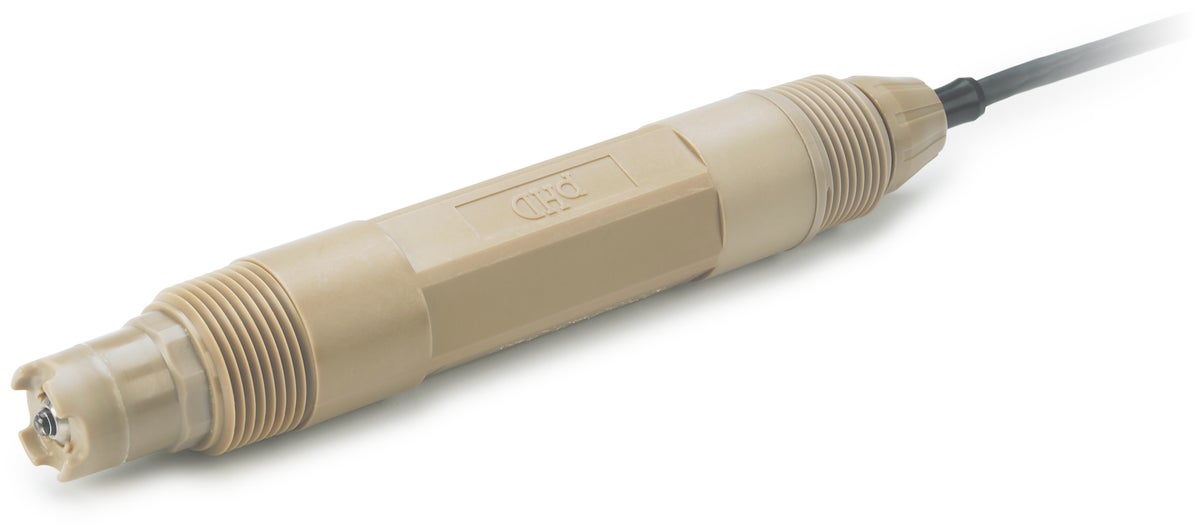

PHD Analog Ph-Probe PEEK Convertible

Hach PHD Analog Ph-Probe PEEK Convertible. Reference part number PD1P1.

Accuracy

± 0.02 pH

Body material

PEEK

Cable Connection

Analog

Cable Length

4.5 m 5-conductor (plus two isolated shields) cable with XLPE (cross-linked polyethylene) jacket; rated to 150 °C)

Calibration Method

Two point automatic, one point automatic, two point manual, one point manual.

Communication

MODBUS

Diameter

34.9 mm

Drift

0.03 pH per 24 hours, non-cumulative

Electrode Type

General Purpose

Flow

max. 3 m/s

Length

196.3 mm

Material

Ground Electrode: Titanium

Mounting

Convertible

Operating Temperature Range

-5 - 105 °C

Pressure Range

max. 10.7 bar sensor only (pressure range of mounting hardware to be checked separately)

Range

-2.0 - 14.0 pH

Repeatability

± 0.05 pH

Sensor Thread

1" NPT at both ends

Special Notes

pH-Wide Range

Temperature Accuracy

± 0.5 °C

Temperature Compensation

Automatic with NTC 300 Ω thermistor, or manually fixed at a user-entered temperature; additional selectable temperature correction factors (ammonia, morpholine, or user-defined pH/°C linear slope) available for pure water automatic compensation 0.0 - 50 °C

Temperature Sensor

NTC 300 Ohm thermistor for automatic temperature compensation and analyzer temperature readout

Warranty

0-12 months, full replacement; 13-18 months, sensor is replaced at approx. 1/3 current strip price (from date of shipment); 19-30 months, sensor is replaced at approx. 2/3 current strip price (from date of shipment)

Weight

0.9534 kg

What's included

Includes: sensor with 15 ft cable and manual

HS Code

9027.89
