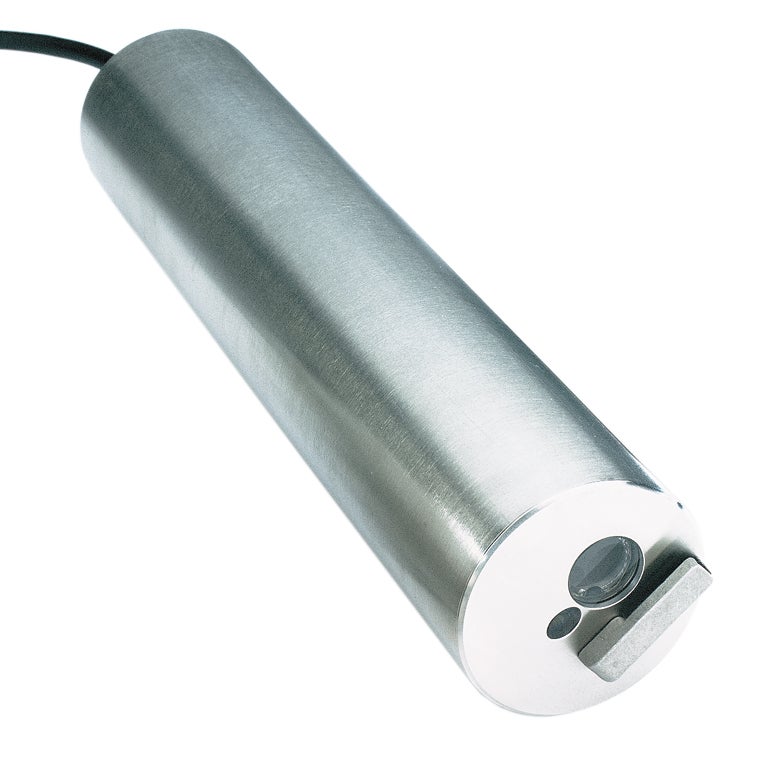

Solitax Inline sc — Automatic cleaning

Hach Solitax Inline sc — Automatic cleaning. Reference part number LXV424.99.00100.

Accuracy

Turbidity up to 1000 NTU; without calibration < 5% of the measured value ±0.01 NTU; with calibration < 1% of the measured value ±0.01 NTU

Automatic Wiper

Yes

Body Material

Stainless Steel

Cable Length

10 m (33 ft) (optional extension cables available)

Calibration Method

Turbidity: Formazin or Stablcal Standard (at 800 NTU).; Suspended Solids: Sample specific, based on gravimetric TSS analysis with a correction factor procedure.

Certifications

CE, MCERTS

Controller

Sensor only

Controller Compatibility

SC4500, SC1000, SC200

Diameter Sensor

60 mm

Flow

Max. 3 m/s (the presence of air bubbles affects the measurement)

IP Rating

IP68

Length

315 mm

Maintenance Interval

1 h/month

Material

Optics carrier and sleeve: stainless steel 1.4571; Wiper arm: stainless steel 1.4581; Wiper rubber: silicone rubber (standard); Optional: FKM/FPM (LZX578); Wiper shaft: stainless steel 1.4571

Max. cable length Sensor-to-Controller

100

Measuring Principle

Infrared Duo scattered light technique for color-independent; turbidity measurement Turbidity in accordance with; DIN EN ISO 7027 / TS equivalent DIN 38414

Model

Solitax inline sc

Mounting

Insertion

Operating Temperature Range

0 - 40 °C (32 - 104 °F)

Parameter

Suspended Solids, Turbidity

Pressure Range

Stainless steel insertion sensor: <6 bar or <60 m (87 psi)

Range

TSS content: 0.001 mg/L - 50 g/L; Turbidity: 0.001 - 4000 NTU

Repeatability

TSS content: < 3%; Turbidity: < 1%

Response Time T90

1 - 300 s adjustable

Special Notes

Installation note; Distance sensor-wall; > 50 cm (Turbidity)

Warranty

12 months

Weight

Insertion stainless steel: 2.4 kg (5.29 lb.)

What's included

Turbidity/Suspended Solids probe, user manual

HS Code

9027.89
