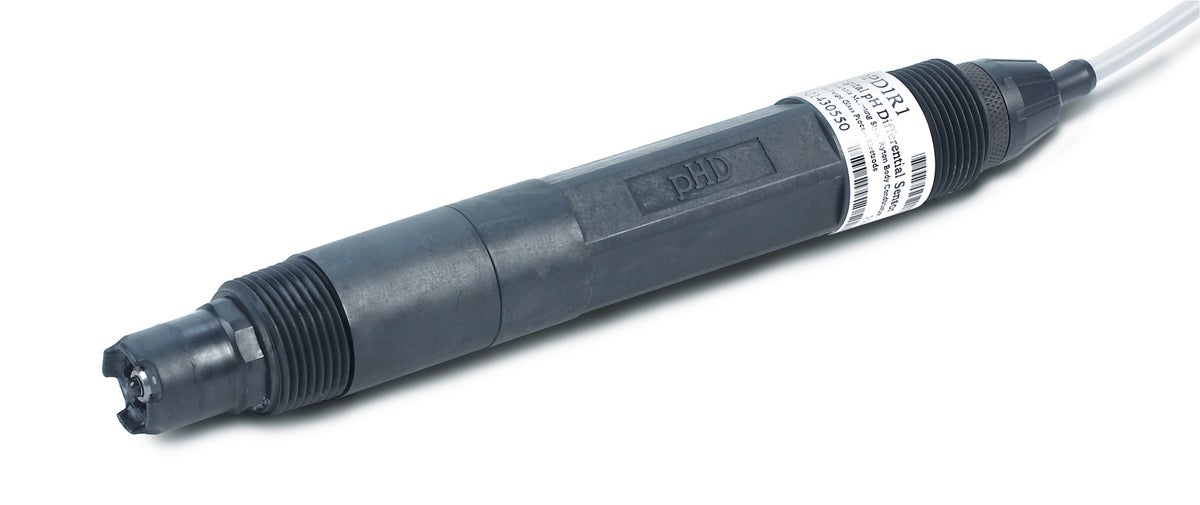

pHD sc pH-probe Ryton Convertible DPD1R1

Hach pHD sc pH-probe Ryton Convertible DPD1R1.

Accuracy

± 0.02 pH

Body material

PPS

Cable Connection

Digital

Cable Length

10 m PUR (polyurethane) 4-conductor with one shield, rated to 105°C

Calibration Method

Two point automatic, one point automatic, two point manual, one point manual.

Communication

Modbus

Compliance

Hazardous location, Maritime, CE

Drift

0.03 pH per 24 hours, non-cumulative

Electrode Type

General Purpose

Flow Rate

3 m (10 ft.) per second, maximum

Length

271.3 mm

Mounting

Convertible

Operating Temperature Range

-5 - 70 °C (23 - 158 °F) pHD and ORP; 0 - 50 °C (32 - 122 °F) SS pHD; Before initial pH calibration, calibrate the temperature measurement when the sensor is in water or buffer which is at approximately the same temperature as the pH buffers (matches current recommendation)

Pressure Range

Maximum 10.7 bar . 6.9 bar for Digital Sensor at 70°C, and 6.9 bar for Analog Sensor at 105°C.

Range

-2.0 to 14.0 pH

Repeatability

± 0.05 pH

Sensitivity

± 0.01 pH

Sensor Cable

10 m (33 ft.) polyurethane, 4-conductor cable with one shield, rated to 105°C (221°F)

Sensor Thread

1" NPT

Storage Conditions

4 - 70 °C, 0 - 95% relative humidity (non-condensing)

Temperature Accuracy

± 0.5 °C (± 0.9 °F)

Temperature Compensation

Automatic with NTC 300 Ω thermistor, or manually fixed at a user-entered temperature; additional selectable temperature correction factors (ammonia, morpholine, or user-defined pH/°C linear slope) available for pure water automatic compensation 0.0 - 50 °C

Temperature Sensor

NTC 300 Ω thermistor for automatic temperature compensation and analyzer temperature readout

Transmission Distance

100 m (328 ft.), maximum; 1000 m (3280 ft.), maximum when used with a termination box.

Warranty

0-12 months, full replacement; 13-18 months, sensor is replaced at approx. 1/3 current strip price (from date of shipment); 19-30 months, sensor is replaced at approx. 2/3 current strip price (from date of shipment)

Weight

0.316 kg

What's included

Includes: sensor with 33 ft cable and manual

HS Code

9027.89
