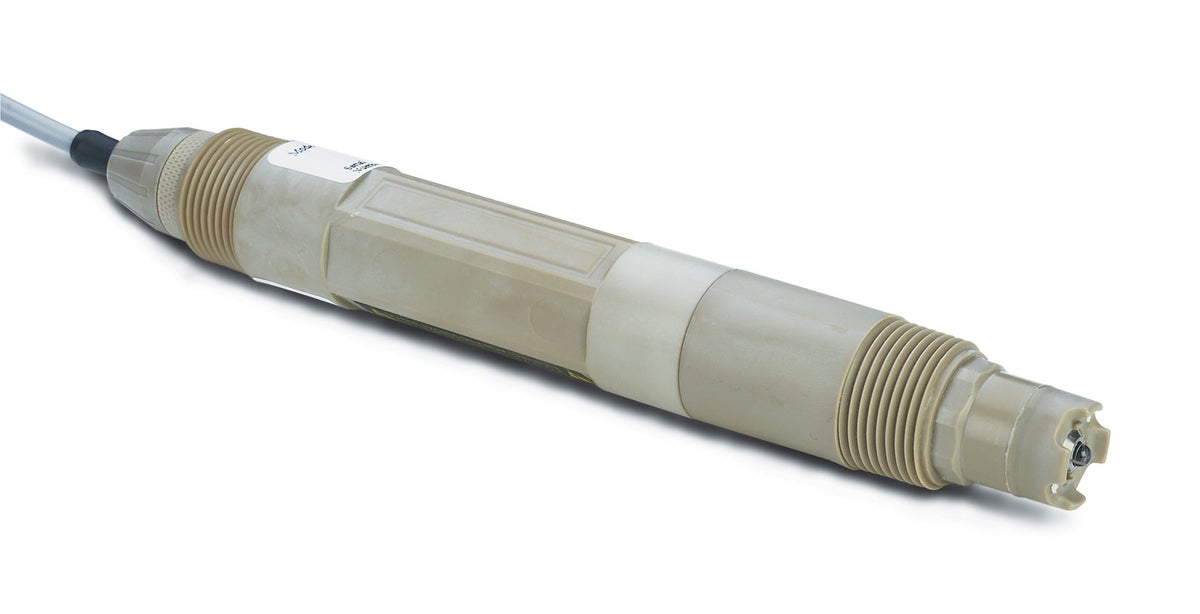

pHD sc pH-probe PEEK Convertible — 10M digital cable
Pricing
Request a quote
We reply within 24 hours
Product Description
Hach pHD sc pH-probe PEEK Convertible — 10M digital cable. Reference part number DPD1P1.
Technical Specifications
- Accuracy
- ± 0.02 pH
- Body material
- PEEK
- Cable Connection
- Digital
- Cable Length
- 10m (33 ft.)
- Calibration Method
- Two point automatic, one point automatic, two point manual, one point manual
- Communication
- Modbus
- Compliance
- Hazardous location, Maritime, CE
- Drift
- 0.03 pH per 24 hours, non-cumulative
- Electrode Type
- General Purpose
- Flow Rate
- 3 m (10 ft.) per second, maximum
- Length
- 271.3 mm
- Mounting
- Convertible
- Operating Temperature Range
- -5 - 70 °C (23 - 158 °F) pHD and ORP; 0 - 50 °C (32 - 122 °F) SS pHD; Before initial pH calibration, calibrate the temperature measurement when the sensor is in water or buffer which is at approximately the same temperature as the pH buffers (matches current recommendation)
- Pressure Range
- Maximum 10.7 bar. 6.9 bar for Digital Sensor at 70°C, and 6.9 bar for Analog Sensor at 105°C.
- Range
- -2.0 to 14.0 pH
- Repeatability
- ± 0.05 pH
- Sensitivity
- ± 0.01 pH
- Sensor Cable
- 10 m (33 ft.) polyurethane, 4-conductor cable with one shield, rated to 105°C (221°F)
- Sensor Thread
- 1" NPT
- Storage Conditions
- 4 - 70°C, 0 - 95% relative humidity (non-condensing)
- Temperature Accuracy
- ± 0.5 °C (± 0.9 °F)
- Temperature Compensation
- Automatic with NTC 300 Ω thermistor, or manually fixed at a user-entered temperature, additional selectable temperature correction factors (ammonia, morpholine, or user-defined pH/°C linear slope) available for pure water automatic compensation 0.0 - 50 °C
- Temperature Sensor
- NTC 300 Ω thermistor for automatic temperature compensation and analyzer temperature readout
- Transmission Distance
- 100 m (328 ft.), maximum; 1000 m (3280 ft.), maximum when used with a termination box.
- Warranty
- 0-12 months, full replacement; 13-18 months, sensor is replaced at approx. 1/3 current strip price (from date of shipment); 19-30 months, sensor is replaced at approx. 2/3 current strip price (from date of shipment)
- Weight
- 0.316 kg
Standards & Compliance
- HS Code
- 9027.89
Product Documentation
