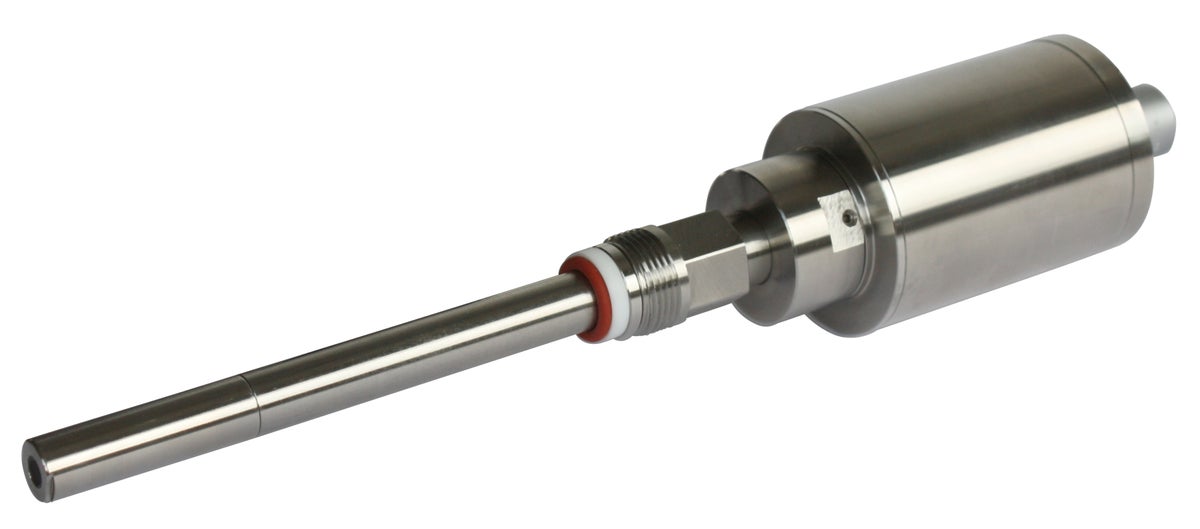

M1100 Luminescent oxygen sensor, in-line — 0-2000 ppb, 12mm standard fitting

Hach M1100 Luminescent oxygen sensor, in-line — 0-2000 ppb, 12mm standard fitting. Reference part number M1100-S10.

Accuracy

± 0.8 ppb or 2 % whichever is greater

Ambient Temperature

-5 - 100 °C (23 - 212 °F)

Application

Beverage (bypass)

Calibration

Single point zero calibration

Certifications

2004/108/EC - EN 61326-1

Display Resolution

0.1 ppb

Fitting Type

12 mm fitting

Flow Rate

50 - 300 mL/min

IP Rating

Sensor resistant to all common CIP methods

Lower Limit of Detection (LOD)

0.6 ppb

Material

316 L Stainless Steel (1.4435), Silicone

Operating Conditions

0 - 95 % non-condensing relative humidity

Parameter

Oxygen

Power Supply

Universal 85-264 VAC @, 25 VA, 10-36 VDC, 25 W

Range

0 - 2000 ppb DO (dissolved oxygen)

Repeatability

± 0.4 ppb or 1 % whichever is greater

Reproducibility

± 0.8 ppb or 2 % whichever is greater

Response Time

(90%)< 10 s (gas phase); (90%)< 30 s (beer process)

Sample Pressure

1 - 20 bar absolute

Temperature Range

Accurate from -5 - 50 °C (23 - 122 °F); Resistant - temperature from -5 - 100 °C (23 - 212 °F)

Warranty

12 months

Weight

M1100 12 mm: 0.6 kg; M1100 28 mm: 0.74 kg

Wetted Materials

316 L Stainless Steel (1.4435), Silicone

What's included

M1x00 sensor only, 410 or 510 controller, sensor cable, flow-chamber or process connection, must be ordered separately.

HS Code

9027.89
