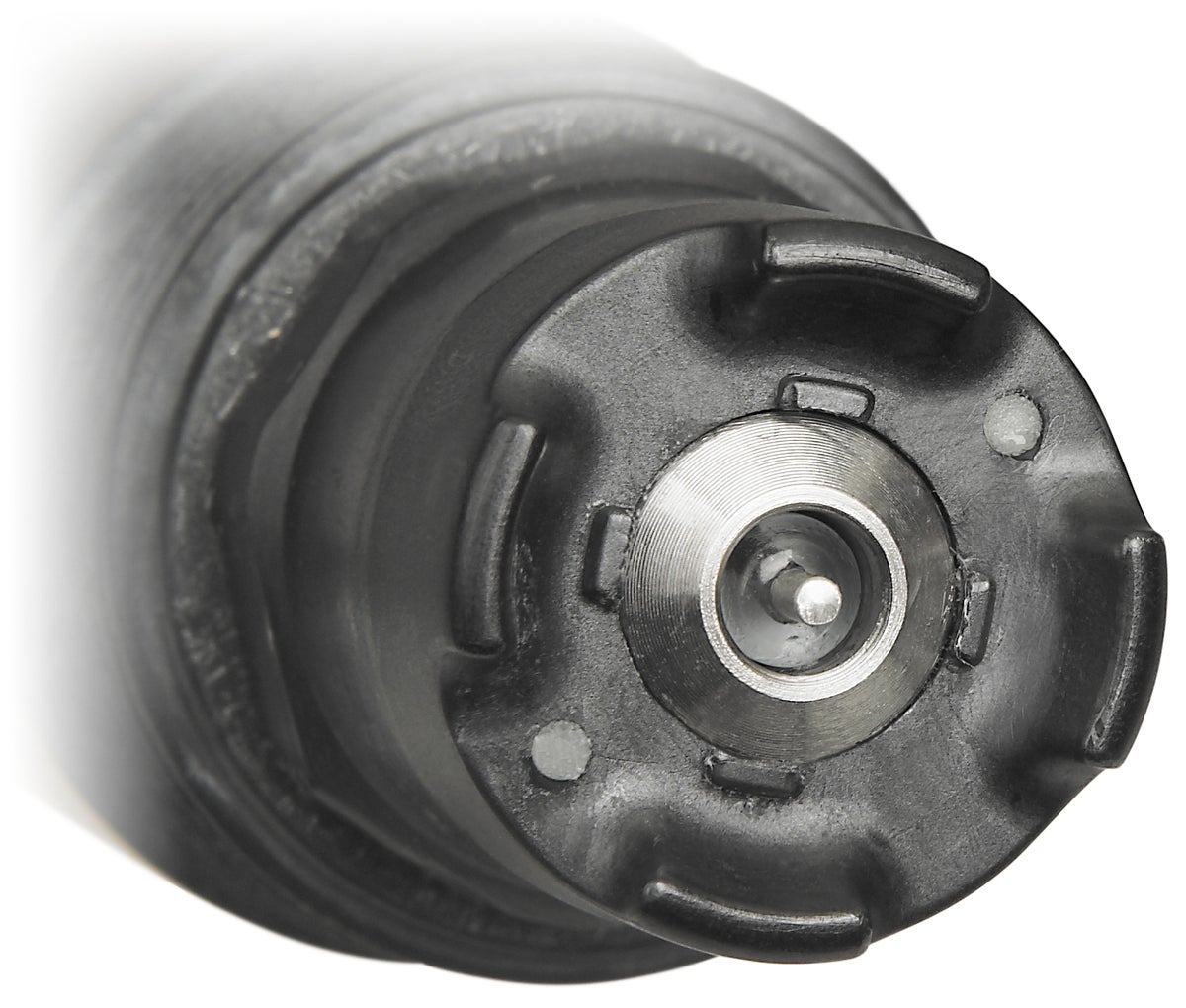

PHD Digital ORP Sensor, PPS/ RYTON Gold — Special Gold Electrode, Convertible

Hach PHD Digital ORP Sensor, PPS/ RYTON Gold — Special Gold Electrode, Convertible. Reference part number DRD1R6.

Body material

PPS

Cable Connection

Digital

Cable Length

10 m (33 ft)

Compliance

Hazardous location, Maritime, CE

Electrode Material

Gold

Electrode Type

Specialty - Gold

Flow

3 m (10 ft.) per second, maximum

Mounting

Convertible

Operating Temperature Range

–5 to 70 °C (23 to 158 °F) pHD and ORP; Before initial pH calibration, calibrate the temperature measurement when the sensor is in water or buffer which is at approximately the same temperature as the pH buffers.

Range

-1500 to +1500 mV ORP

Sensitivity

± 0.5 mV

Sensor Cable

Integral; 4 conductor cable with one shield and polyurethane jacket; rated to 105 °C (221 °F); 10 m (33 ft.) standard length

Sensor Type

Digital

Temperature Accuracy

± 0.5 °C (± 0.9 °F)

Temperature Sensor

Sensor Pressure/Temperature Limits; Digital: 6.9 bar

Transmission Distance

100 m (328 ft.), maximum; 1000 m (3280 ft.), maximum when used with a termination box

Warranty

0-12 months, full replacement; 13-18 months, sensor is replaced at approx. 1/3 current strip price (from date of shipment); 19-30 months, sensor is replaced at approx. 2/3 current strip price (from date of shipment)

What's included

Includes: sensor with 33 ft cable and manual

HS Code

9027.89
