Product Description

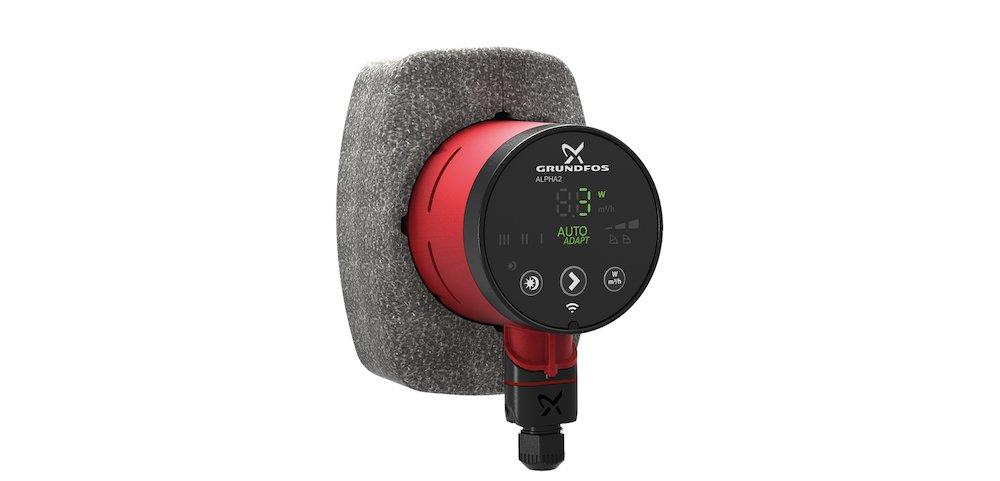

Grundfos ALPHA2 Circulation pump 25-40. Circulation pumps for heating and cooling (Plumbing / Heat / Pumps for heating and domestic water). Principal data: connection thread 1 1/2", lifting height max 4 m, installation dimension 130 mm. Supplied under manufacturer part number 99411143, EAN 5713828674753, HS code 8413.70, country of origin Denmark.
Technical Specifications
- Product type
- Circulation pumps for heating and cooling
- Product group
- Heat
- Connection thread
- 1 1/2"
- Lifting height max
- 4 m
- Installation dimension
- 130 mm
- Housing material
- Cast iron
- Power consumption
- 18 W
- Application range
- Heating/cooling
- Media temperature min
- 2 °C
- Media temperature max
- 110 °C
- Ambient temperature max
- 40 °C
- Leakage class
- X4D
- Supply voltage
- 230 V AC
- Energy efficiency index (EEI)
- 0.15 EEI
- Working pressure max
- 10 bar
- Flow max
- 2.5 m³/h
- Depth
- 140 mm
- Height
- 130 mm
- Color
- Red
- Weight
- 1.89 kg
- Carbon footprint (EPD)
- 12.5000 kg CO2e per pcs
- Environmental declaration
- EPD third-party verified
- Country of origin
- Denmark
- Customs tariff code (EU CN)
- 84137030
- HS code
- 8413.70
- Manufacturer part number
- 99411143
- GTIN (EAN)
- 5713828674753
- VVS number
- 380473140
Standards & Compliance
- HS Code
- 8413.70
Cross References
- MPN 99411143
- EAN 5713828674753
- VVS 380473140
