Product Description

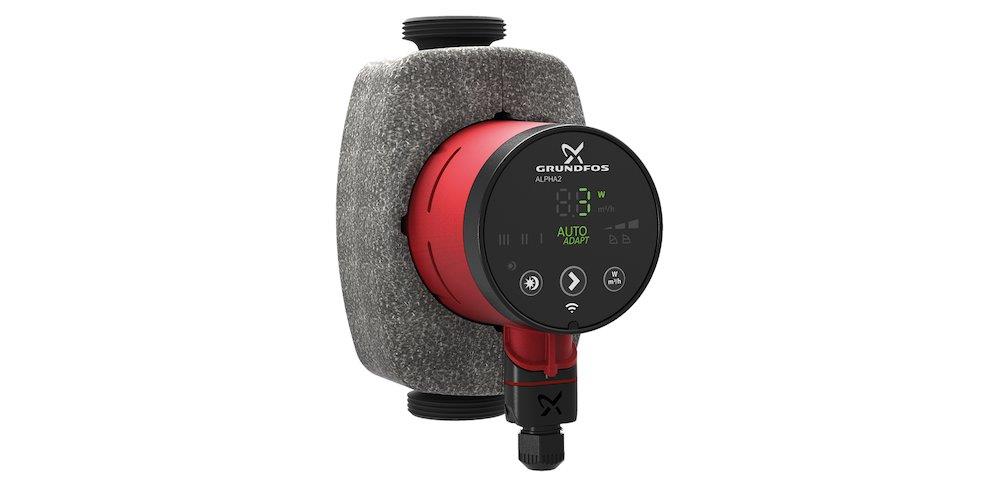

Grundfos ALPHA2 Circulation pump 25-60. Circulation pumps for heating and cooling (Plumbing / Heat / Pumps for heating and domestic water). Principal data: connection thread 1 1/2", lifting height max 6 m, installation dimension 180 mm. Supplied under manufacturer part number 99411175, EAN 5713828675248, HS code 8413.70, country of origin Denmark.
Technical Specifications
- Product type
- Circulation pumps for heating and cooling
- Product group
- Heat
- Connection thread
- 1 1/2"
- Lifting height max
- 6 m
- Installation dimension
- 180 mm
- Housing material
- Cast iron
- Power consumption
- 34 W
- Application range
- Heating/cooling
- Media temperature min
- 2 °C
- Media temperature max
- 110 °C
- Ambient temperature max
- 40 °C
- Leakage class
- X4D
- Supply voltage
- 230 V AC
- Energy efficiency index (EEI)
- 0.17 EEI
- Working pressure max
- 10 bar
- Flow max
- 3.4 m³/h
- Depth
- 140 mm
- Height
- 180 mm
- Color
- Red
- Weight
- 2.01 kg
- Carbon footprint (EPD)
- 12.5000 kg CO2e per pcs
- Environmental declaration
- EPD third-party verified
- Country of origin
- Denmark
- Customs tariff code (EU CN)
- 84137030
- HS code
- 8413.70
- Manufacturer part number
- 99411175
- GTIN (EAN)
- 5713828675248
- VVS number
- 380473260
Standards & Compliance
- HS Code
- 8413.70
Cross References
- MPN 99411175
- EAN 5713828675248
- VVS 380473260
Product Documentation
More from Grundfos
Grundfos
Grundfos Unilift APG Drain Pump 40.10.3 without plug - None, 3PCS, 15000mm, 10M
92616893
Grundfos
Grundfos Cable Assembly Set - 10072815
116251
Grundfos
Grundfos SEG Drain Pump - DN40/50, 20700mm
96878509
Grundfos
Grundfos TP Circulation pump 40-180/2 - 40, 250mm, 18M
98133671
Grundfos

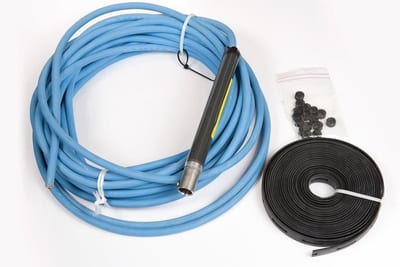

Grundfos Submersible Cable with joint set - 45M
96737348
Grundfos

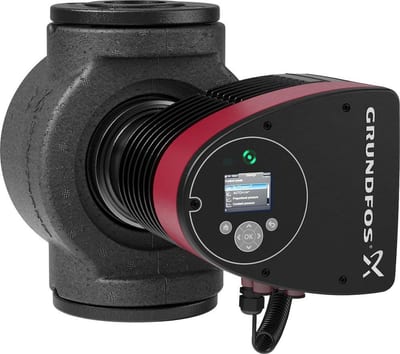

Grundfos MAGNA3 Circulation pump 40-180 F - 40, 18M, 250mm
