Product Description

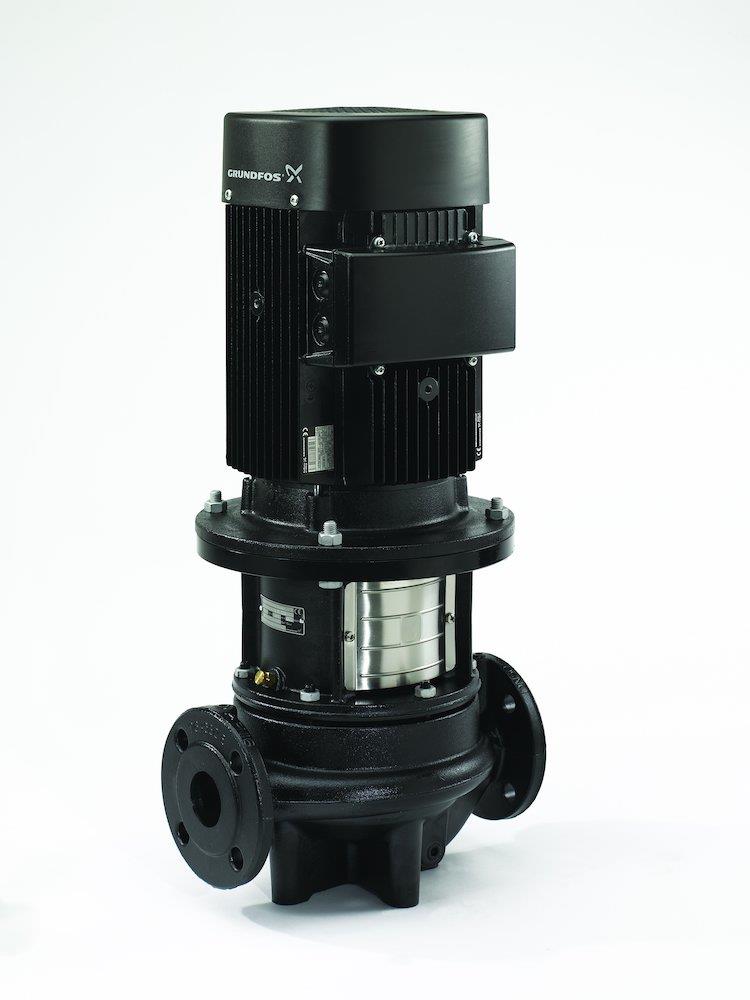

Grundfos TP Circulation pump 40-180/2. Circulation pumps for heating and cooling (Plumbing / Heat / Pumps for heating and domestic water). Principal data: dn dimension 40, installation dimension 250 mm, lifting height max 18 m. Supplied under manufacturer part number 98133671, EAN 5711490225617, HS code 8413.70, country of origin Germany.
Technical Specifications
- Product type
- Circulation pumps for heating and cooling
- Product group
- Heat
- DN dimension
- 40
- Installation dimension
- 250 mm
- Lifting height max
- 18 m
- Shaft sealing type
- BQQE
- Shaft diameter
- 16 mm
- Power
- 0.55 kW
- Housing material
- Cast iron
- Media temperature min
- -25 °C
- Media temperature max
- 120 °C
- Ambient temperature max
- 60 °C
- Leakage class
- IP55
- Working pressure max
- 10 bar
- Color
- Black
- Depth
- 390.1 mm
- Weight
- 23.1 kg
- Carbon footprint (EPD)
- 227.8676 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84137059
- HS code
- 8413.70
- Manufacturer part number
- 98133671
- GTIN (EAN)
- 5711490225617
- VVS number
- 381812180
Standards & Compliance
- HS Code
- 8413.70
Cross References
- MPN 98133671
- EAN 5711490225617
- VVS 381812180
