Product Description

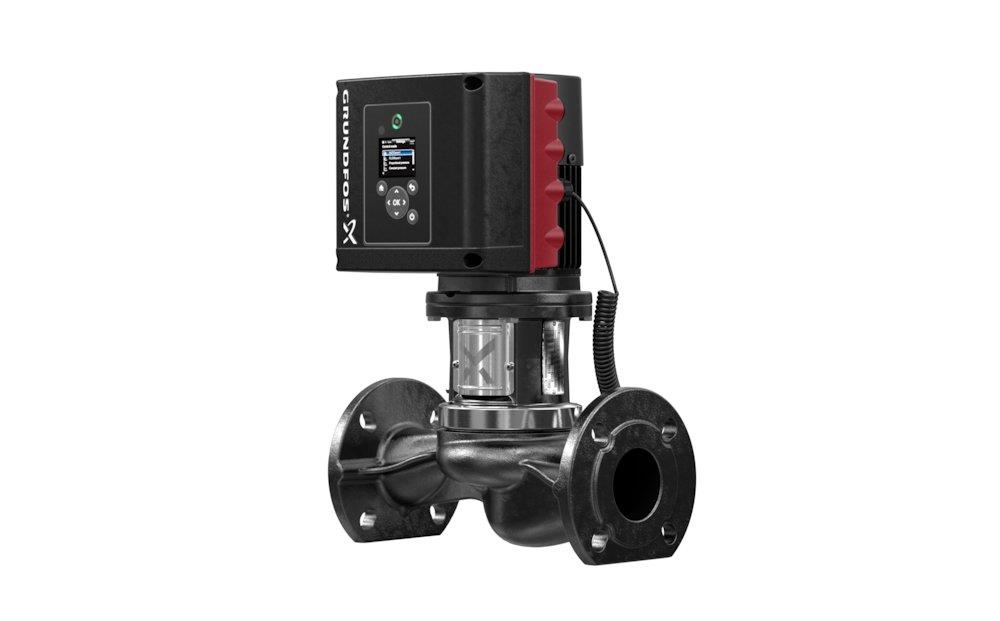

Grundfos TPE3 Circulation pump 100-40. Circulation pumps for heating and cooling (Plumbing / Heat / Pumps for heating and domestic water). Principal data: dn dimension 100, installation dimension 450 mm, lifting height max 4 m. Supplied under manufacturer part number 99272181, HS code 9028.30, country of origin Denmark.
Technical Specifications
- Product type
- Circulation pumps for heating and cooling
- Product group
- Heat
- DN dimension
- 100
- Installation dimension
- 450 mm
- Lifting height max
- 4 m
- Shaft sealing type
- BQQE
- Power
- 0.25 kW
- Housing material
- Cast iron
- Application range
- Heating/cooling
- Media temperature min
- -25 °C
- Media temperature max
- 120 °C
- Ambient temperature max
- 50 °C
- Leakage class
- IP55
- Supply voltage
- 1 x 200-240 V AC
- Working pressure max
- 16 bar
- Flow max
- 24.4 m³/h
- Color
- Black/red
- Depth
- 505.7 mm
- Weight
- 36.8 kg
- Carbon footprint (EPD)
- 4.5167 kg CO2e per pcs
- Country of origin
- Denmark
- Customs tariff code (EU CN)
- 90283090
- HS code
- 9028.30
- Manufacturer part number
- 99272181
- VVS number
- 381615040
Standards & Compliance
- HS Code
- 9028.30
Cross References
- MPN 99272181
- VVS 381615040
