Product Description
Graco Husky 2150 air-operated double diaphragm (AODD) pump, part number DFC777, aluminium fluid section and aluminium center section, with Buna-N seats, Buna-N balls and a Buna-N diaphragm. Fluid ports are 2 in. (50.8 mm) BSPT, end port. Maximum free-flow delivery 150 gpm (568 lpm) at up to 120 psi (8.27 bar) fluid pressure.
Technical Specifications
- Brand
- Graco
- Range
- Husky 2150 (air-operated double diaphragm), 2 in.
- Part number
- DFC777
- Fluid section material
- aluminium
- Center section material
- aluminium
- Seat material
- Buna-N
- Ball material
- Buna-N
- Diaphragm material
- Buna-N
- Manifold configuration
- end port
- Maximum fluid working pressure
- 120 psi (8.27 bar)
- Maximum free-flow delivery
- 150 gpm (568 lpm)
- Maximum pump speed
- 145 cpm
- Maximum size pumpable solids
- 0.25 in (6.35 mm)
- Maximum operating temperature (Graco product page)
- 150 degF (66 degC)
- Maximum air consumption
- 175 scfm
- Maximum air pressure
- 120 psi (8.27 bar)
- Air inlet size
- 1/2 npt(f)
- Fluid inlet and outlet size
- 2 in (50.8 mm) bspt(m)
- Standards met
- ATEX, CE
Standards & Compliance
- Material
- Aluminium (fluid section)
- Thread Standard
- BSPT
- Pressure Rating
- 120 psi (8.27 bar)
- Temperature Range
- Maximum operating temperature 150 degF (66 degC) per the Graco product page
- HS Code
- 8413.81
Compatibility & Fitment
Husky 2150 series, 2 in. metal/plastic AODD pump. Seat, ball and diaphragm materials are selected by configuration; confirm fluid compatibility before ordering.
Product Documentation
More from Graco
Graco
Graco Husky 2150 air-operated double diaphragm pump, aluminium, 2 in. BSPT, Fluoroelastomer seats, Fluoroelastomer balls, Fluoroelastomer diaphragm
DFC888
Graco
Graco Husky 2150 air-operated double diaphragm pump, aluminium, 2 in. BSPT, Polypropylene seats, PTFE balls, PTFE/EPDM 2-Piece diaphragm
DFC911
Graco
Graco Husky 2150 air-operated double diaphragm pump, aluminium, 2 in. BSPT, Polypropylene seats, Buna-N balls, Buna-N diaphragm
DFC977
Graco

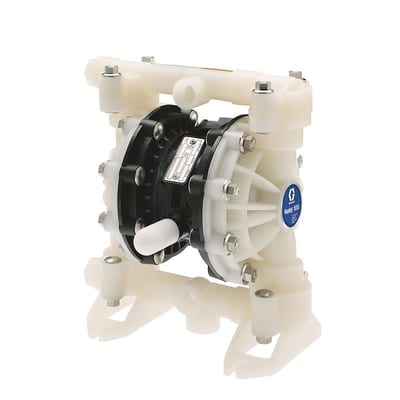

Graco Husky 515 air-operated double diaphragm pump, acetal, 1/2 in. NPT, Acetal seats, Buna-N balls, Buna-N diaphragm
