Graco 24N094 Husky 515 air-operated double diaphragm pump, polypropylene, 1/2 in. BSPT, Polypropylene seats, PTFE balls, PTFE Overmold diaphragm
Graco · Pumps · Diaphragm

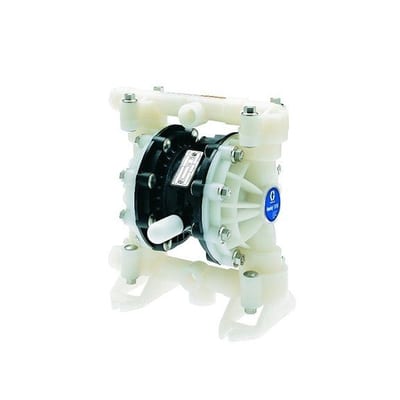

Graco Husky 515 air-operated double diaphragm (AODD) pump, part number 24N094, polypropylene fluid section and polypropylene center section, with Polypropylene seats, PTFE balls and a PTFE Overmold diaphragm. Fluid ports are 1/2 in. (12.7 mm) BSPT, center port. Maximum free-flow delivery 15 gpm (57 lpm) at up to 100 psi (7 bar) fluid pressure.
Specifications
- Part number
- 24N094
- HS code
- 8413.81
- Material
- Polypropylene (fluid section)
- Pressure rating
- 100 psi (7 bar)
- Temperature range
- Maximum operating temperature 150 degF (66 degC) per the Graco product page
- Thread standard
- BSPT
Compatibility
Husky 515 series, 1/2 in. plastic AODD pump. The next size up is the 3/4 in. Husky 716. Seat, ball and diaphragm materials are selected by configuration; confirm fluid compatibility before ordering.
Standards
Approvals
