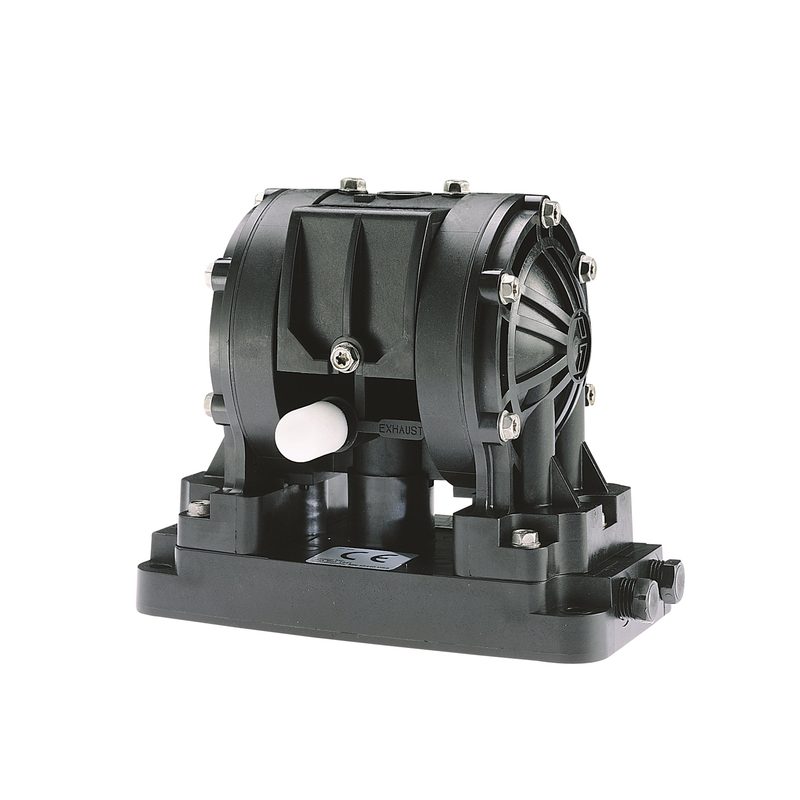

Graco D21021 Husky 205 air-operated double diaphragm pump, acetal, remote center section, 1/4 in. NPT, BSPT, Acetal seats, PTFE balls, PTFE/EPDM 2-Piece diaphragm
Graco · Pumps · Diaphragm
Graco Husky 205 air-operated double diaphragm (AODD) pump, part number D21021, acetal fluid section with a remote center section, with Acetal seats, PTFE balls and a PTFE/EPDM 2-Piece diaphragm. Fluid ports are 1/4 in. (6.35 mm) NPT, BSPT, end port. Maximum free-flow delivery 5 gpm (18.9 lpm) at up to 100 psi (7 bar) fluid pressure.
Specifications
- Part number
- D21021
- HS code
- 8413.81
- Material
- Acetal (fluid section)
- Pressure rating
- 100 psi (7 bar)
- Temperature range
- Maximum operating temperature 180 degF (82 degC) per the Graco product page
- Thread standard
- NPT, BSPT
Compatibility
Husky 205 series, 1/4 in. air-operated double diaphragm pump — the smallest pump in the Husky AODD range; the next size up is the 3/8 in. Husky 307. Integral and remote center-section configurations carry different maximum operating temperatures; seat, ball and diaphragm materials are selected by configuration. Confirm fluid compatibility before ordering.
