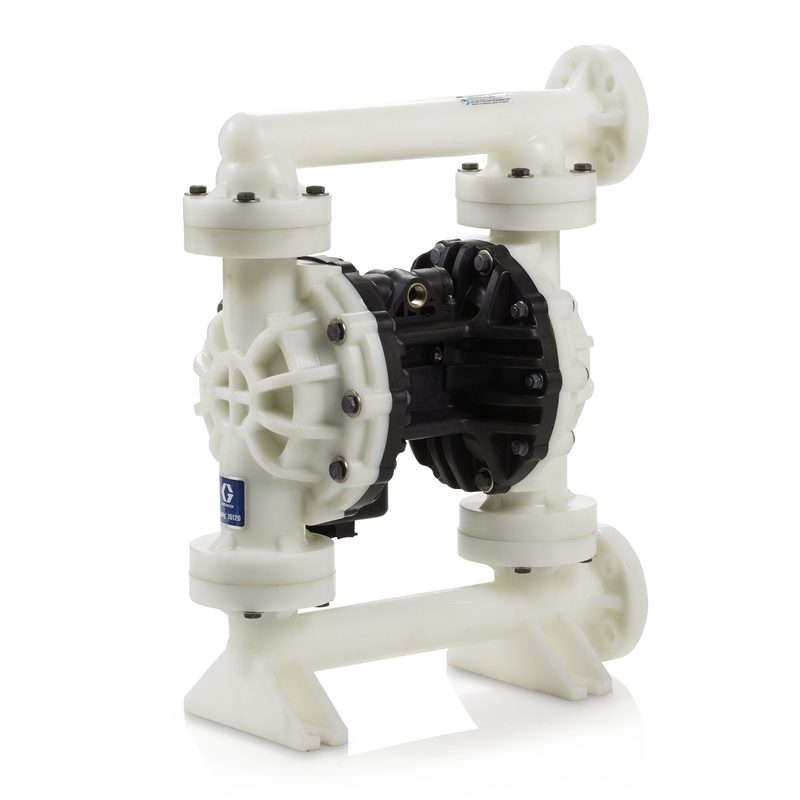

Graco 654500 Husky 15120 air-operated double diaphragm pump, polypropylene, center port manifold, 1-1/2 in. (Center Port), Polypropylene seats, Santoprene balls, Santoprene diaphragm
Graco · Pumps · Diaphragm
Graco Husky 15120 air-operated double diaphragm (AODD) pump, part number 654500, polypropylene fluid section with polypropylene center section and a center port manifold, with Polypropylene seats, Santoprene balls and a Santoprene diaphragm. Fluid ports are 1-1/2 in. (38.1 mm), Center Port configuration. Maximum free-flow delivery 120 gpm (454 lpm) at up to 125 psi (8.6 bar) fluid pressure.
Specifications
- Part number
- 654500
- HS code
- 8413.81
- Material
- Polypropylene (fluid section)
- Pressure rating
- 125 psi (8.6 bar)
- Temperature range
- 32 to 150 degF (0 to 66 degC) per the Graco product page
Compatibility
Husky 15120 series, 1-1/2 in. air-operated double diaphragm pump (120 gpm / 454 lpm class). Center-port and end-port manifold configurations are not interchangeable; seat, ball and diaphragm materials are selected by fluid compatibility. Fluid connections are available NPT or BSPT. Confirm fluid compatibility before ordering.
Standards
Approvals
